Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 10.15
Parts List

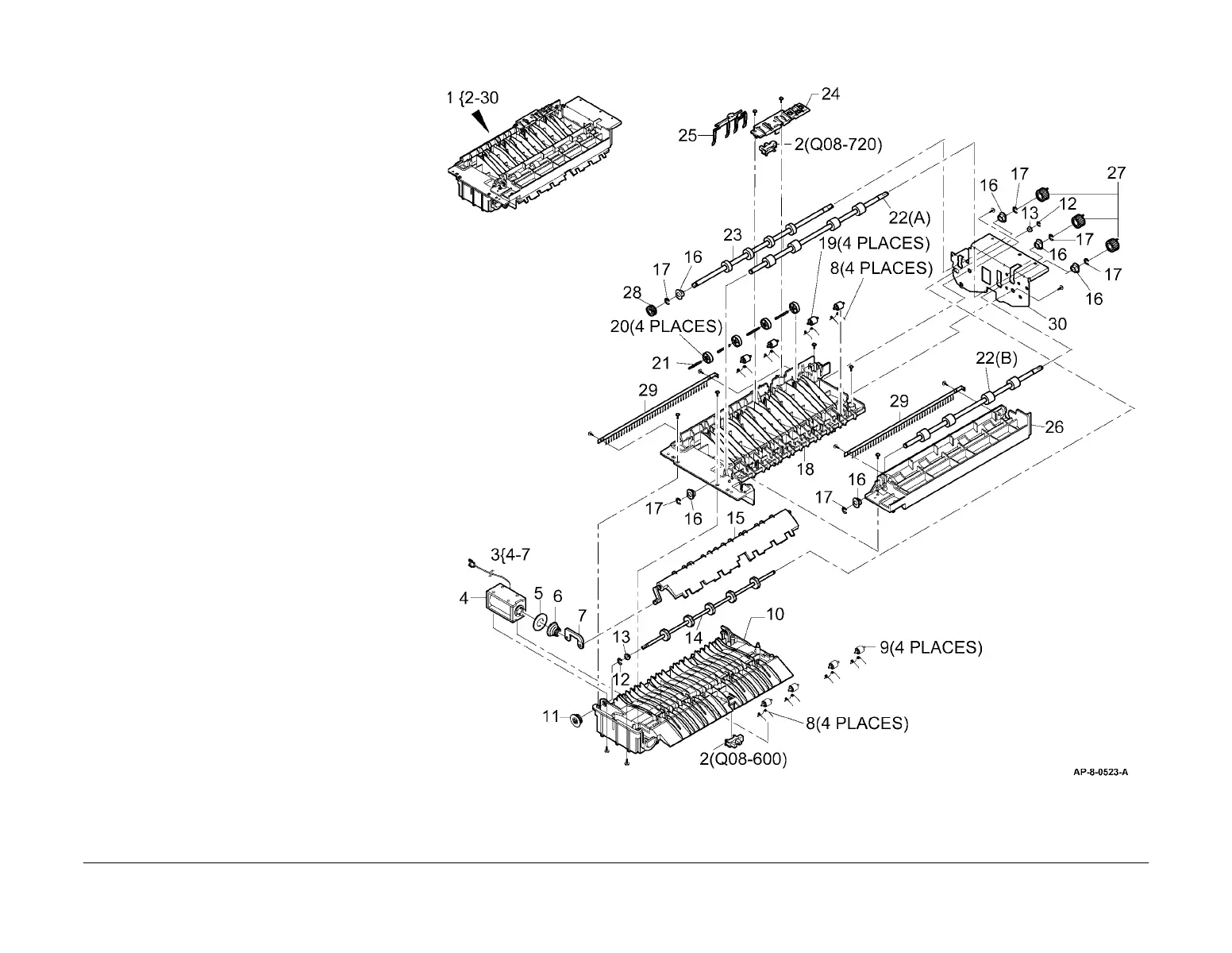

PL 10.15 Exit Assembly
Item Part Description
1 002N02802 Exit assembly (4250/4260/4265)
– 002N02554 Exit assembly (4150) (REP 10.2)
2 130N01601 Out bin full sensor (Q08-720), Exit
sensor (Q08-600) (Alternate)
– 130N01574 Out bin full sensor (Q08-720), Exit
sensor (Q08-600) (Alternate)
– 130N01274 Out bin full sensor (Q08-720), Exit
sensor (Q08-600)
3 121N01130 Duplex gate solenoid assembly
(REP 10.3)
4 – Duplex gate solenoid (SOL 08-870)
(P/O PL 10.15 Item 3)
5 095N00382 Washer
6 – Spring (P/O PL 10.15 Item 3)
7 – Actuator (P/O PL 10.15 Item 3)
8 – Spring (P/O PL 10.15 Item 1)
9 – Duplex roll idler (P/O PL 10.15 Item
1)
10 – Lower exit guide (P/O PL 10.15
Item 1)
11 007N01555 Gear
12 – E-Clip (Not Spared)
13 – Bush (P/O PL 10.15 Item 1)
14 – Lower exit roll (P/O PL 10.15 Item
1)
15 050N00499 Duplex gate (REP 10.3)
16 – Bush (P/O PL 10.15 Item 1)
17 – E-Clip (Not Spared)
18 – Upper exit guide (P/O PL 10.15
Item 1)
19 – Transport roll idler (P/O PL 10.15
Item 1)
20 022N02272 Duplex roll idler
21 – Pin (P/O PL 10.15 Item 1)
22 – Transport roll (22A), Duplex roll
(22B) (P/O PL 10.15 Item 1)
23 – Upper exit roller (P/O PL 10.15 Item
1)
24 – Sensor cover (P/O PL 10.15 Item 1)
25 017N00266 Actuator
26 – Exit guide (P/O PL 10.15 Item 1)
27 007N01559 Gear
28 007N01513 Gear
29 121N01179 Static eliminator
30 – Exit assembly bracket (Not Spared)
NOTE: Alternate part number for Item 2, Out bin Full Sensor
are:130N01601 and 130N01574.
