January 2016
4-101
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.33
Repairs and Adjustments
REP 5.33 DADF Rear Scan Read Sensor (4265)
Parts List on PL 5.59
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Power off the machine. Disconnect the power cord.
2. Open the DADF Unit.
3. Open the DADF Lower Exit Guide (Figure 1).

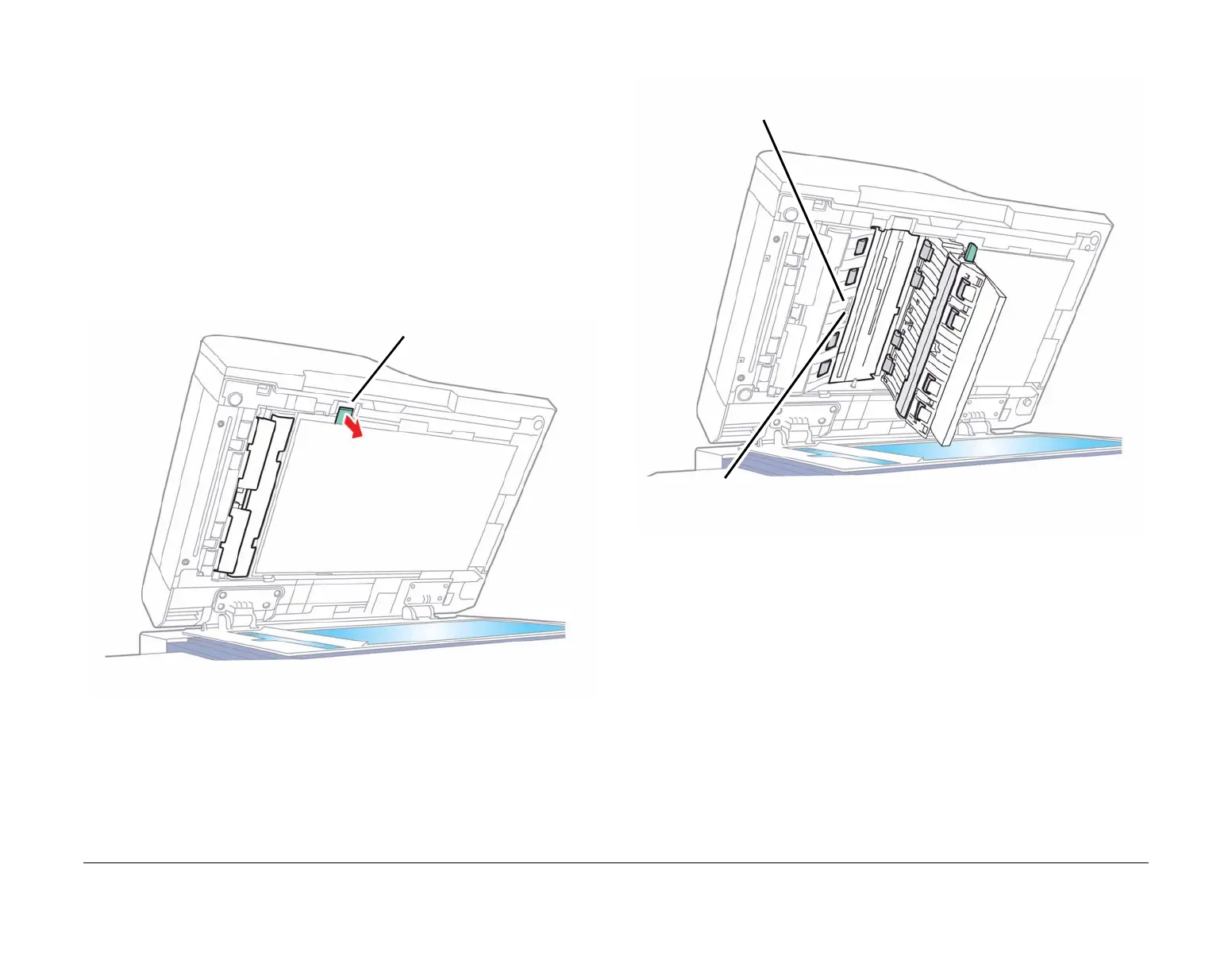

Figure 1 Opening the DADF Lower Exit Guide
4. Locate and remove the DADF Rear Scan Read Sensor (Figure 2).
Figure 2 Locating and Removing the DADF Rear Scan Read Sensor
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Grip the tab and open the DADF
Lower Exit Guide.
DADF Rear Scan Read Sensor
1
Remove the mounting screw and
disconnect the connector.
2
Remove the DADF Rear Scan
Read Sensor.
To Next Page
