January 2016
4-208
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
ADJ 14.2
Repairs and Adjustments
ADJ 14.2 DADF Charge Coupled Device (CCD) Adjustment
(4265)
Parts List on TBD
Purpose
The purpose is to ensure that the CCD is correctly positioned inside the DADF.
Adjustment
1. Access the DADF CCD by performing the first ten steps of REP 5.18.
2. Study the following graphics to become familiar with the components involved in the
adjustment (Figure 1) (Figure 2).
NOTE: The method for adjustment is to loosen the three mounting screws and adjust the
position of the CCD by turning the adjustment screw.

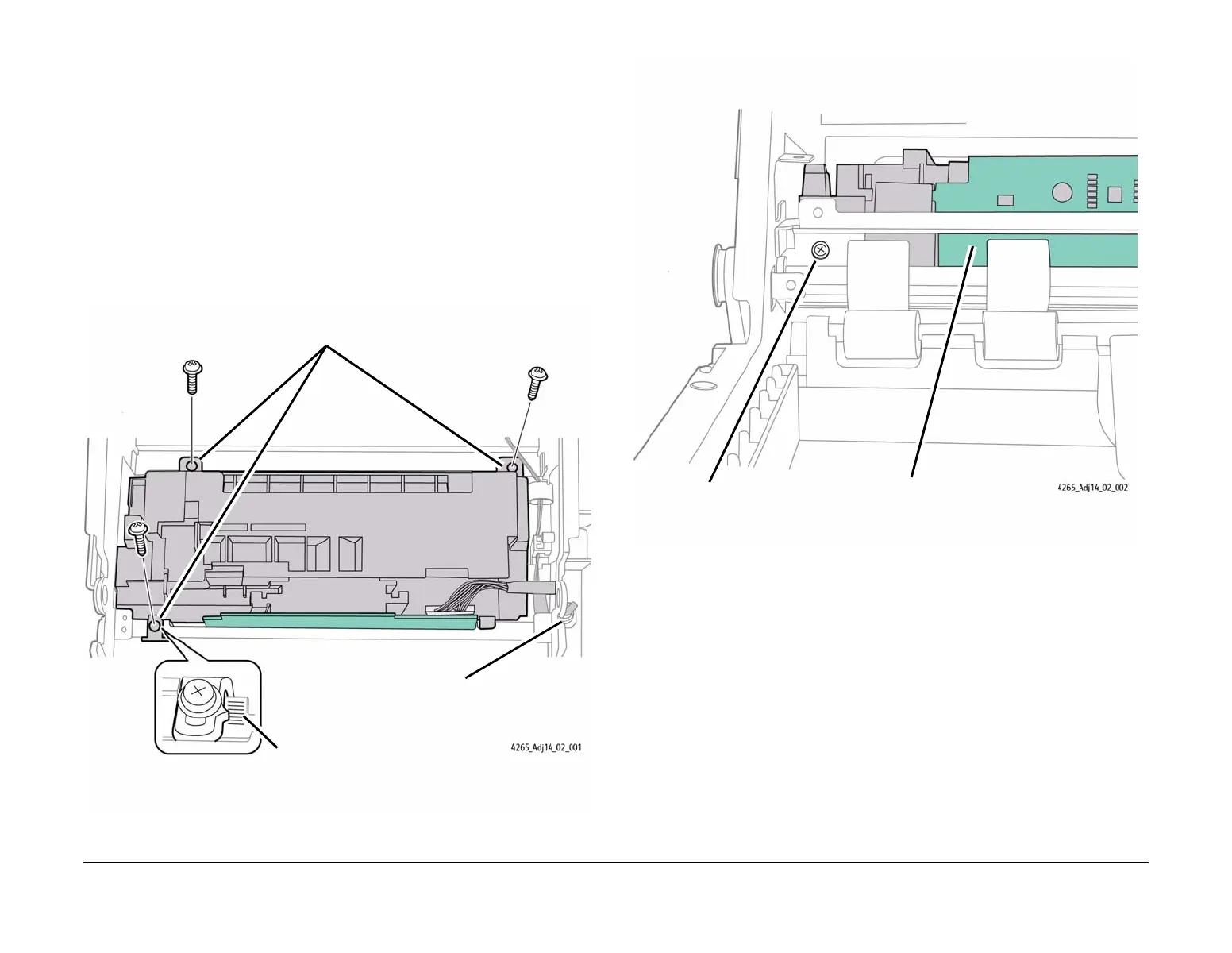

Figure 1 4265 DADF CCD Adjustment Components
Figure 2 CCD Adjustment Screw Location
3. Loosen the three mounting screws that secure the CCD to the machine frame.
4. Adjust the position of the CCD by turning the adjustment screw in the desired direction.
NOTE: The Adjustment Scale will indicate change as the adjustment screw is turned.
5. When the registration adjustment is completed, tighten down the three CCD mounting
screws and reassemble the machine.
6. Power on the machine and check for correct registration by running several copies of the
required test pattern.
7. Return the machine to normal operation.
CCD Mounting Screws (3)
Pivot shaft secured
with E-clip
Adjustment Scale
DADF CCD PWBAdjustment screw
NOTE: The Adjustment screw is located directly beneath the Adjust-
ment Scale, on the same side of the DADF.
