Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 12.20
Parts List

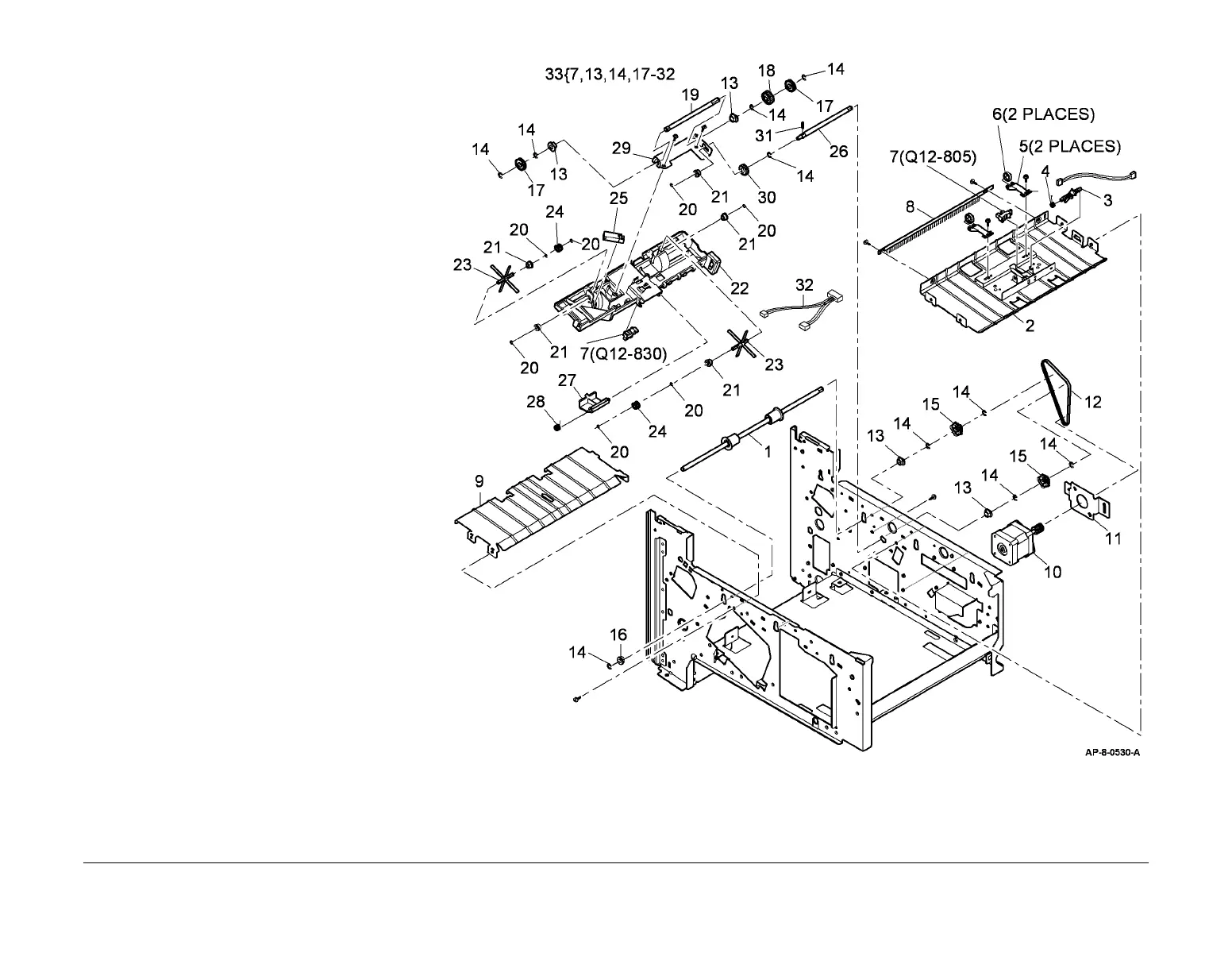

PL 12.20 Compiler and Exit
Components
Item Part Description
1 022N02228 Exit roll (REP 12.3)
2 – Upper exit guide (P/O PL 12.50
Item 1)
3 – Actuator (P/O PL 12.50 Item 1)
4 – Spring (P/O PL 12.50 Item 1)
5 – Leaf spring (P/O PL 12.50 Item 1)
6 – Idler (P/O PL 12.50 Item 1)
7 130N01274 Exit sensor (Q12-805) (REP 12.3),
Ejector home sensor (Q12-830)
(P/O PL 12.20 Item 33)
8 115N00860 Static eliminator
9 – Lower exit guide (P/O PL 12.50
Item 1)
10 127N07483 Exit motor (MOT12-110)
11 – Motor bracket (P/O PL 12.50 Item
1)
12 023N01154 Drive belt (REP 12.3)
13 – Bearing (P/O PL 12.20 Item 33)
14 – E-Clip (Not Spared)
15 – Pulley (Not Spared)
16 – Bearing (Not Spared)
17 – Gear 34T (P/O PL 12.20 Item 33)
18 – Gear 22T (P/O PL 12.20 Item 33)
19 – Shaft (P/O PL 12.20 Item 33)
20 – E-Clip (Not Spared)
21 – Bearing (P/O PL 12.20 Item 33)
22 – Compiler guide (P/O PL 12.20 Item
33)
23 – Paddle (P/O PL 12.20 Item 33)
24 – Paddle gear 18T (P/O PL 12.20
Item 33)
25 – Paper detector sensor (Q12-865)
(P/O PL 12.20 Item 33) (REP 12.3)
26 – Shaft (P/O PL 12.20 Item 33)
27 – Actuator (P/O PL 12.20 Item 33)
28 – Spring (P/O PL 12.20 Item 33)
29 – Paddle bracket (P/O PL 12.20 Item
33)
30 – Gear 18T (P/O PL 12.20 Item 33)
31 – Pin (P/O PL 12.20 Item 33)
32 – Harness (P/O PL 12.20 Item 33)
33 022N02276 Compiler assembly (REP 12.5)
