Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 1.15
Parts List

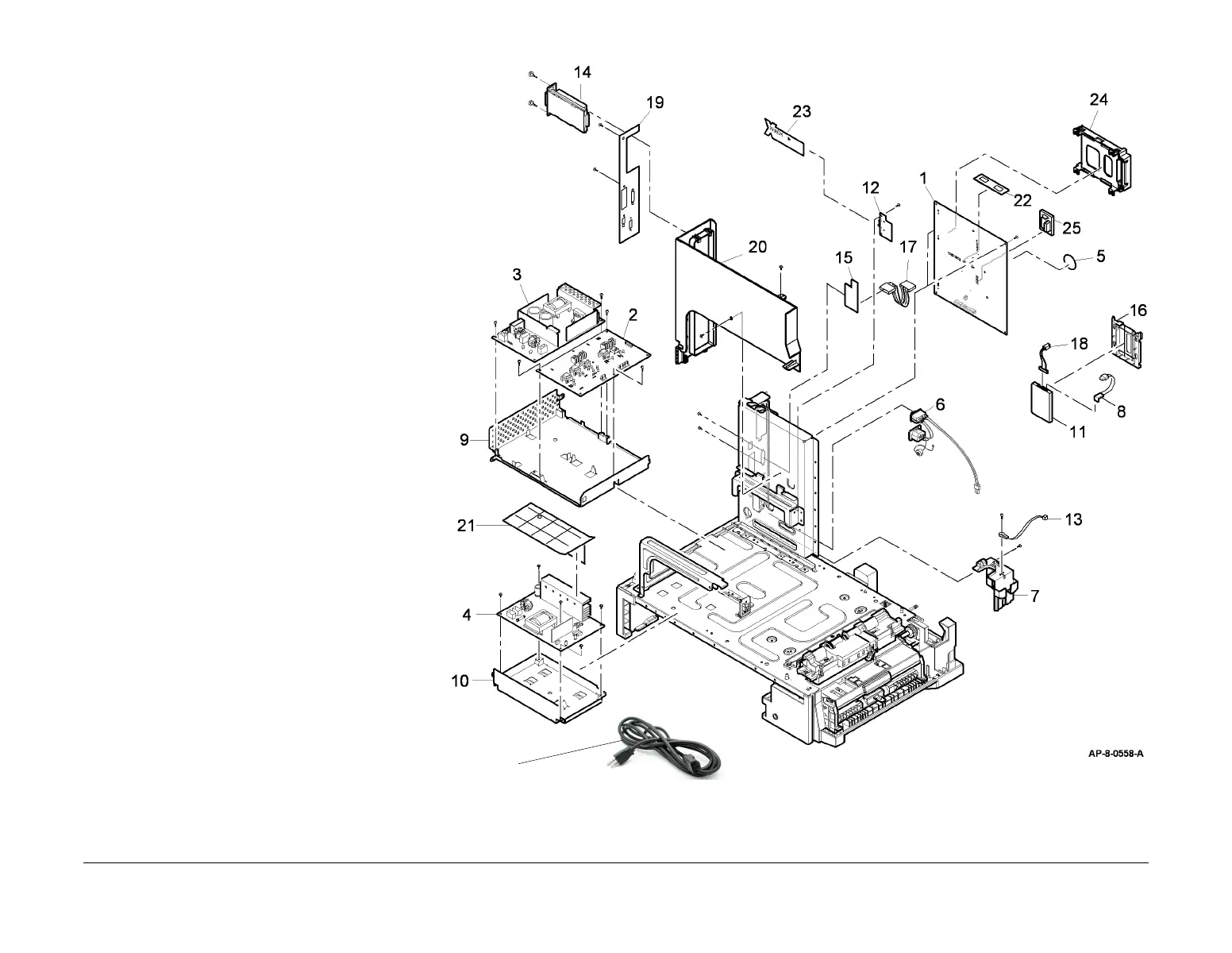

PL 1.15 Power and Control Assembly
(4250/4260/4265)
Item Part Description
1 140N63352 Main PWB (4260) (Digitally signed
firmware level(30.105.05.000 or
higher)) (REP 1.5)
– 140N63665 Main PWB (4260) (Non-digitally
signed firmware
level(30.103.64.000 or lower))
(REP 1.5)
– 140N63702 Main PWB (4265)
– 140N63392 Main PWB (4250) (Digitally signed
firmware level(15.005.05.000 or
higher))
– 140N63664 Main PWB (4250) (Non-digitally
signed firmware
level(15.003.69.000 or lower))
(REP 1.5)
2 105N02155 HVPS (4250/4260)
3 105N02158 Power supply unit (1) 220V (XE)
(REP 1.4)
– 105N02157 Power supply unit (1) 110V
(USSG/XCL) (4250/4260)
4 110N01430 Power supply unit (2) 220V (XE)
(REP 1.6)
– 110N01429 Power supply unit (2) 110V
(USSG/XCL) (4250/4260)
5 – Battery (Not Spared)
6 152N11783 Main power socket
7 – Cover (Not Spared)
8 117N01904 HDD SATA harness
9 – Support cage (Not Spared)
10 – Support cage (Not Spared)
11 007N01703 HDD
12 101N01445 SIM PWB
13 130N01531 Ambient temperature thermistor
14 – FAX module (REF: PL 20.10 Item
6)
15 140N63346 Foreign device interface PWB
16 – HDD cover (Not Spared)
17 152N11762 Foreign device interface harness
18 – HDD power harness (Not Spared)
19 – Infill cover (REF: PL 28.10 Item 5)
20 – Rear exit cover (REF: PL 28.10
Item 8)
21 – Power supply unit cover (Not
Spared)
22 140N63353 Memory DIMM (4250/4260)
23 – PEK/FEK (Not Spared)
24 019N00909 FAX holder
25 – MSOK (Not Spared) (4260/4250/4265)
26 117N01602 WC 4250/4260/4265 Power Cord
26
