Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 12.25
Parts List

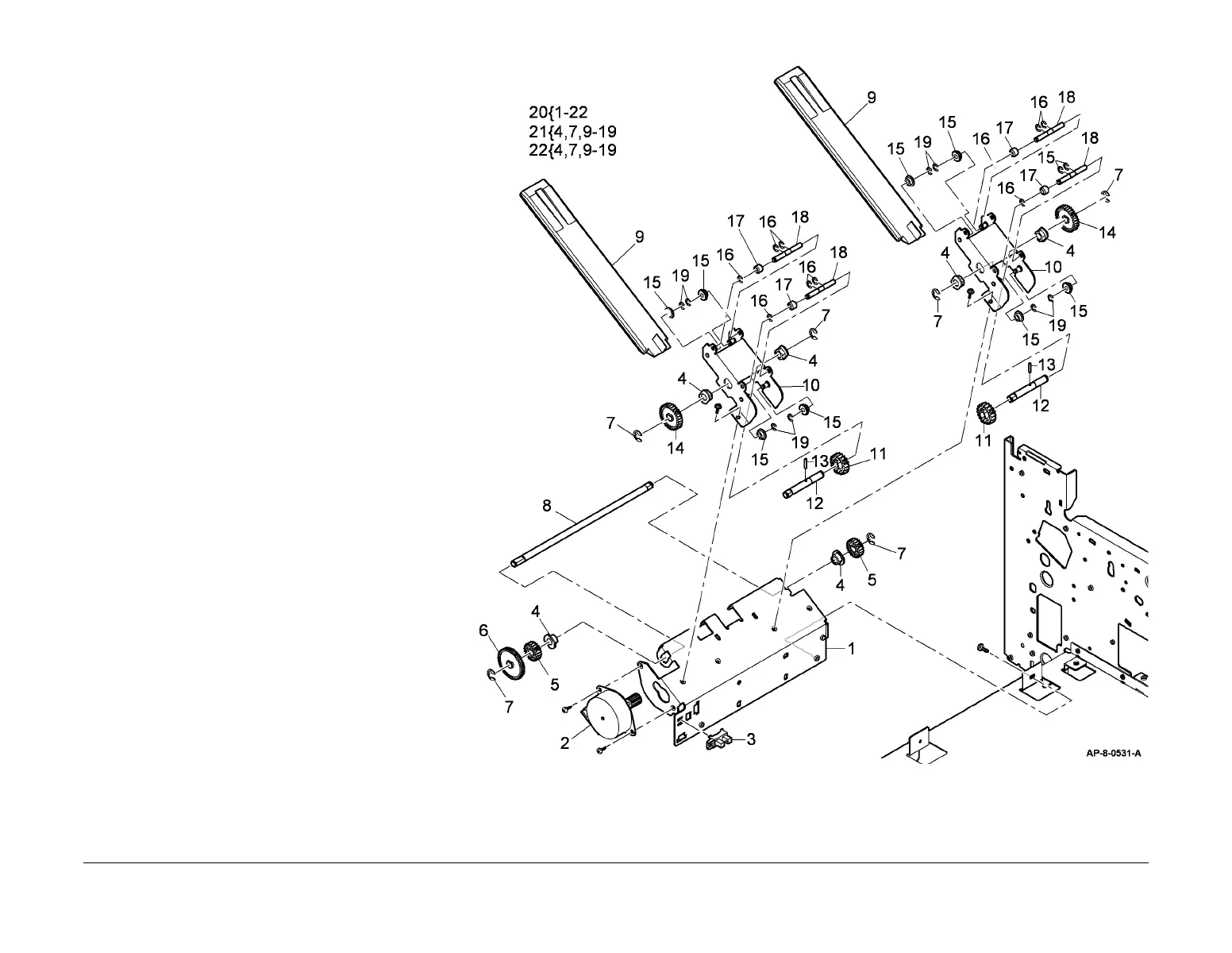

PL 12.25 Support Finger Assembly
Item Part Description
1 – Bracket (P/O PL 12.25 Item 20)
2 127N07492 Support finger motor (MOT12-400)
(REP 12.7)
3 130N01274 Ejector encoder sensor (Q12-835)
4 – Bearing (P/O PL 12.25 Item 21) &
(P/O PL 12.25 Item 22)
5 007N01492 Gear 20T
6 007N01493 Gear 60T
7 – E-Clip (Not Spared)
8 – Transport shaft (P/O PL 12.50 Item
1)
9 – Support finger (P/O PL 12.25 Item
21) & (P/O PL 12.25 Item 22)
(REP 12.6)
10 – Bracket (P/O PL 12.25 Item 21) &
(P/O PL 12.25 Item 22)
11 – Pinion gear 18T (P/O PL 12.25 Item
21, PL 12.25 Item 22)
12 – Pinion shaft (P/O PL 12.25 Item 21)
& (P/O PL 12.25 Item 22)
13 – Pin (P/O PL 12.25 Item 21) & (P/O
PL 12.25 Item 22)
14 – Gear 30T (P/O PL 12.25 Item 21,
PL 12.25 Item 22)
15 – Bearing (P/O PL 12.25 Item 21) &
(P/O PL 12.25 Item 22)
16 – E-Clip (Not Spared)
17 – Roller (P/O PL 12.25 Item 21) &
(P/O PL 12.25 Item 22)
18 – Shaft (P/O PL 12.25 Item 21) &
(P/O PL 12.25 Item 22)
19 – E-Clip (Not Spared)
20 – Support finger assembly (P/O PL
12.50 Item 1) (REP 12.7)
21 019N00922 Front support finger assembly
(REP 12.6)
22 019N00923 Rear support finger assembly (REP
12.6)
