PL 5.20
Parts List

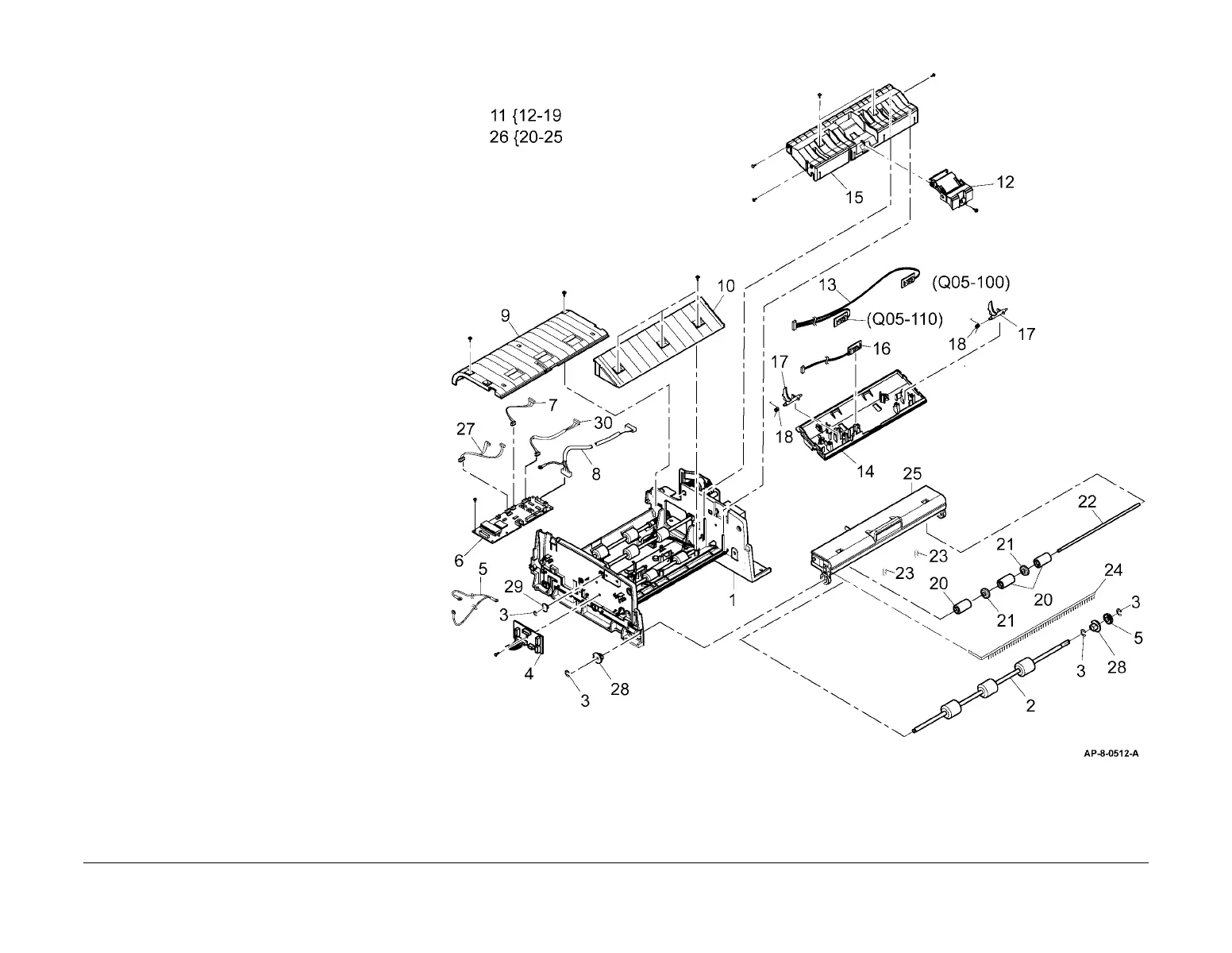

PL 5.20 DADF Assembly (3 of 4)
(4150)
Item Part Description
1 – Transport assembly (REF: PL 5.10
Item 2)
2 – Exit roll (P/O PL 5.10 Item 2)
3 – E-clip (Not Spared)
4 140N63152 DADF sensor PWB
5 007N01538 Exit roll gear (REP 5.1)
6 140N63144 DADF PWB (REP 5.2)
7 – Scan motor harness (P/O PL 5.10
Item 2)
8 152N11711 Main I/F
9 – Left guide (P/O PL 5.10 Item 2)
10 – Right guide (P/O PL 5.10 Item 2)
11 130N01465 Lower feed assembly (REP 5.1)
12 019N00795 Retard pad (See Note)
13 140N63150 Document detect sensor
(Q05-100), Paper width sensor
(Q05-110) assembly
14 – Lower feed bottom cover (P/O PL
5.20 Item 11)
15 – Lower feed top cover (P/O PL 5.20
Item 11)
16 140N63151 Exit open Sensor (Q05-150)
17 120N00488 Actuator
18 – Spring (P/O PL 5.20 Item 11)
20 – Idler roll (P/O PL 5.20 Item 26)
21 – Idler disc (P/O PL 5.20 Item 26)
22 – Shaft (P/O PL 5.20 Item 26) (REP
5.1)
23 – Spring (P/O PL 5.20 Item 26)
24 063N00110 Static eliminator
25 – Exit cover (P/O PL 5.20 Item 26)
26 002N02584 Exit assembly (REP 5.1)
27 – Clutch & switch harness (P/O PL
5.10 Item 2)
28 – Exit roll bearing (P/O PL 5.10 Item
2)
29 – Bearing (P/O PL 5.10 Item 2)
30 – Scan motor harness (P/O PL 5.10
Item 2)
NOTE: HFSI. To reset the HFSI count, go to GP 16.
