Xerox WorkCentre 4150 Service Manual

January 2016
4-134
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 8.3
Repairs and Adjustments
REP 8.3 Paper Transport Assembly
Parts List on PL 8.20
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the registration roll, REP 8.2.

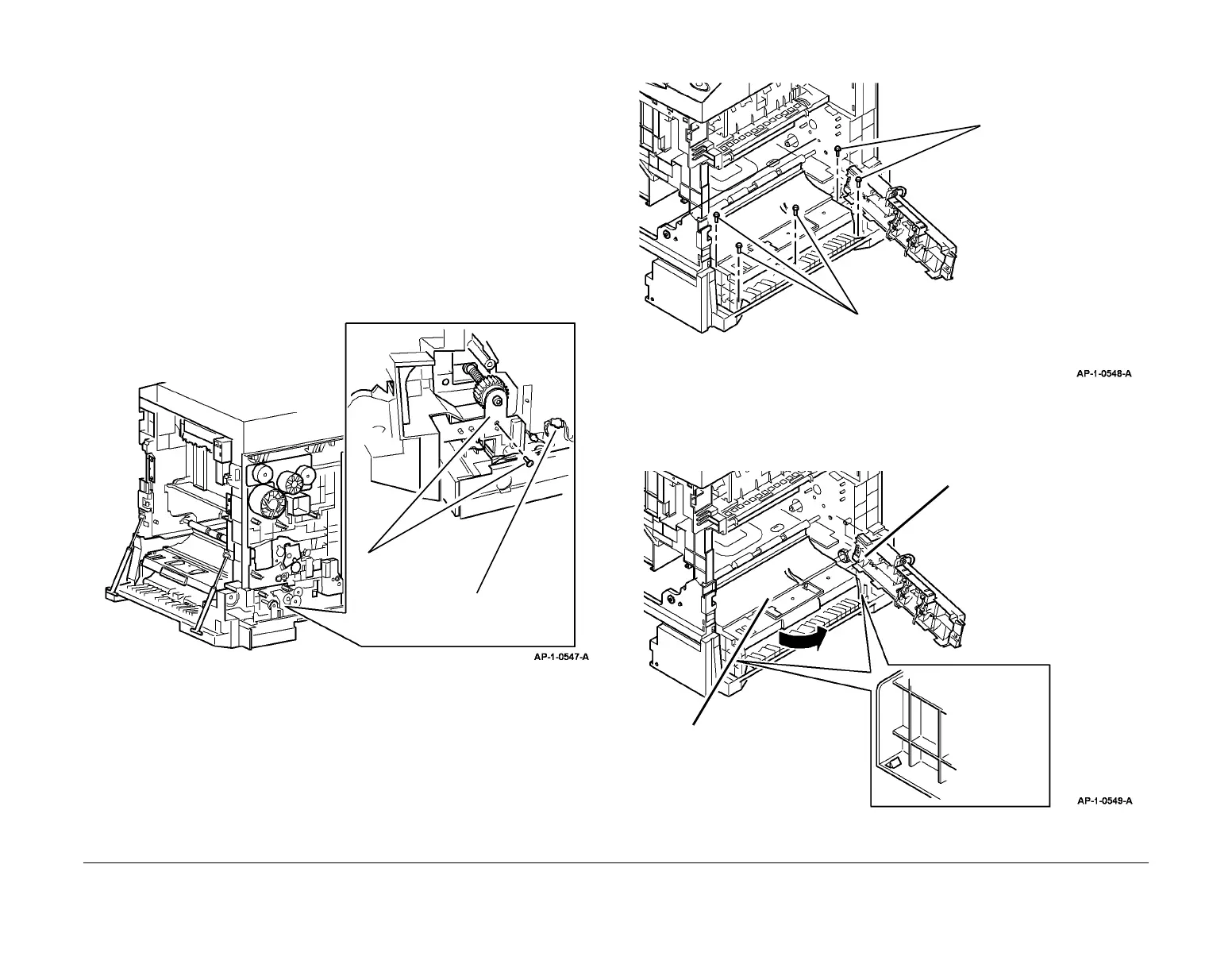

2. Prepare the rear of the paper transport assembly, Figure 1.
Figure 1 Preparation
3. Prepare to remove the paper transport assembly, Figure 2.
Figure 2 Preparation
4. Remove the paper transport assembly, Figure 3.
Figure 3 Remove the Paper Transport Assembly
1
Disconnect the
inline connector.
2
Remove 1
screw, then the
bracket and
bearing.
1
Remove 2 screws.
2
Remove 3 screws.
1
Release 2
clips.
2
Guide the wire harness out
of the back panel.
3
Remove the Paper
Transport Assembly.
