January 2016
4-162
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 10.9
Repairs and Adjustments
REP 10.9 Fuser Connector/Harness (4265)
Parts List on PL 10.28
Removal
NOTE: This procedure should only be performed on the 4265. For the 4150/4250/4260
machines, refer to the Table of Contents.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Power off the machine. Disconnect the power cord.
2. Remove the Exit Guide Assembly (REP 10.2).
3. Remove the Fuser Assembly (REP 10.1).
4. Detach the Fuser Connector Cover from the frame (Figure 1).

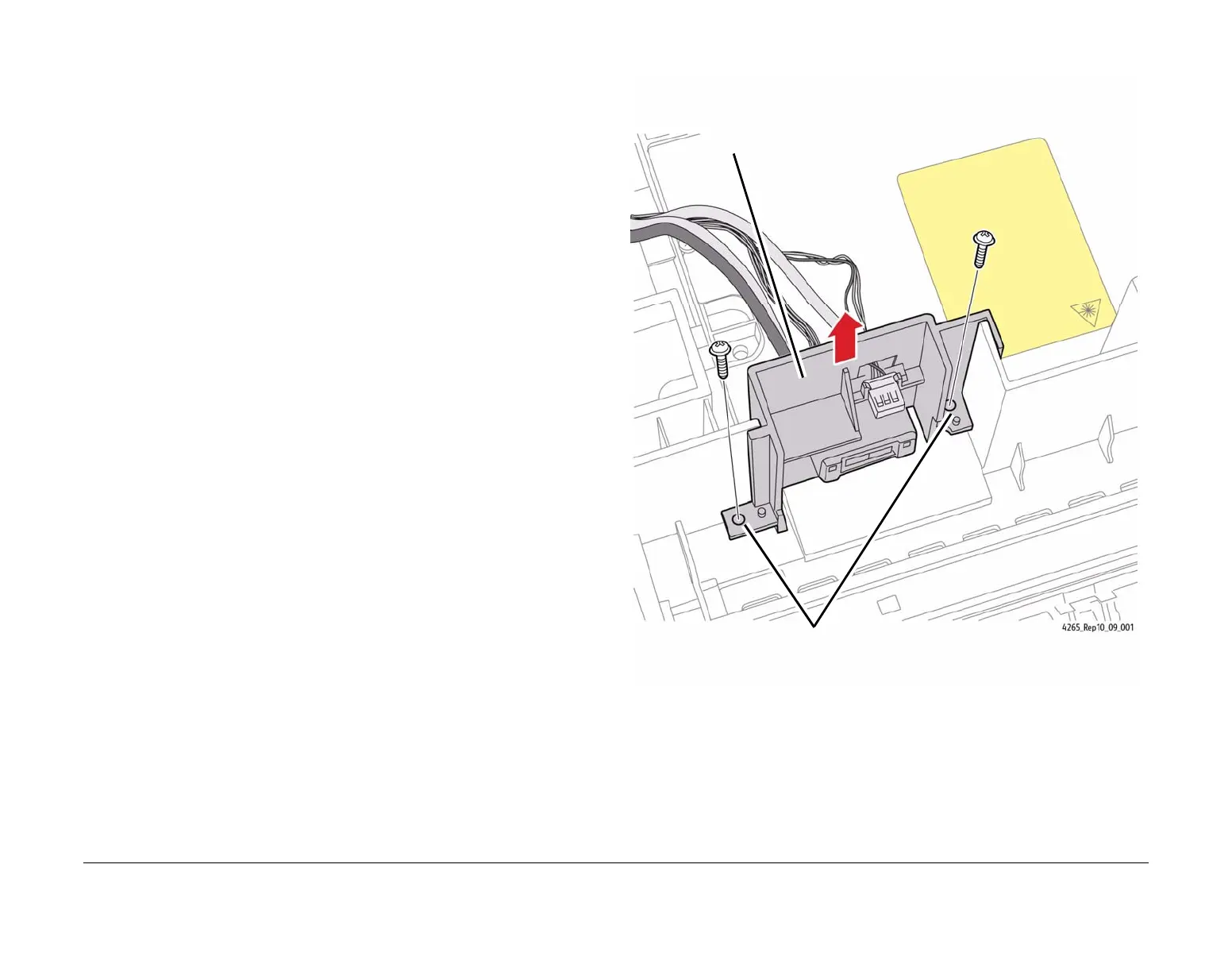

Figure 1 Detaching the Connector Cover from the Frame
1
Remove the two mounting screws.
2
Detach the Connector Cover.
To Next Page
