Xerox WorkCentre 4150 Service Manual

January 2016
4-142
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 9.3, REP 9.4
Repairs and Adjustments
Replacement
Replacement is the reverse of the removal procedure.
REP 9.4 Xerographic Module Connector (4250/4260)
Parts List on PL 4.15
Removal
NOTE: This procedure should only be performed on the 4250/4260. For the 4150 procedure,
refer to the table of contents.
For the 4265 procedure, refer to REP 9.6
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the main drive assembly, REP 4.3.
2. Remove the xerographic module connector, Figure 1.

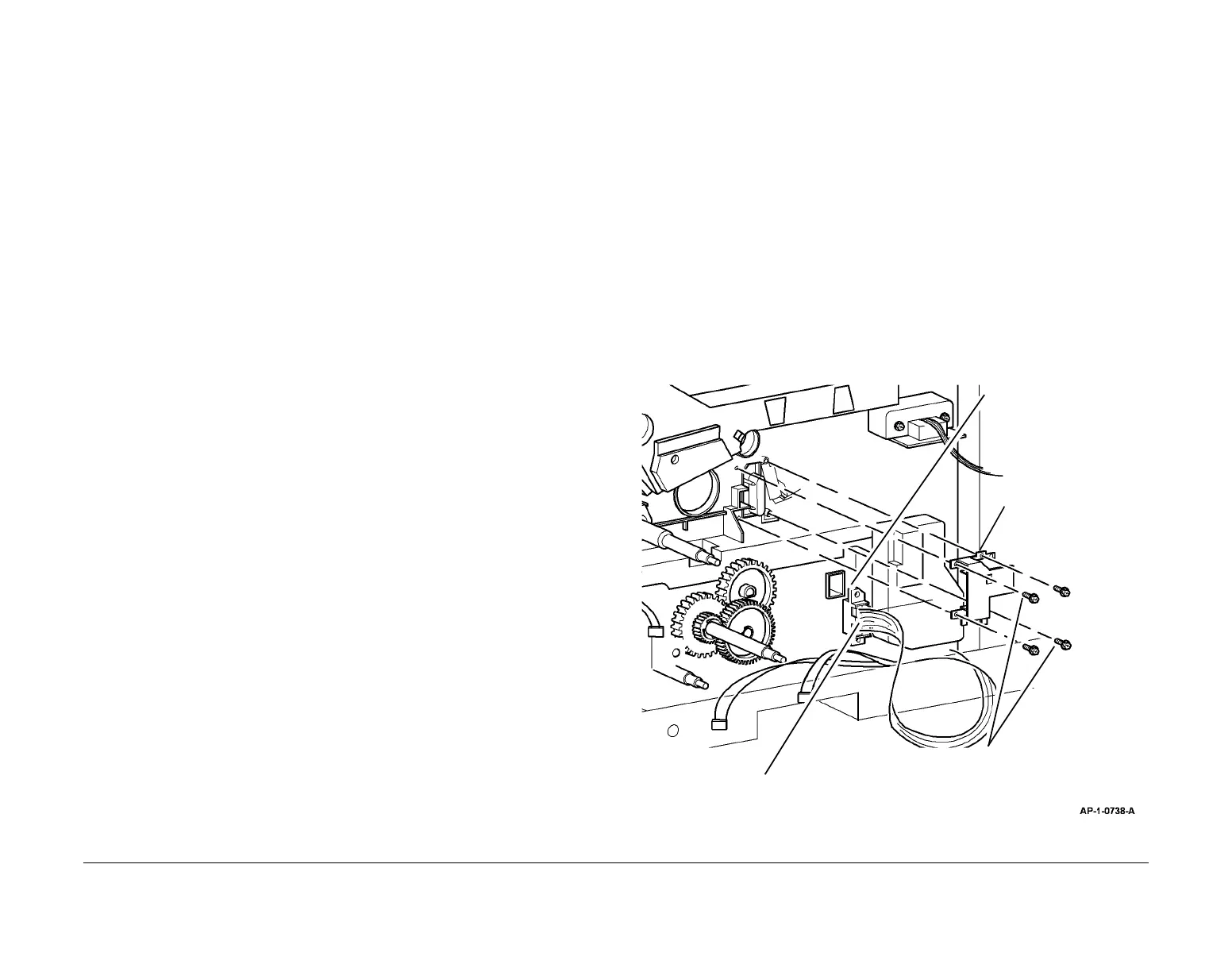

Figure 1 Connector removal
1
Remove 4 screws.
2
Remove the connector
holder.
3
Remove the xerographic
module connector.
4
Carefully disconnect the connector.
