January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 12.50
Parts List

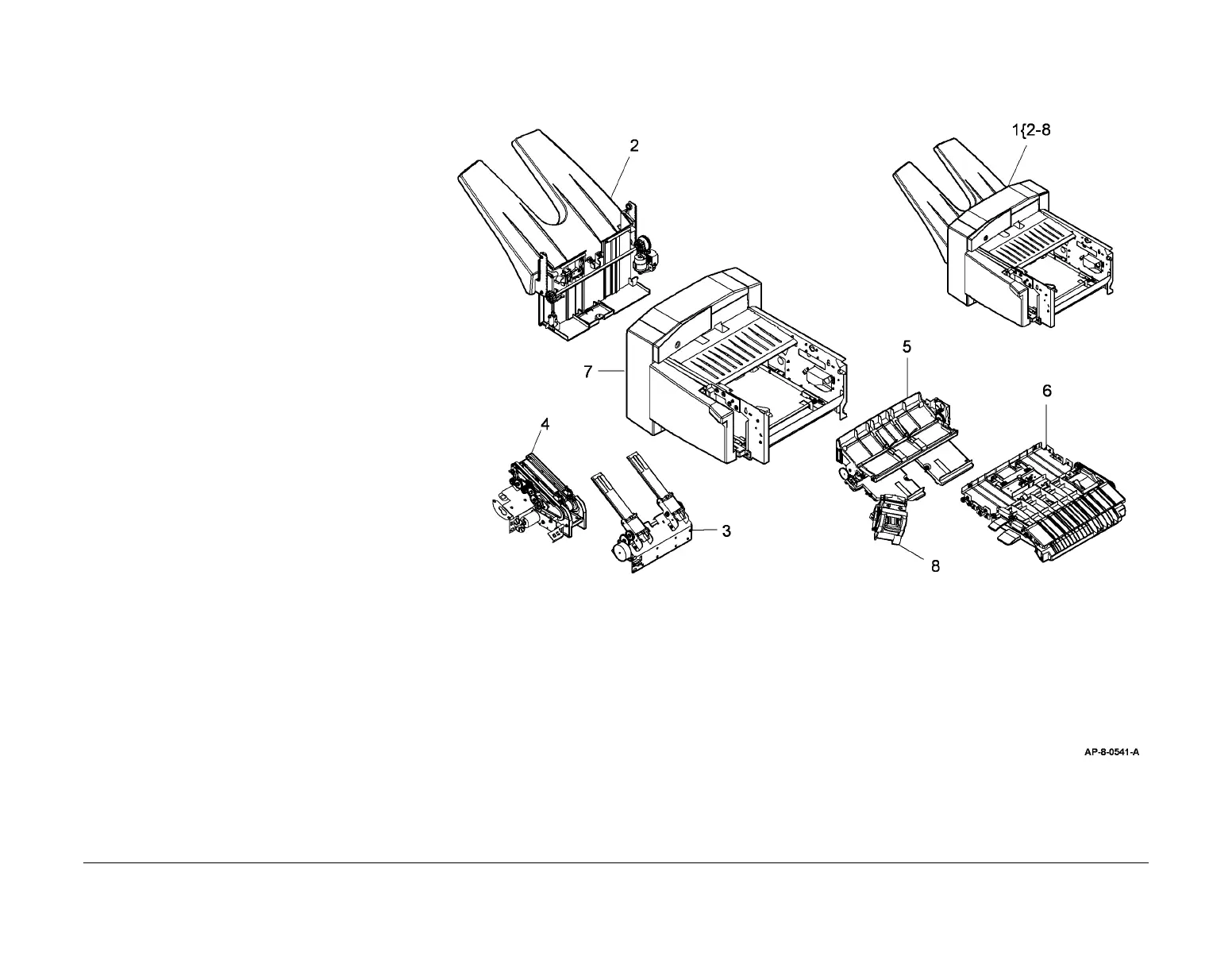

PL 12.50 Finisher Assembly
Item Part Description
1 101N01459 Finisher assembly (complete)
(4250/4260) (4265 see note)
– 050N00504 Finisher assembly (complete)
(4150)
2 – Stacker assembly (REF: PL 12.45)
3 – Support finger assembly (REF: PL
12.25)
4 – Ejector assembly (REF: PL 12.40)
5 – Jogger and Paddle assembly (REF:
PL 12.30)
6 – Duplex and Entry components
(REF: PL 12.15)
7 – Finisher frame (REF: PL 12.10)
8 – Stapler assembly (REF: PL 12.35)
Note: The 4265 Finisher assembly is not spared.
It can only be ordered by Sales as 097N02155.
