January 2016
4-96
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.32
Repairs and Adjustments
REP 5.32 DADF Sub Assembly (4265)
Parts List on PL 5.60
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Power off the machine. Disconnect the power cord.
2. Remove the DADF (REP 5.3).
3. Dislocate the DADF Rear Cover (Figure 1).

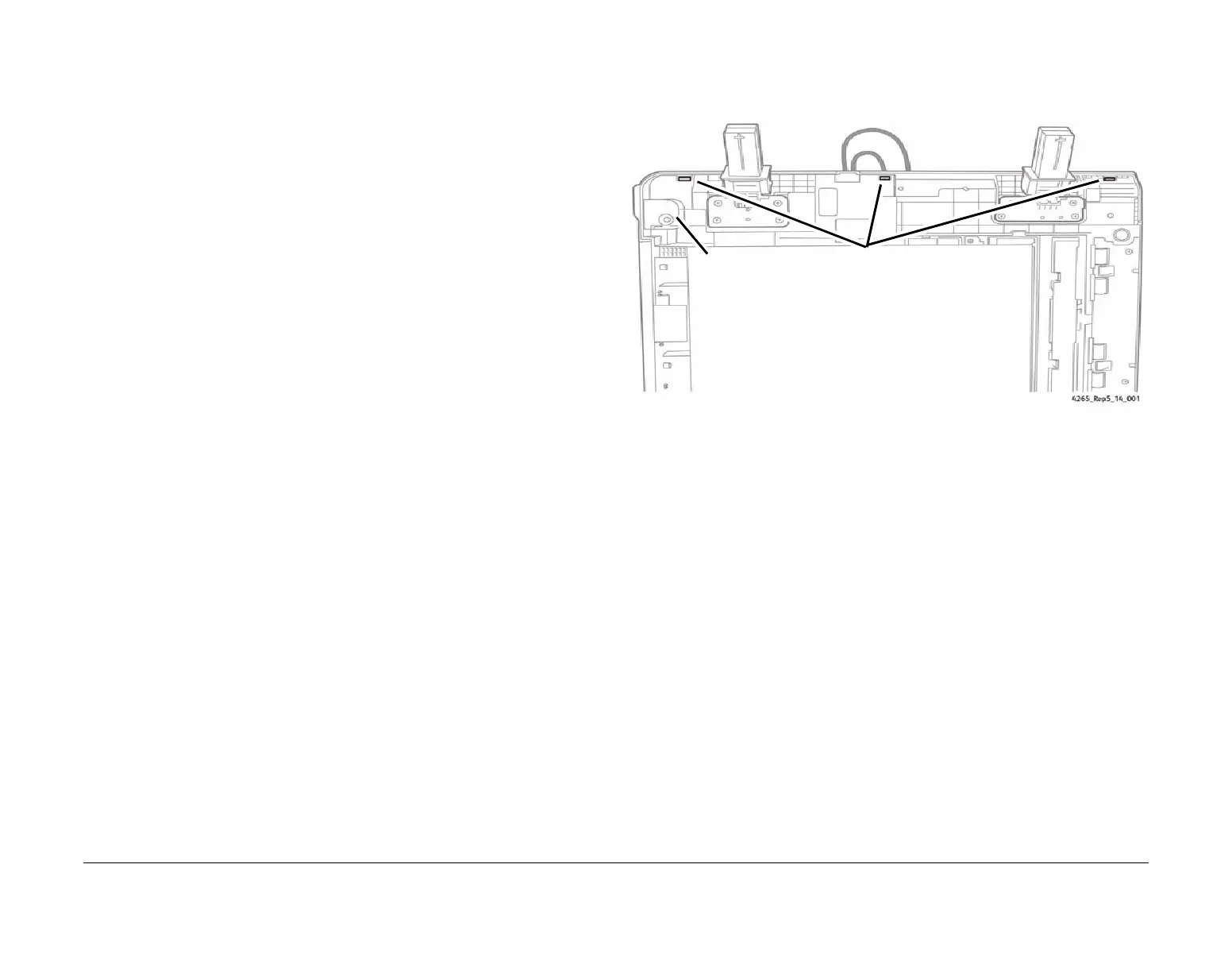

Figure 1 Dislocating the DADF Rear Cover
1
Set the DADF on its side, with the rear of the DADF facing upwards.
3
Carefully dislocate the
three locking tabs using a
flat-blade screwdriver.
4
Set the DADF down on the
table top, with the top side
facing upwards.
2
Remove the screw.
To Next Page
