January 2016
4-92
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.29
Repairs and Adjustments
REP 5.29 DADF Left/Right Hinges (4265)
Parts List on PL 5.60
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Power off the machine. Disconnect the power cord.
2. Remove the DADF from the machine (REP 5.3) and place it upside-down on a clean,
level surface.
NOTE: The DADF Left and Right Hinges are different parts, and are spared separately.
3. Remove the DADF Left/Right Hinges (Figure 1).

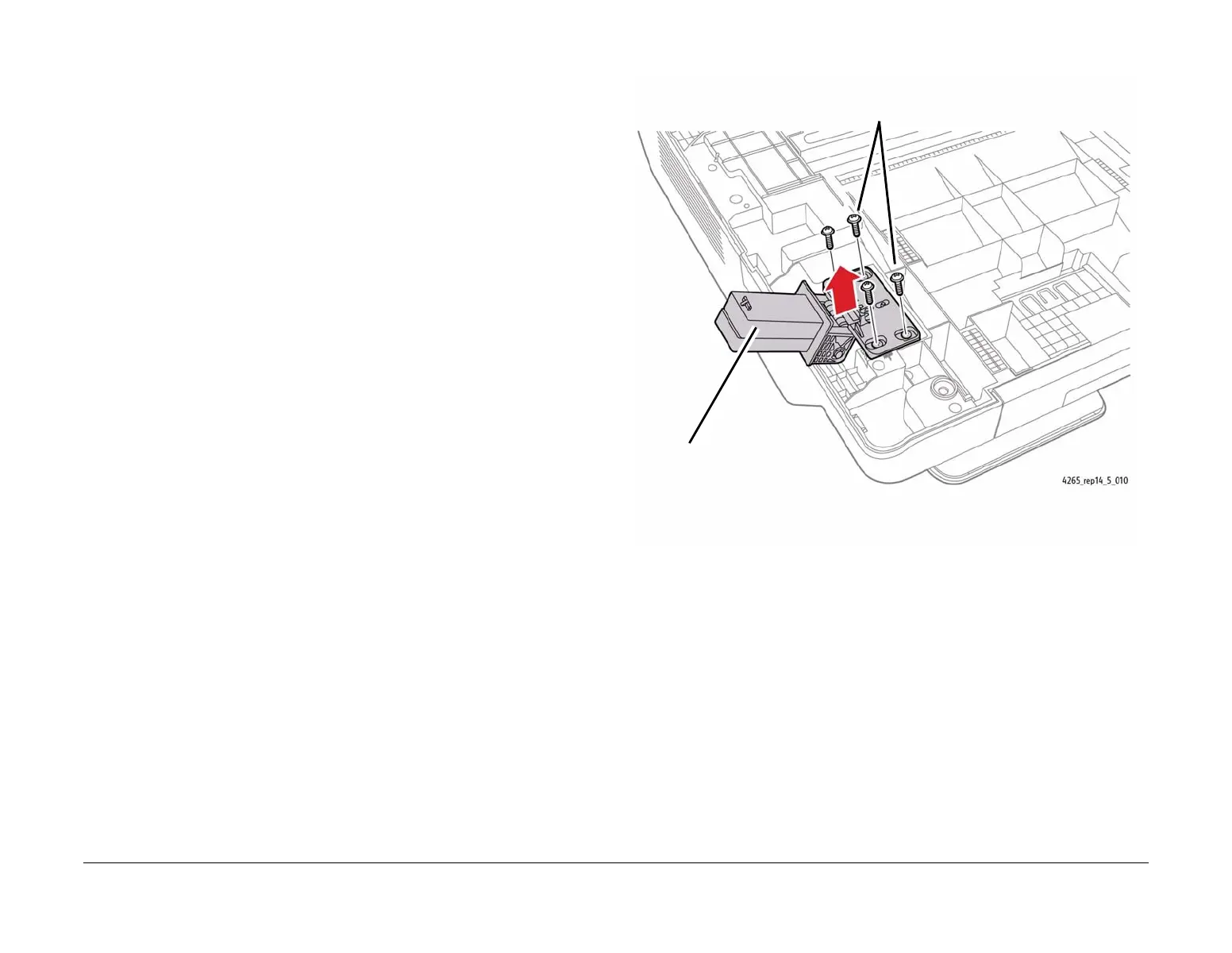

Figure 1 Removing the DADF Left/Right Hinges
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Remove the four hinge mounting screws.
2
Remove the particular hinge
from the machine.
To Next Page
