January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 14.13
Parts List

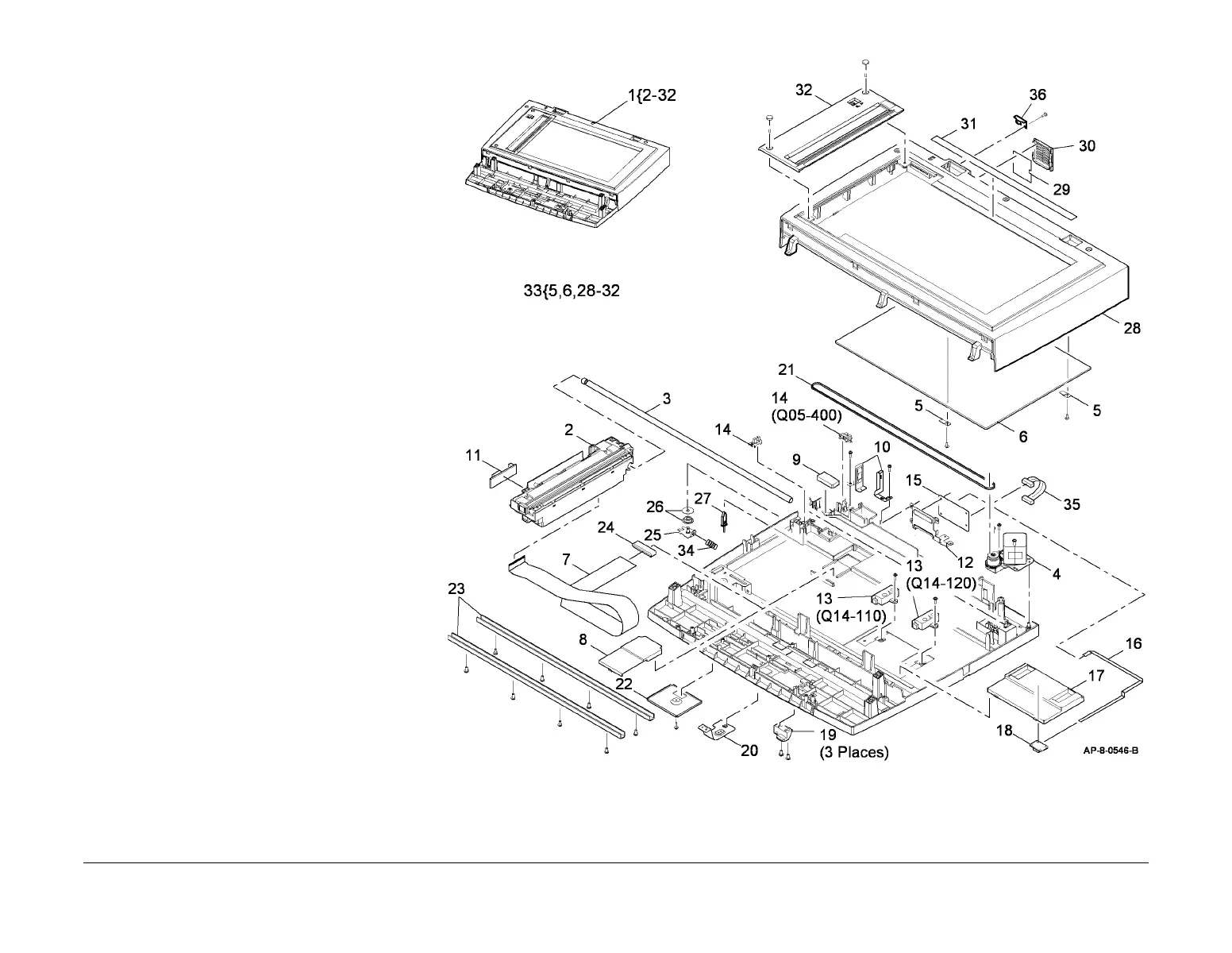

PL 14.13 Scanner Module and
CVT/Document Glass (4250/4260)
Item Part Description
1 002N02808 Scanner assembly (4250/4260)
2 002N02813 CCD module (REP 14.4)
3– Shaft (P/O PL 14.13 Item 1)
4 127N07598 Scan motor assembly (MOT14-130)
(REP 14.4)
5 – Platen fixing (P/O PL 14.13 Item 1)
6 – Platen glass (P/O PL 14.13 Item 1)
7 – CCD ribbon cable (P/O PL 14.13
Item 1) (REP 14.4)
8 – Ribbon cable cover (P/O PL 14.13
Item 1)
9 – Static eliminator (P/O PL 14.13 Item
1)
10 – Ground strip (P/O PL 14.13 Item 1)
11 – CCD module PWB (P/O PL 14.13
Item 2) (REP 14.4)
12 – Scanner PWB bracket (P/O PL
14.13 Item 1)
13 130N01563 Document size sensor 1 (Q14-110),
Document size sensor 2 (Q14-120)
(REP 14.4)
14 130N01274 Platen cover sensor (Q05-400)/
CCD module home sensor (REP
14.4)
15 140N63355 Scanner PWB (REP 14.4)
16 – Paper length sensors harness (P/O
PL 14.13 Item 1)
17 – Size detect sensors cover (P/O PL
14.13 Item 1)
18 – Paper length sensor PWB (P/O PL
14.13 Item 1)
19 – Fastener (P/O PL 14.13 Item 1)
20 – Bracket (P/O PL 14.13 Item 1)
21 023N00954 Scanner drive belt (REP 14.4)
22 – Cover (P/O PL 14.13 Item 1)
23 – Support rail (P/O PL 14.13 Item 1)
24 – Ferrite (P/O PL 14.13 Item 1)
25 – Pulley seat (P/O PL 14.13 Item 1)
26 020N00830 Drive belt pulley (REP 14.4)
27 – Platen cover sensor actuator (P/O
PL 14.13 Item 1)
28 – Scanner top cover (P/O PL 14.13
Item 1) (REP 14.4
)
29 – Plastic sheet (P/O PL 14.13 Item 1)
30 – Fan cover (P/O PL 14.13 Item 1)
31 – Paper register guide (P/O PL 14.13
Item 1)
32 002N02867 CVT glass assembly
33 002N02814 Scanner top cover assembly (REP
14.4)
34 009N01616 Spring
35 152N11782 Scanner PWB to main PWB har-
ness
36 – DADF retaining bracket (4250)
NOTE: The Scanner Assembly includes Connector CN2 on
Left Keys PWB going to CN3 on Main PWB.
To Next Page
