Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 12.30
Parts List

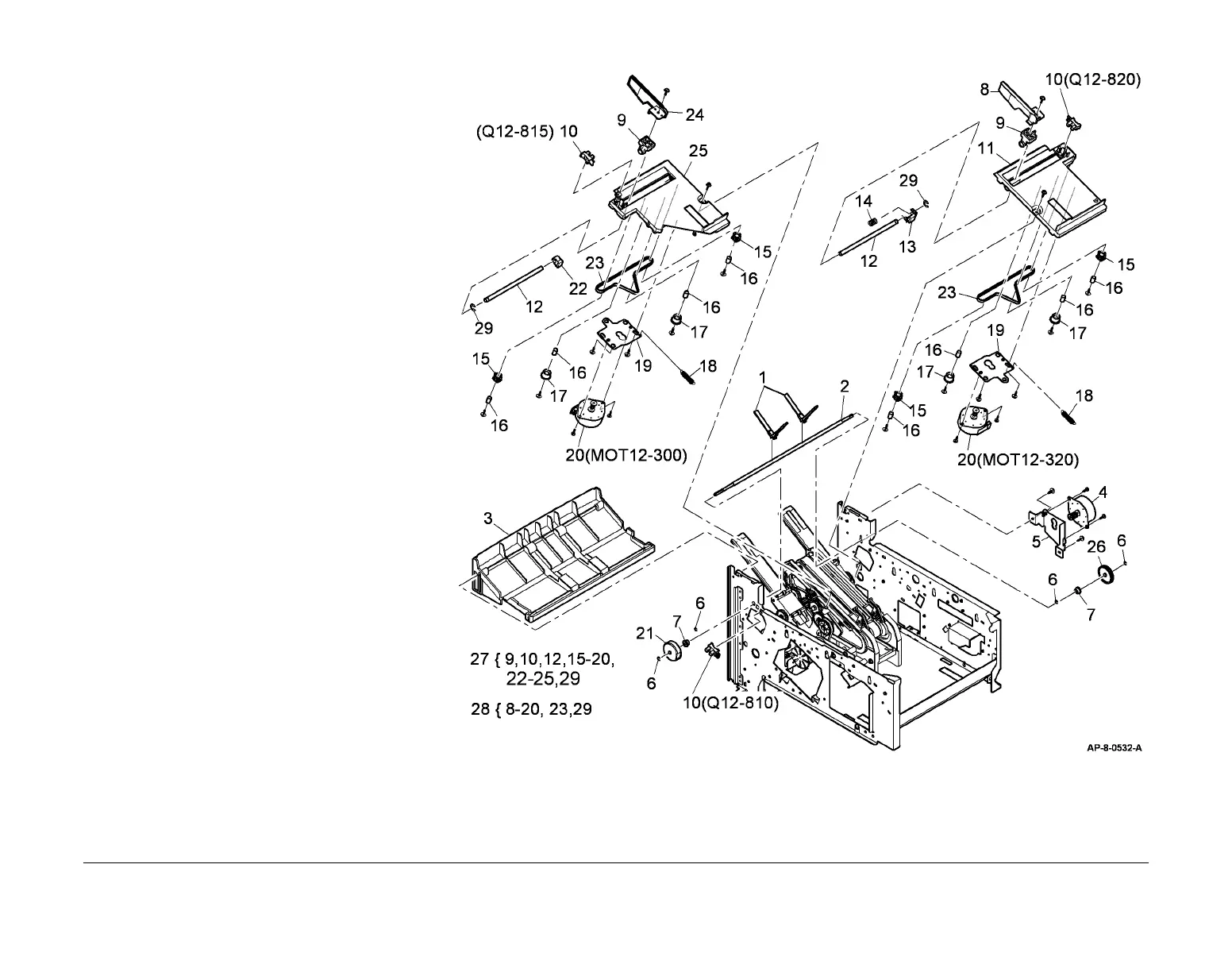

PL 12.30 Jogger and Paddle
Assembly
Item Part Description
1 033N00239 Compiler exit paddles
2 – Paddle shaft (P/O PL 12.50 Item 1)
3 – Upper compiler cover (P/O PL 12.50
Item 1)
4 127N07492 Paddle motor (MOT 12-200)
5 – Paddle motor bracket (P/O PL 12.50
Item 1)
6 – E-Clip (Not Spared)
7 – Bearing (P/O PL 12.50 Item 1)
8 – Rear jogger arm (P/O PL 12.30 Item
28)
9 – Jogger bush (P/O PL 12.30 Item 27) &
(PL 12.30 Item 28)
10 130N01274 Paddle home sensor (Q2-810), Front
jogger home sensor (Q12-815), Rear
jogger home sensor (Q12-820)
11 – Compiler rear frame (P/O PL 12.50
Item 1)
12 – Jogger shaft (P/O PL 12.30 Item 27) &
(PL 12.30 Item 28)
13 – Rear belt holder (P/O PL 12.30 Item
28)
14 – Jogger spring (P/O PL 12.30 Item 28)
15 – Timing pulley (P/O PL 12.30 Item 27)
& (PL 12.30 Item 28)
16 – Pivot tube (P/O PL 12.30 Item 27) &
(PL 12.30 Item 28)
17 – Idler (P/O PL 12.30 Item 27) & (PL
12.30 Item 28)
18 – Spring (P/O PL 12.30 Item 27) & (PL
12.30 Item 28)
19 – Jogger motor bracket (P/O PL 12.30
Item 27) & (PL 12.30 Item 28)
20 – Front jogger motor (MOT12-300)
(P/O PL 12.30 Item 27), Rear jogger
motor (MOT12-320) (P/O PL 12.30
Item 28)
21 – Paddle home actuator (P/O PL 12.50
Item 1)
22 – Belt holder front (P/O PL 12.30 Item
27)
23 023N01153 Jogger belt (REP 12.8)
24 – Front jogger arm (P/O PL 12.30 Item
27)
25 – Compiler front frame (P/O PL 12.30
Item 27)
26 007N01497 Paddle gear 56T
27 019N00973 Front jogger assembly (4250/4260)
(REP 12.5)
– 038N00494 Front jogger assembly (4150) (REP
12.5)
28 019N00972 Rear jogger assembly (4250/4260)
(REP 12.5)
– 038N00493 Rear jogger assembly (4150) (REP
12.5)
29 – E-Clip (Not Spared)
