Xerox WorkCentre 4150 Service Manual

January 2016
4-88
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.24
Repairs and Adjustments
REP 5.24 Pickup Guide Assembly (4265)
Parts List on PL 5.70
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Power off the machine. Disconnect the power cord.
2. Remove the DADF Pickup Assembly (REP 5.15).
3. Dislocate the Input Tray Assembly from its pivots on the DADF (Figure 1).

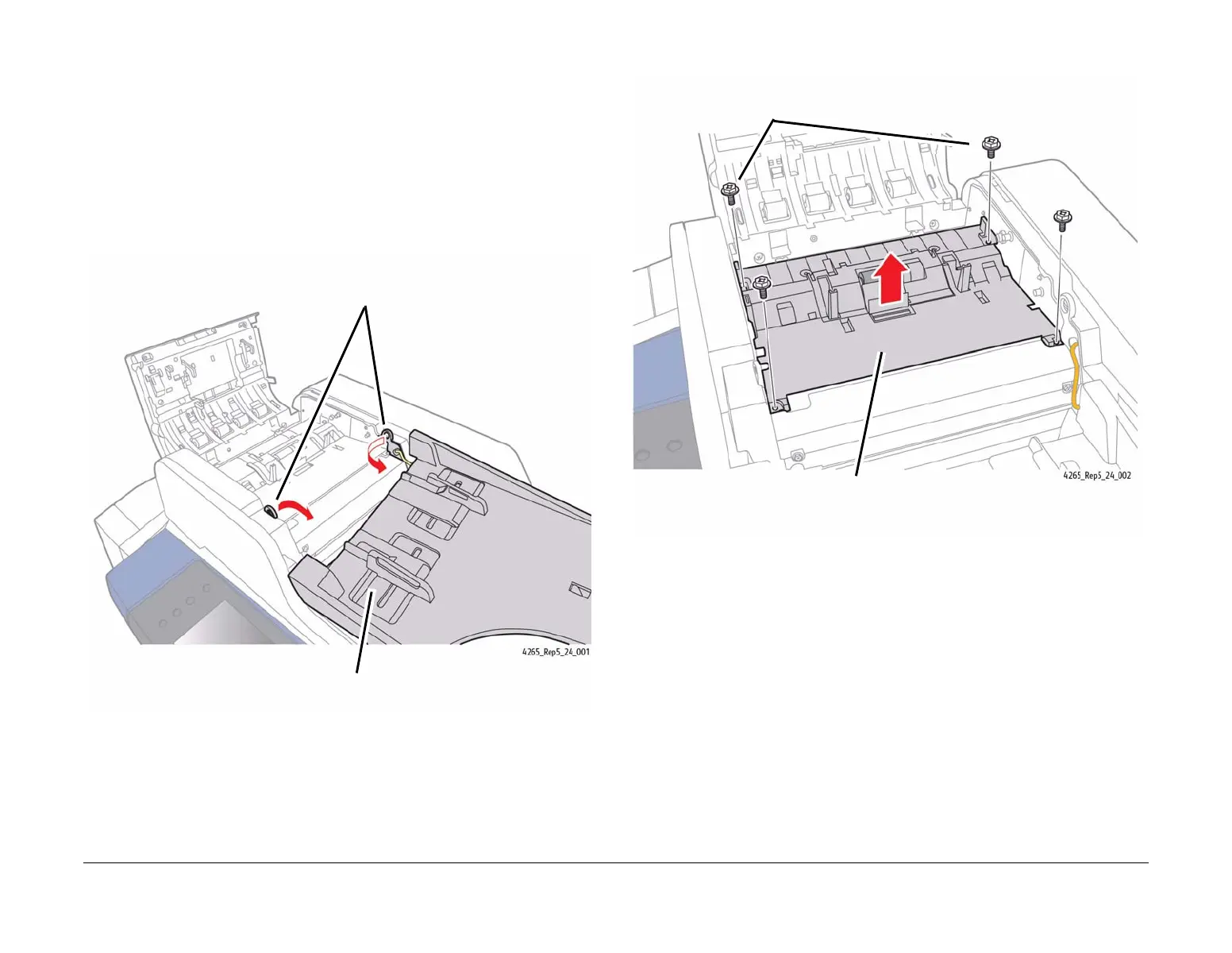

Figure 1 Dislocating the Input Tray Assembly
4. Remove the Pickup Guide Assembly from the machine (Figure 2).
Figure 2 Removing the Pickup Guide Assembly
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Dislocate the front and rear pivots on
the Input Tray Assembly.
2
Set the Input Tray on top of the DADF.
1
Remove the four mounting screws.
2
Remove the Pickup Guide Assembly
from the machine.
