Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 5.50
Parts List

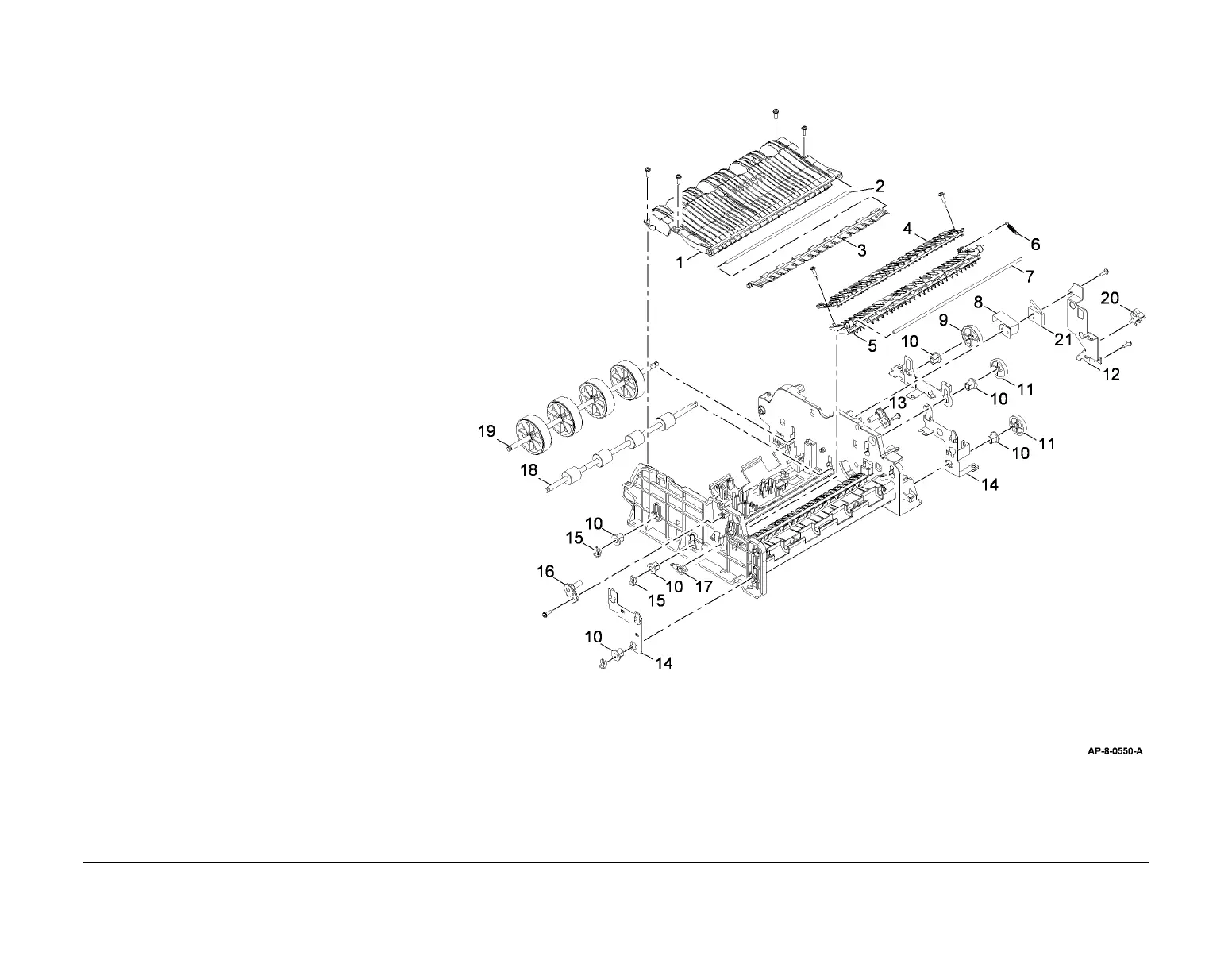

PL 5.50 DADF Assembly (6 of 7)
(4250/4260)
Item Part Description
1 – Lower guide (P/O PL 5.30 Item 26)
2 – Diverter shaft (P/O PL 5.30 Item
26)
3– Diverter (P/O PL 5.30 Item 26)
4 – Upper separation gate (P/O PL
5.30 Item 26)
5 – Lower separation gate (P/O PL
5.30 Item 26)
6 – Spring (P/O PL 5.30 Item 26)
7 – Separation guide shaft (P/O PL
5.30 Item 26)
8 – Switch actuator (P/O PL 5.30 Item
26)
9 – Gear (P/O PL 5.30 Item 26)
10 – Bearing (P/O PL 5.30 Item 26)
11 – Gear (P/O PL 5.30 Item 26)
12 – Ground bracket (P/O PL 5.30 Item
26)
13 – Rear stop (P/O PL 5.30 Item 26)
14 – Ground strip (P/O PL 5.30 Item 26)
15 – E-clip (Not Spared)
16 – Front stop (P/O PL 5.30 Item 26)
17 – Front separation guide bearing
(P/O PL 5.30 Item 26)
18 – Gate roll (P/O PL 5.30 Item 26)
19 – CVT roll (P/O PL 5.30 Item 26)
20 130N01274 Gate HP sensor (REP 5.11)
21 – Door open switch (S05-160) (P/O
PL 5.30 Item 26)
