Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 10.30
Parts List

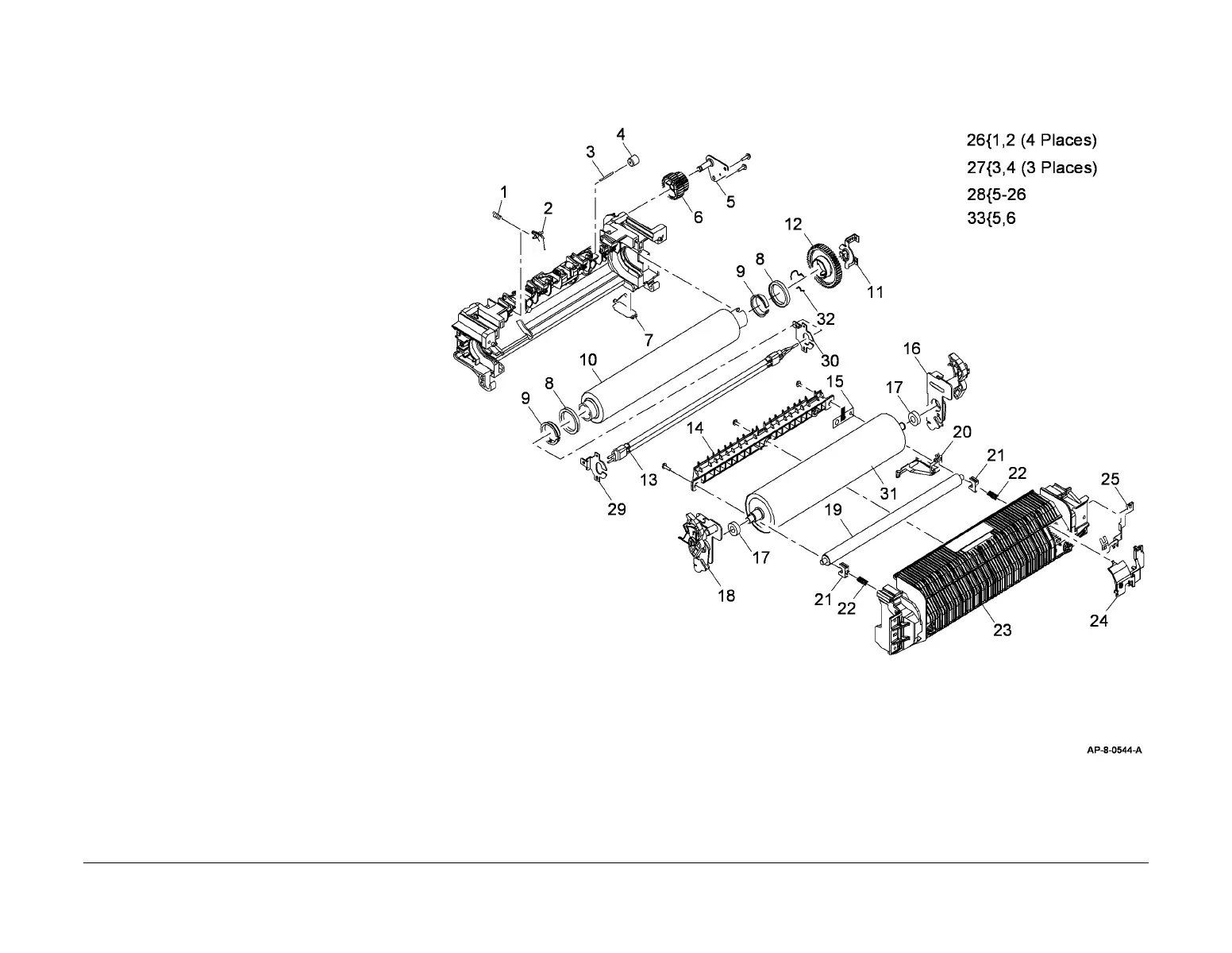

PL 10.30 Fuser (2 of 2)
(4250/4260/4265)
Item Part Description
1 – Stripper finger spring (P/O PL 10.28
Item 1)
2 – Stripper finger (P/O PL 10.28 Item 1)
3– Pin (P/O PL 10.28 Item 1)
4 – Roll (P/O PL 10.28 Item 1)
5 – Bracket (P/O PL 10.25 Item 1)
6 – Gear (P/O PL 10.28 Item 1)
7 – Ground strip (P/O PL 10.28 Item 1)
8 013N13885 Bearing (REP 10.7)
9 – Heat roller collar (P/O PL 10.28 Item
1) (REP 10.7)
10 022N02811 Heat roller (4265) (REP 10.7)
– 022N02372 Heat roller (4250/4260) (See Note)
(REP 10.7)
11 – Heat roller bracket (P/O PL 10.28
Item 1)
12 – Heat roller gear (P/O PL 10.28 Item 1)
13 122N00282 Heat lamp (220V) (XE) (REP 10.7)
– 122N00290 LAMP-HALOGEN (115V)
– 122N00291 LAMP-HALOGEN (230V)
– 122N00283 Heat lamp (110V) (USSG/XCL)
(REP 10.7)
14 – Input guide (P/O PL 10.28 Item 1)
15 – Ground brush (P/O PL 10.28 Item 1)
16 – Jam lever assembly (Right) (P/O PL
10.28 Item 1)
17 013N13847 Bearing (REP 10.7)
18 – Jam lever assembly (Left) (P/O PL
10.28 Item 1)
19 006N01329 Cleaning shaft
20 – Ground strip (P/O PL 10.28 Item 1)
21 – Pressure bearing (P/O PL 10.28 Item
1)
22 – Spring (P/O PL 10.28 Item 1)
23 – Fuser cover (P/O PL 10.28 Item 1)
24 – Ground strip cover (P/O PL 10.28
Item 1)
25 – Ground strip (P/O PL 10.28 Item 1)
26 – Stripper finger assembly (P/O PL
10.28 Item 1)
27 – Roll assembly (P/O PL 10.28 Item 1)
28 – Fuser assembly (P/O
PL 10.28 Item
1)
29 – Front heat lamp bracket (P/O PL
10.28 Item 1)
30 – Rear heat lamp bracket (P/O PL
10.28 Item 1)
31 022N02374 Pressure roll (See Note)
32 – Wire clip (P/O PL 10.28 Item 1)
33 030N00720 Gear and bracket assembly
NOTE: HFSI. To reset the HFSI count, go to GP 16.
