Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 10.10
Parts List

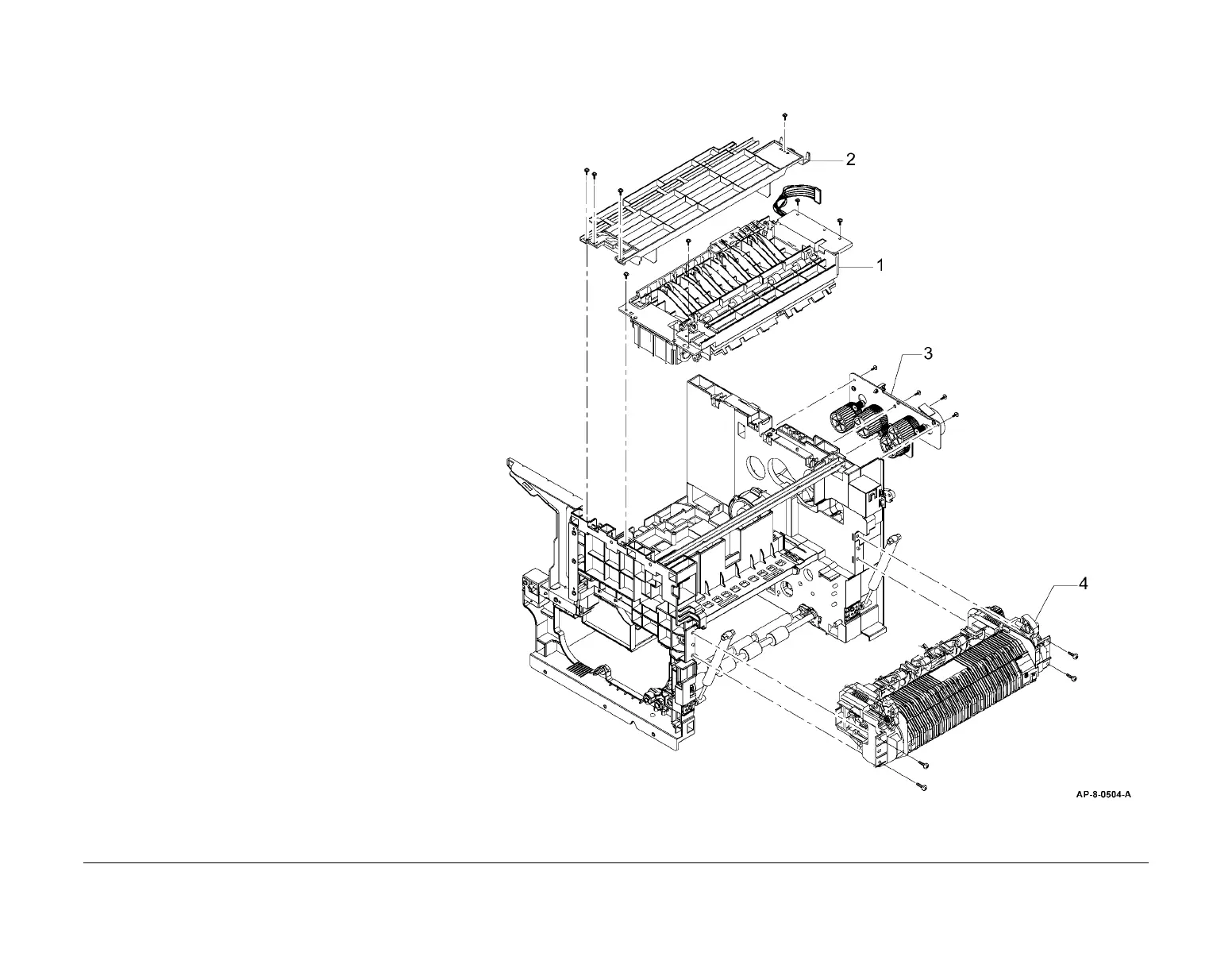

PL 10.10 Fuser and Exit Assemblies
Item Part Description
1 – Exit assembly (REF: PL 10.15 Item
1) (REP 10.2)
2 002N02566 Exit guide assembly (REP 10.2)
3 – Exit drive assembly (REF: PL 10.20
Item 1)
4 – Fuser assembly (REF: PL 10.25
Item 1) (4150) (REP 10.1)
4A – Fuser assembly (REF: PL 10.28
Item 1) (4250/4260) (REP 10.1)
