Xerox WorkCentre 4150 Service Manual

January 2016
4-149
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 10.3
Repairs and Adjustments
REP 10.3 Duplex Solenoid Assembly and Duplex Gate
Parts List on PL 10.15
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the Exit Assembly (REP 10.2).
2. Remove the Support Bracket (Figure 1).
NOTE: When the Support Bracket is removed, the back of the Duplex Gate will be
released.

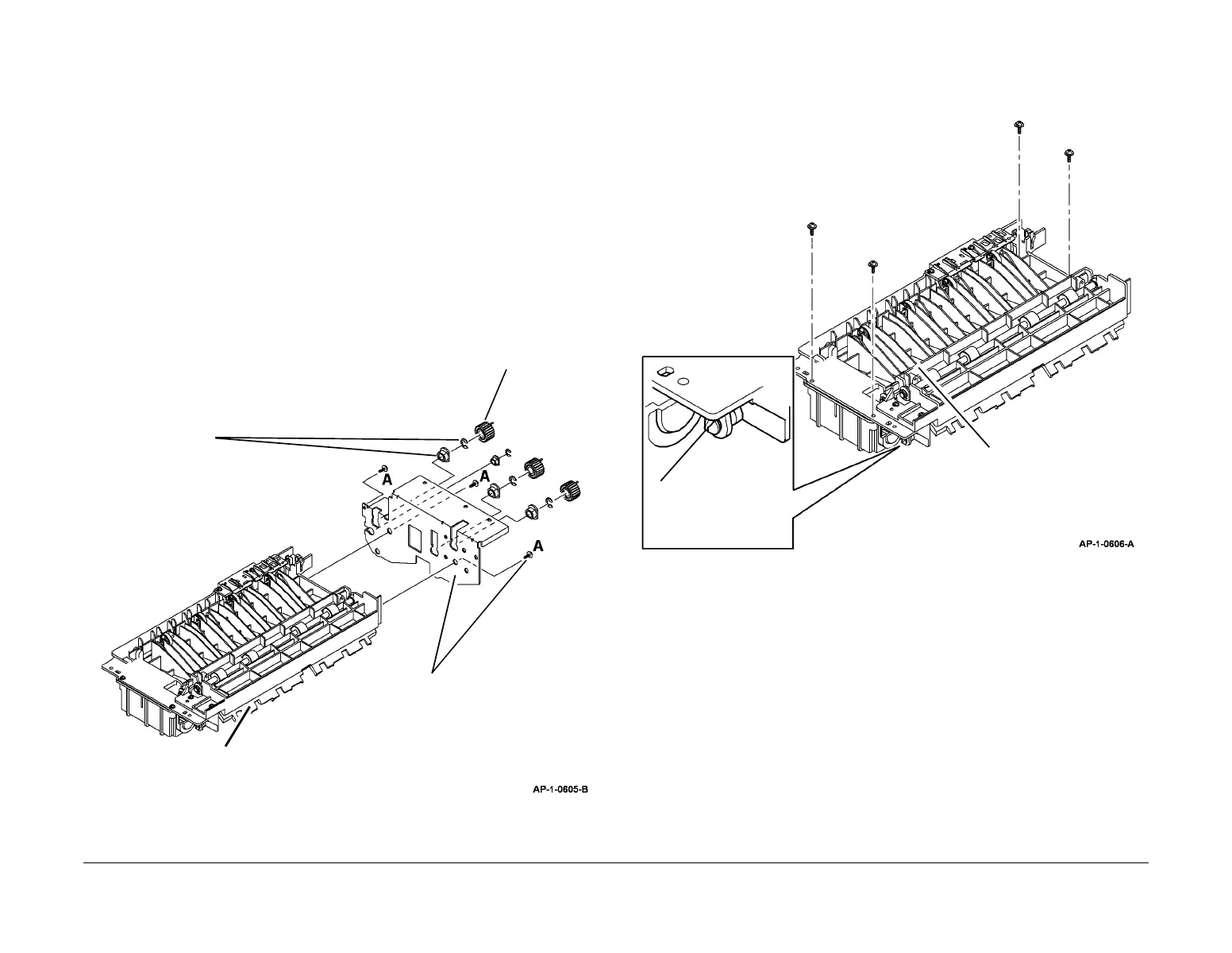

Figure 1 Removing the Support Bracket
CAUTION
Take care when releasing the front of the duplex gate. The clip is easily broken.
3. Remove the Duplex Gate and Exit Assembly Upper Guide (Figure 2).
Figure 2 Removing the Duplex Gate and Exit Assembly Upper Guide
1
Remove the
3 gears.
2
Remove the 4 E-clips
and the 4 bearings.
3
Remove 3 screws marked A.
Duplex Gate
(see NOTE)
4
Route the wire harness out of the
Bracket and remove the Bracket.
1
Release the front of
the duplex gate (see
CAUTION).
3
Move the exit assembly
upper guide to expose
the duplex solenoid.
2
Remove 4 screws.
