Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 7.15
Parts List

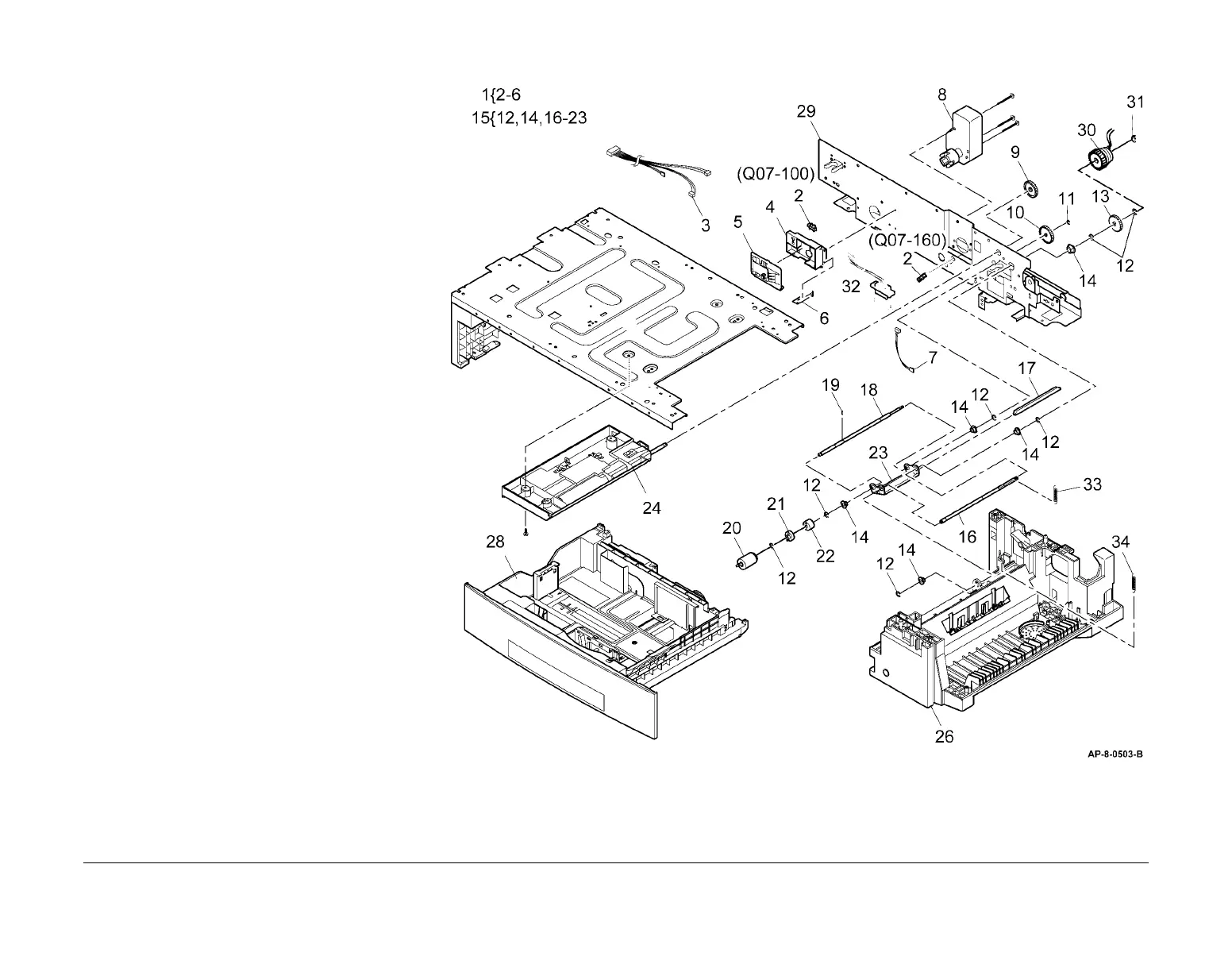

PL 7.15 Tray 1 Frame Assembly (1 of
2)
Item Part Description
1 130N01560 Paper size detect assembly
(4250/4260/4265) (REP 7.3)
– 130N01460 Paper size detect assembly (4150)
(REP 7.3)
2 130N01274 Tray 1 home position sensor
(Q07-100), Tray 1 paper low sensor
(Q07-160)
3 – Harness (P/O PL 7.15 Item 1)
4 – Housing (P/O PL 7.15 Item 1)
5 140N63404 Paper size detect PWB
(4250/4260) (REP 7.3)
– 130N01461 Paper size detect PWB
(4150/4265) (REP 7.3)
6 – Grounding strip (P/O PL 7.15 Item
1)
7 – Sensor harness (Not Spared)
8 127N07488 Tray 1 elevating motor
(MOT04-510)
9 007N01531 Tray 1 feed gear
10 007N01532 Retard roll gear
11 – E-Clip (Not Spared)
12 – E-Clip (Not Spared)
13 007N01498 Pick-up gear
14 – Bearing (P/O PL 7.15 Item 15)
15 022N02230 Retard assembly
16 – Drive shaft (P/O PL 7.15 Item 15)
17 – Actuator (P/O PL 7.15 Item 15)
18 006N01299 Retard shaft
19 006N01293 Pin
20 022N02232 Retard roll assembly
21 022N02231 Drive dog coupling
22 017N00259 Drive dog
23 – Retard bracket (P/O PL 7.15 Item
15)
24 – Tray feed assembly (REF: PL 8.10
Item 1)
25 – Not used
26 – Right hand base (REF: PL 7.17)
(Not Spared)
27 – Not used
28 – Casette (REF: PL 7.10)
29 – Rear panel (Not Spared)
30 005N01139 Pick-up clutch (CL08-810)
(4250/4260/4265)
– 005N01085 Pick-up clutch (4150)
31 – K-L Clip (Not Spared)
32 152N11765 Tray connector (4250/4260/4265)
33 009N01596 Spring
34 – Feed assembly spring (REF: PL
8.10 Item 16)
NOTE: 1. Roll Assy shipped one Roll per bag. CSE must
order three: Nudger Roll, Feed Roll, and Retard Roll. 2. Tray
Connector (Item32) is compatible with 4150, so long as the
included Wire Harness is removed. (Use the old Wire Har-
ness currently on the machine.)
