ENGINE

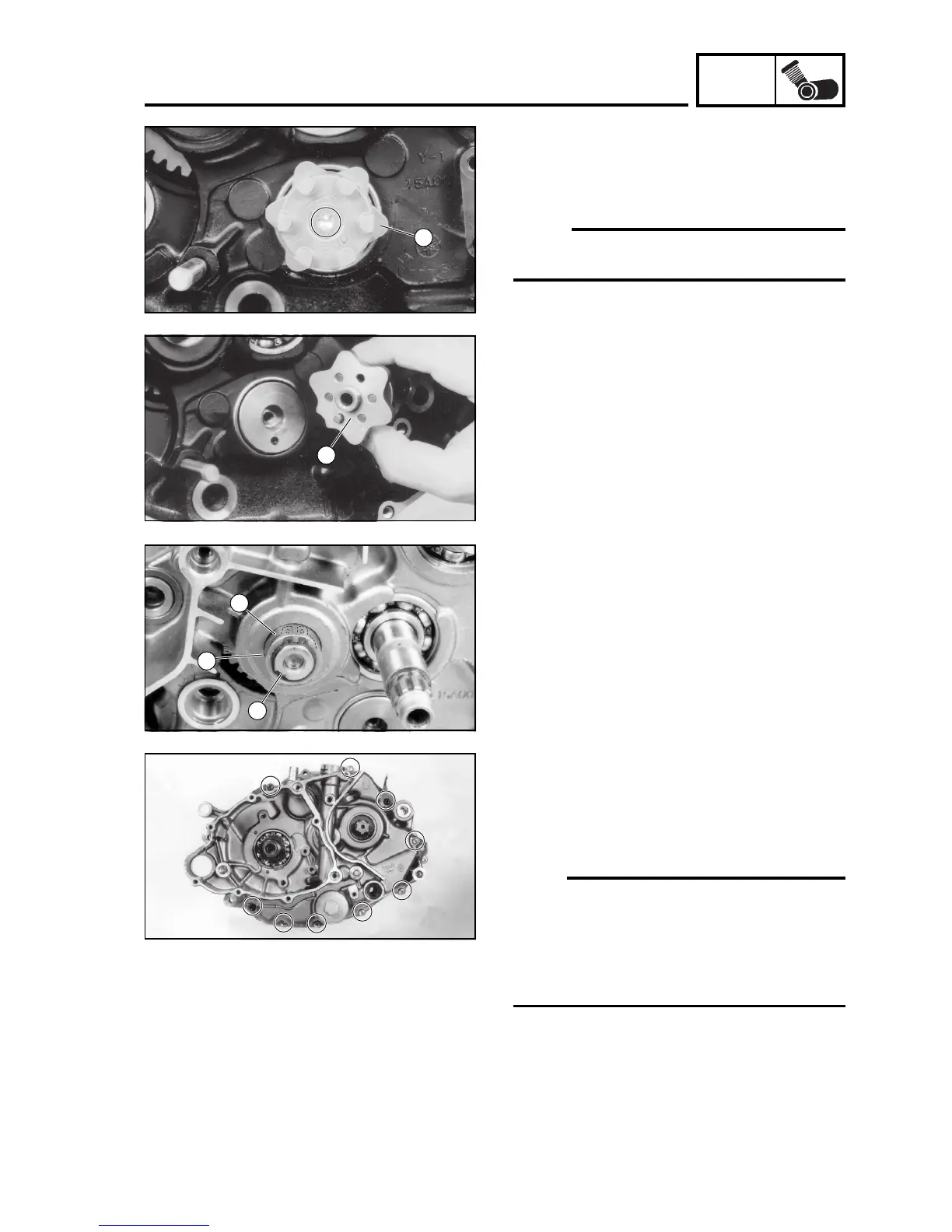

ENGINE DISMOUNTING
4-19
NOTE:
• Loosen the bolts ¼ turn, then, remove
the bolts.
• Loosen the bolts with higher numbers
first.
• The numbers on the case indicate the
tightening order.
1. Remove:
• Bolts (case)
CASE (RIGHT)
NOTE:
When removing the section, the dowel pin
2 may fall. Take care not to lose it.
2. Remove:
• Section 1
Use a wrench.
3. Remove:
• Lock 1
• Spacer 2 (Driving shaft)
• Lock 3
1
1
2
3
3
8
7
1
6
5
4
10
2
9
2

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
