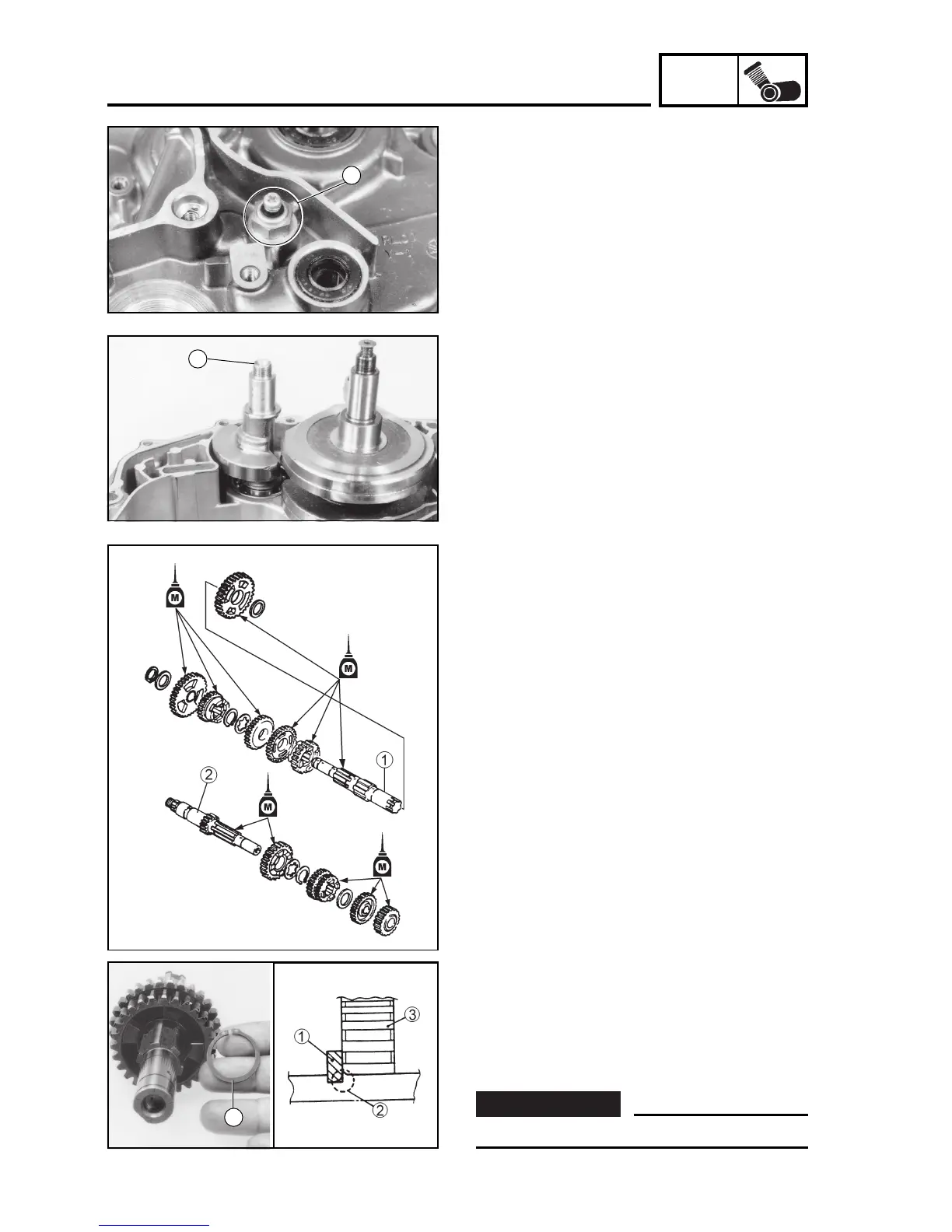

ENGINE
BALANCER, TRANSMISSION AND
SHIFTING FORK
• Lock 1
Install the beveled side 2 facing the gear
3.
3. Apply:
• Molybdenum disulfide-based oil
(to main and driven shafts and gears)
4. Install:
• Driven shaft assembly 1
• Main shaft assembly 2
2. Install:
• Balancer shaft 1
1. Install:
• Dead center switch 1
ENGINE MOUNTING AND ADJUSTMENTS
4-56
1
1
1
Always use a new lock.
V
WARNING

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
