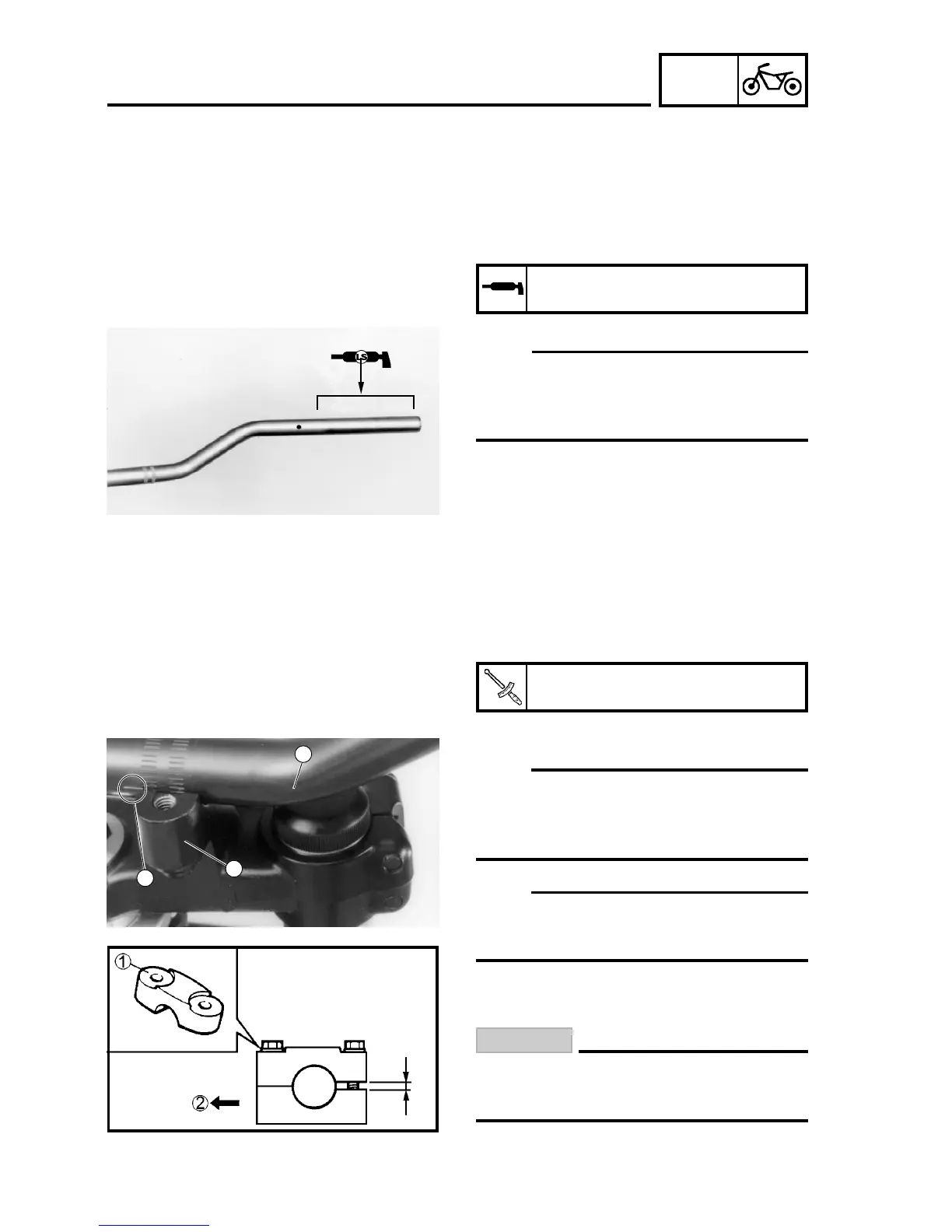

FRAME
INSTALLATION
COLUNA DE DIREÇÃO E GUIDÃO
6-47
2. Install:
• Throttle grip
• Handle-bars
NOTE:
Before installing the throttle grip on the
handle-bars, apply a thin layer of lithium-
based grease to the right end of the handle-
bars.
HANDLE-BARS
Reverse the "REMOVAL" procedures.
1. Lubricate:
• Handle-bars
Lithium-based grease
Screw (handle-bars):
15 N.m (1.5 kgf.m; 11 ft.lb)
2
1
3
Tighten the front handle-bars fastener
screws first and, then, tighten the rear
screws.
2 Front
CAUTION:
NOTE:
The upper handle-bars fastener should be
installed with the punch mark (1) towards
the front part.
NOTE:
Align the mark 2 on the handle-bars 1
with the upper end of the lower right
handle-bars fastener 3 and install the
handle-bars.

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
