FRAME
6-9
FRONT BRAKE
Generally, the brake disc components do
not need to be dismounted.
• Do not dismount components, unless
absolutely necessary.
• Do not apply solvents to the brake internal
components.
• Do not use contaminated brake fluid for
cleaning.
• Prevent the brake fluid from reaching the
eyes.
• Prevent the brake fluid from contacting
painted or plastic surfaces.
• Do not disconnect any hydraulic system
component. Otherwise, it will be
necessary to dismount, drain, clean and,
then, replenish with fluid and bleed
properly.
CAUTION:
VV
VV
V
WARNING
Support the motorcycle firmly preventing
it from falling.

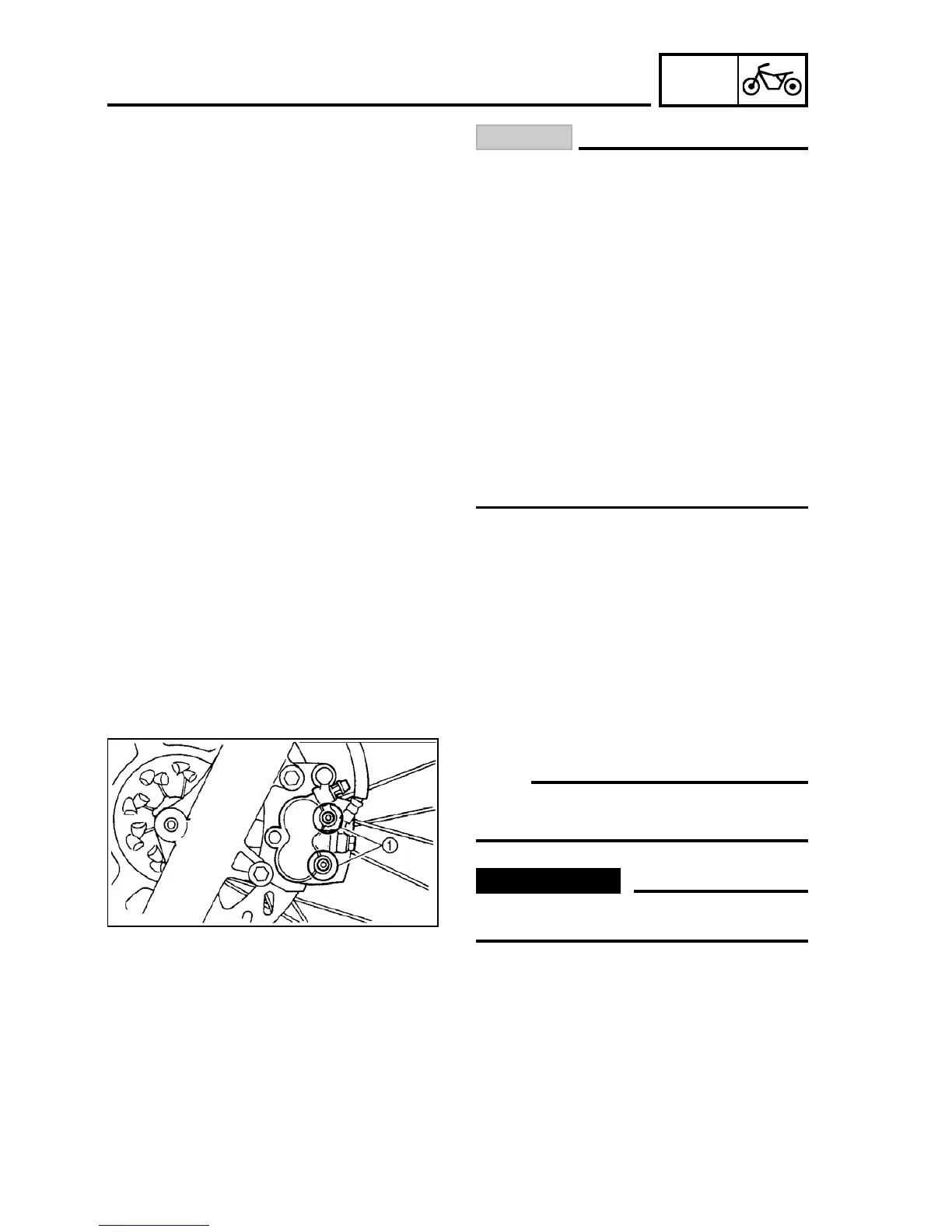

BRAKE PAD REPLACEMENT
1. Loosen:
• · Pad pins 1
NOTE:
The disconnection of the brake caliper and
hose is not required for replacing pads.

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
