Yamaha ttr230 User Manual

ELECT
ELECTRIC STARTING SYSTEM
7-15

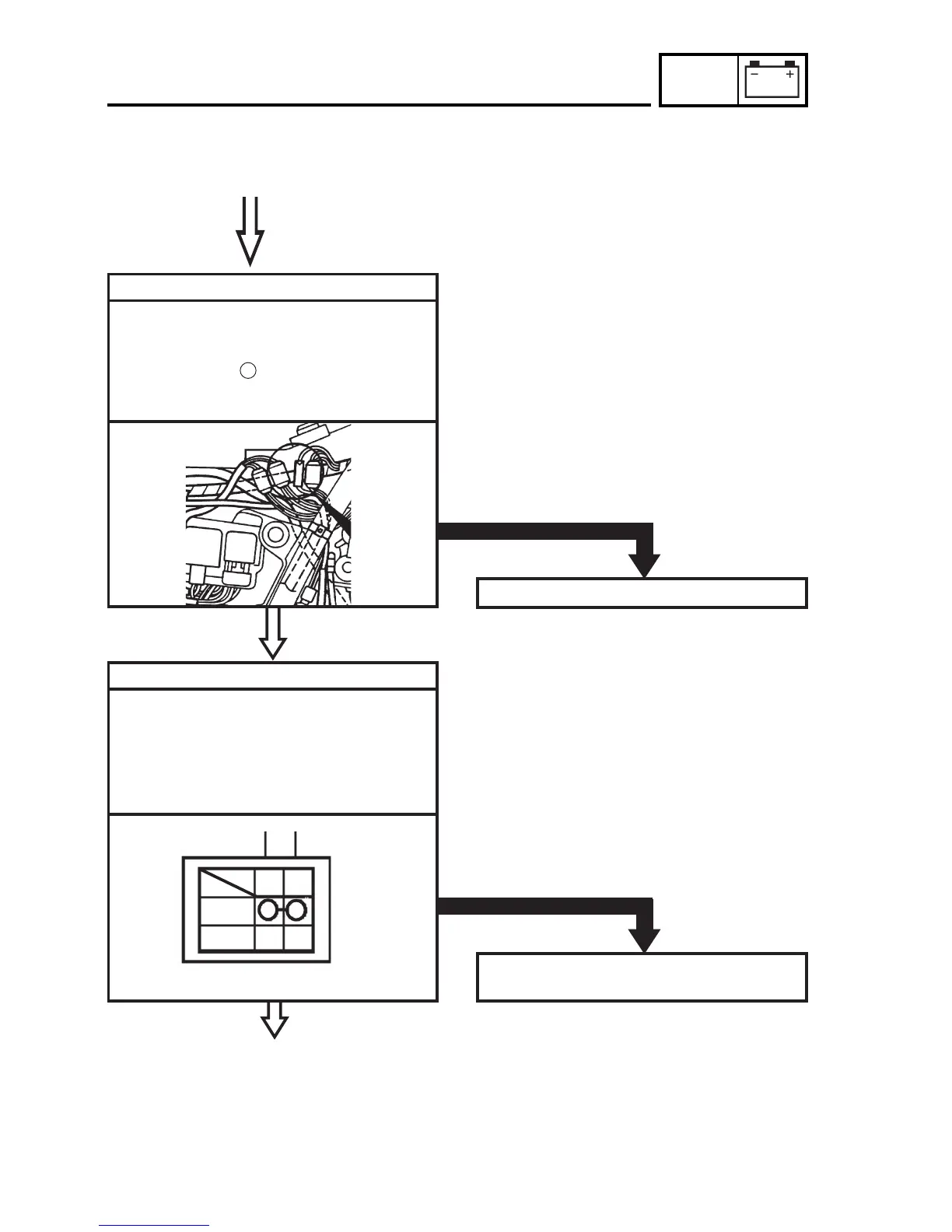

5. Neutral switch
• Disconnect the neutral switch wire
from the harness.
• Check the continuity between wires
“LIGHT BLUE” 1 and “GROUND.”
See Section
“SWITCH CHECKS.”
CORRECT
6. Clutch switch
• Disconnect the clutch switch
connector from the harness.
• Check the continuity between wires
“BLUE/YELLOW (LY) and BLACK (B).”
See Section
“SWITCH CHECKS.”
Neutral switch defective – Replace.
INCORRECT
CORRECT
Clutch switch defective – Replace.
INCORRECT
ON
B
LY
OFF

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
