FRAME

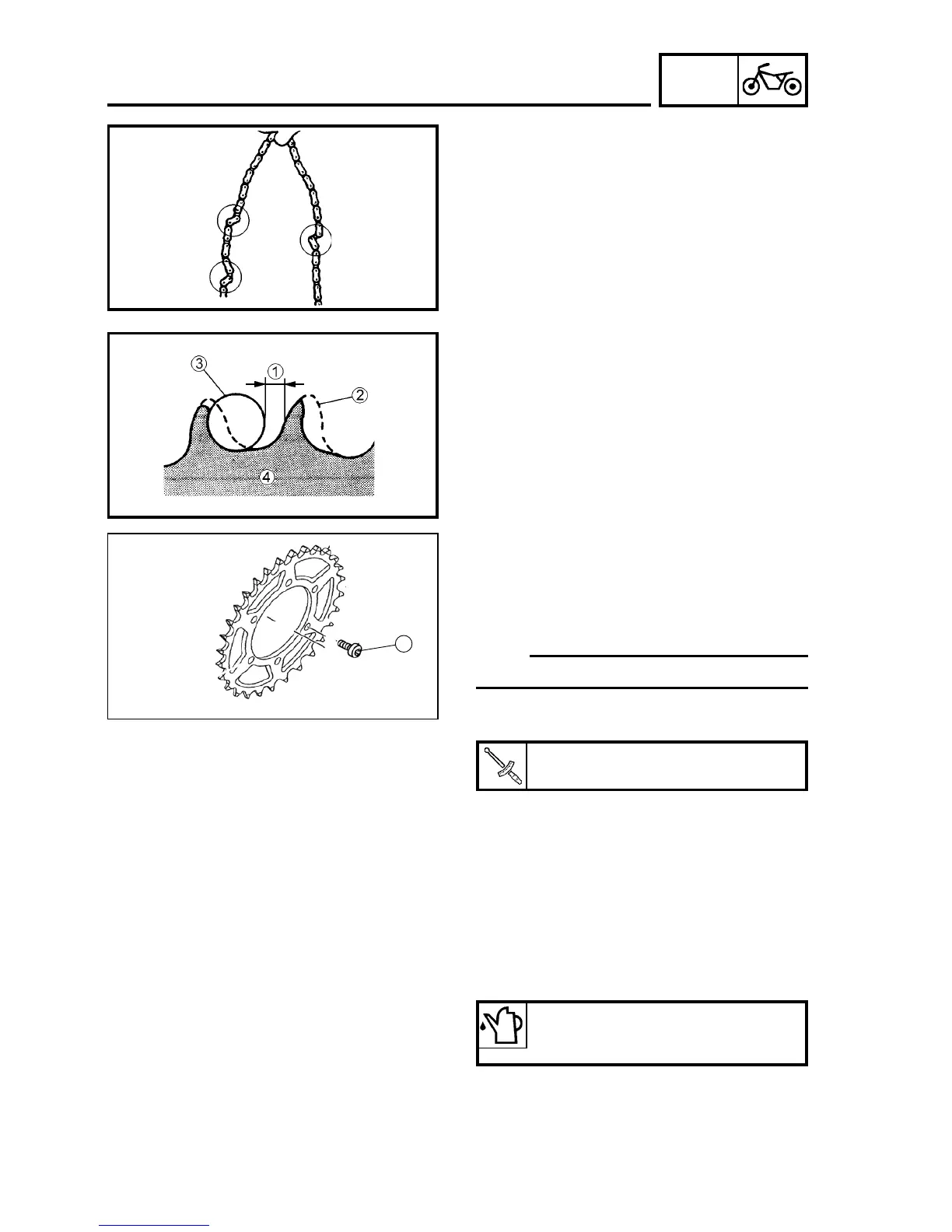

4. Check:
• Climbing of the transmission chain links
- Clean and lubricate or replace.
INSTALLATION
NOTE:
Tighten the screws in a cross pattern.
Replacement steps
• Remove the screws 1. Remove sprocket.
• Install a new sprocket.
5. Check:
• Pinion gear
• Sprocket
Wear over ¼ of tooth = > Replace ratio.
Inclined tooth = > Replace ratio.
2 Correct
3 Roller
4 Pinion gear
*************************************
Screws (sprocket):
34.5 N.m (3.45 kgf.m; 25 ft.lb)
*************************************
TRANSMISSION RATIO
6-67
Reverse the "REMOVAL" procedures.
1. Lubricate:
• Transmission chain
• Chain seam (new)
1
Transmission chain lubricant:
Engine oil SAE 20W40

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
