INSP
ADJUS

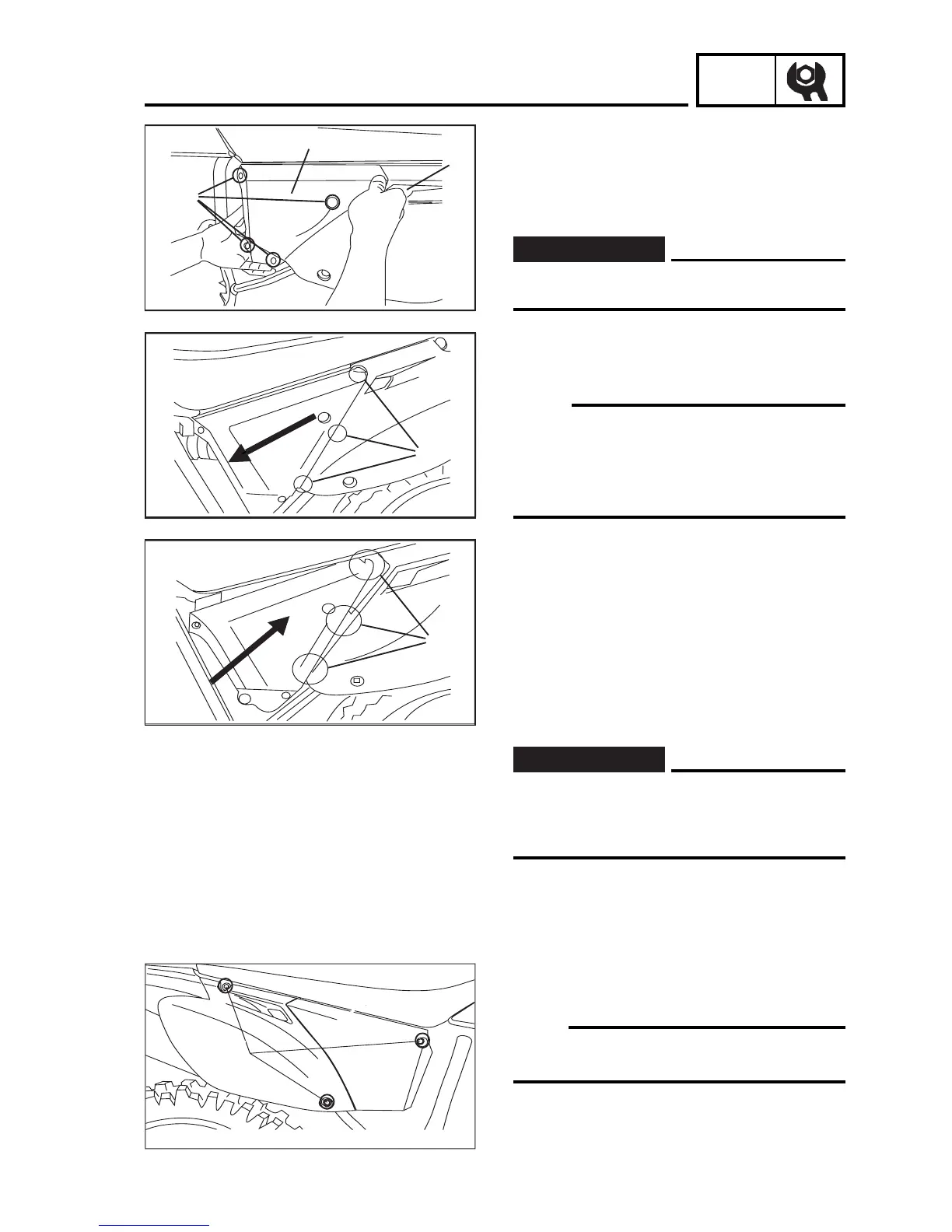

SEAT, FUEL TANK, AND COVERS
SEAT, FUEL TANK AND COVERS
REMOVAL
3-3
Support the motorcycle firmly preventing
it from falling.
V
WARNING
2. Remove:
 Side cover (RH)
remove the bolts 1.
NOTE:
Remove the 3 bolts 1. Pull the side cover
towards you
1. Remove:
 Side cover (LH)
Remove the bolts 1
NOTE:
Pull the cover towards you. To simplify, use
the opening 3 on the side cover 4.
Push the cover in the direction indicated to
release the tongues 5.
Installation:
 Place the cover in the original position
and install the bolts
Verify that the air filter cover is firmly
installed, otherwise dust can enter the filter
resulting in engine damage.
V
WARNING
1
1
2
3
4
Installation:
 Install the cover under the seat.
 Place the cover, fastening the tongues
1 as shown.
• Install the cover under the seat.
5
1

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
