INSP

ADJUS

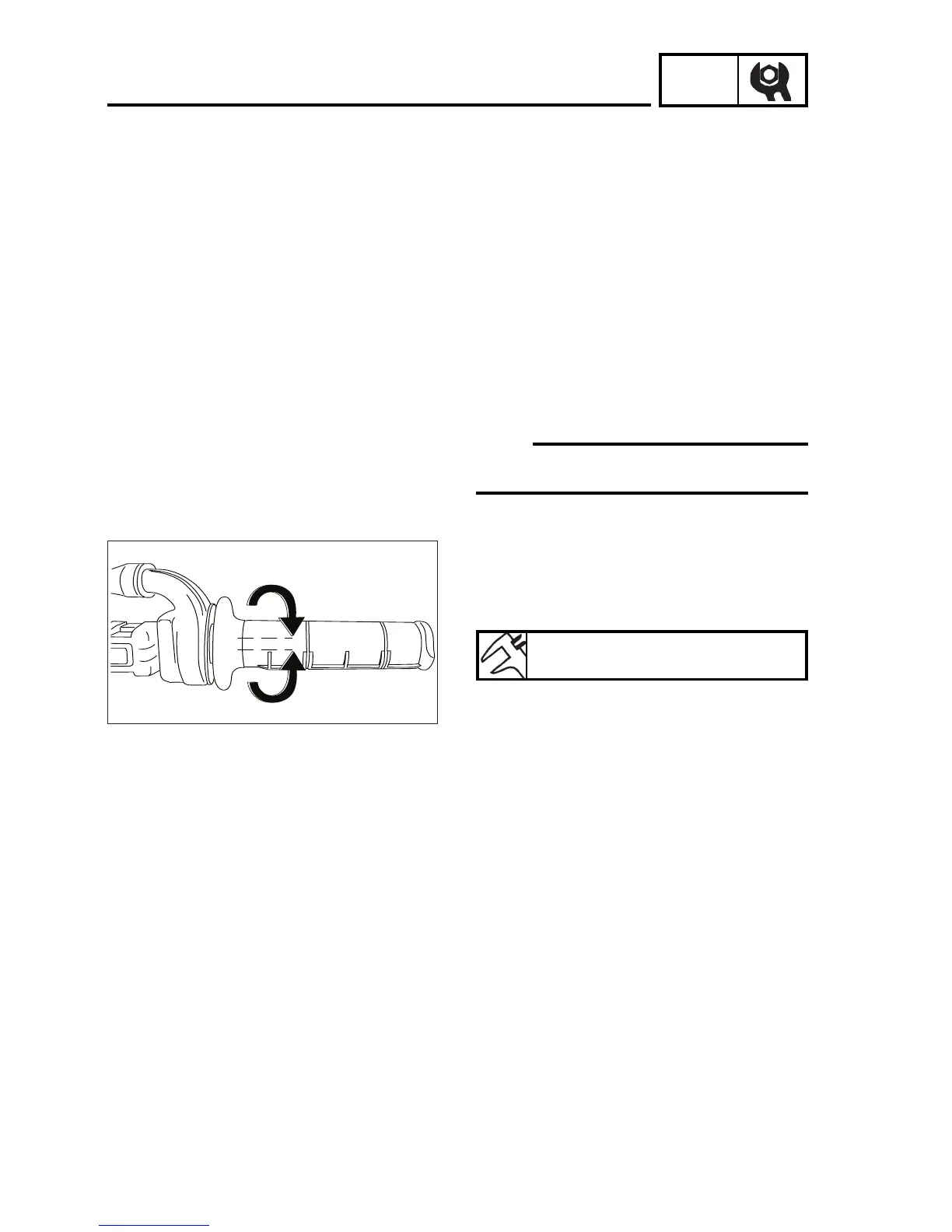

THROTTLE CABLE FREE PLAY ADJUSTMENT

THROTTLE CABLE FREE PLAY

ADJUSTMENT

3-10

4. Remove:

 Tachometer

5. Adjust:

 Throttle cable free play

See Section “THROTTLE CABLE FREE

PLAY ADJUSTMENT.”

NOTE:

Before adjusting the throttle cable free play,

adjust the idle speed.

1. Check:

 Throttle cable free play 1 Out of

specification => Adjust.

2. Adjust:

 Throttle cable free play

Throttle cable free play:

3-5 mm (0.12 ~0.20 in)

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
