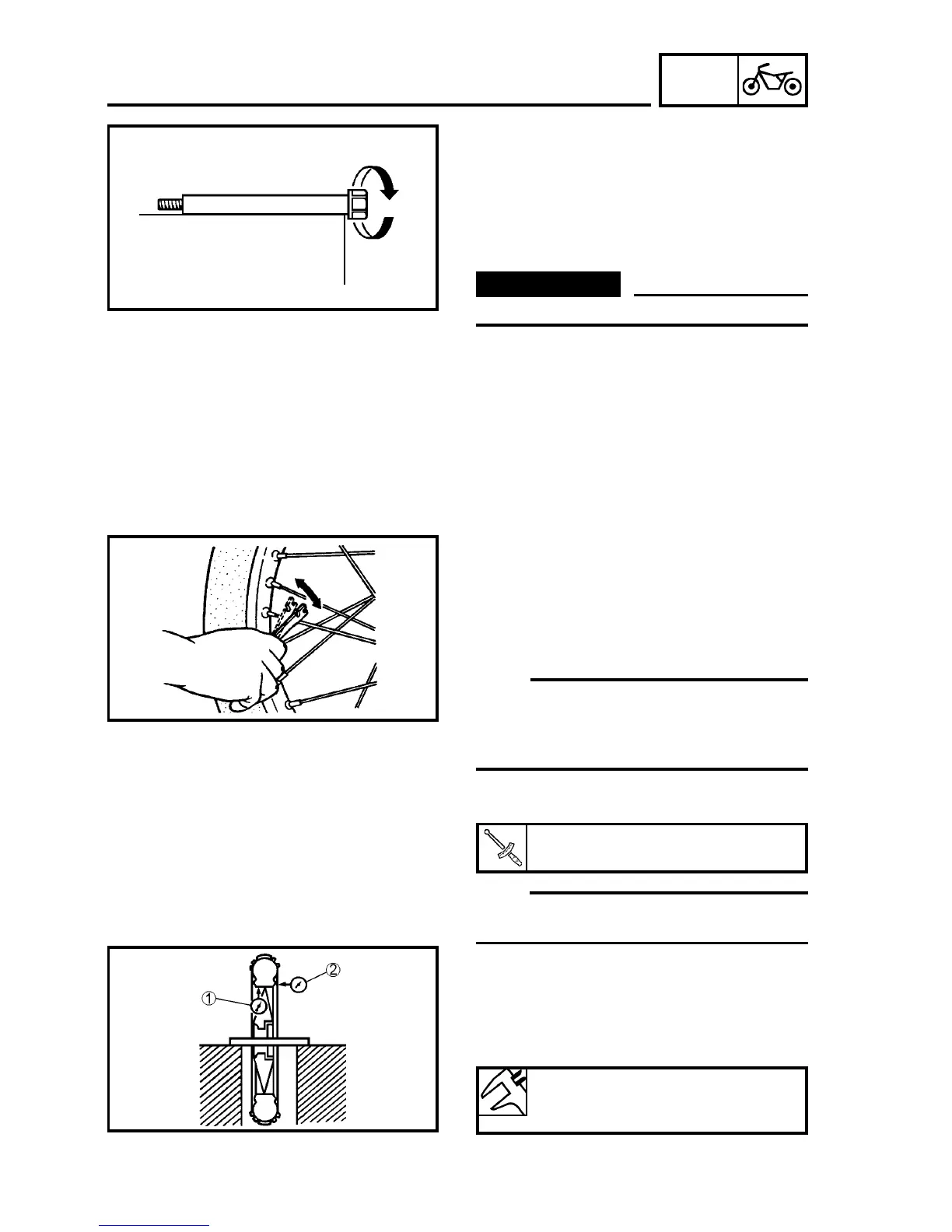

FRAME
6-3
FRONT WHEEL
INSPECTION
Rim warping limit:
Vertical
11
11
1 : 2.0 mm
Side
2 2
2 2
2 :2.0 mm
6. Measure:
• Wheel warping
Out of specification => Check the
wheel and roller bearing clearance.
NOTE:
Check the wheel for warping after spoke
tightening.
Nipple:
2 N.m (0.2 kgf.m; 1.4 ft.lb)
5. Tighten:
• · Loose spokes
NOTE:
If a sharp metallic sound is heard, the spoke
is tight.
If a deep metallic sound is heard, the spoke
is loose.
3.Check:
• Tire
Damage/wear => Replace.
See Section "TIRE INSPECTION,"
CHAPTER 3.
• · Wheel
Warping/damage => Replace.
See Section "WHEEL INSPECTION,"
CHAPTER 3.
4.Check:
• Spokes
Warping/damage => Replace.
Loose spokes => Tighten.
Turn the wheel and beat the spokes using
a screwdriver.
VV
VV
V
WARNING
Do not try to straighten out the axle.
1. Remove corrosion from parts.
2. Verify:
• Axle
Roll the axle on a flat surface. Warping
=> Replace.

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
