ENGINE
4-45

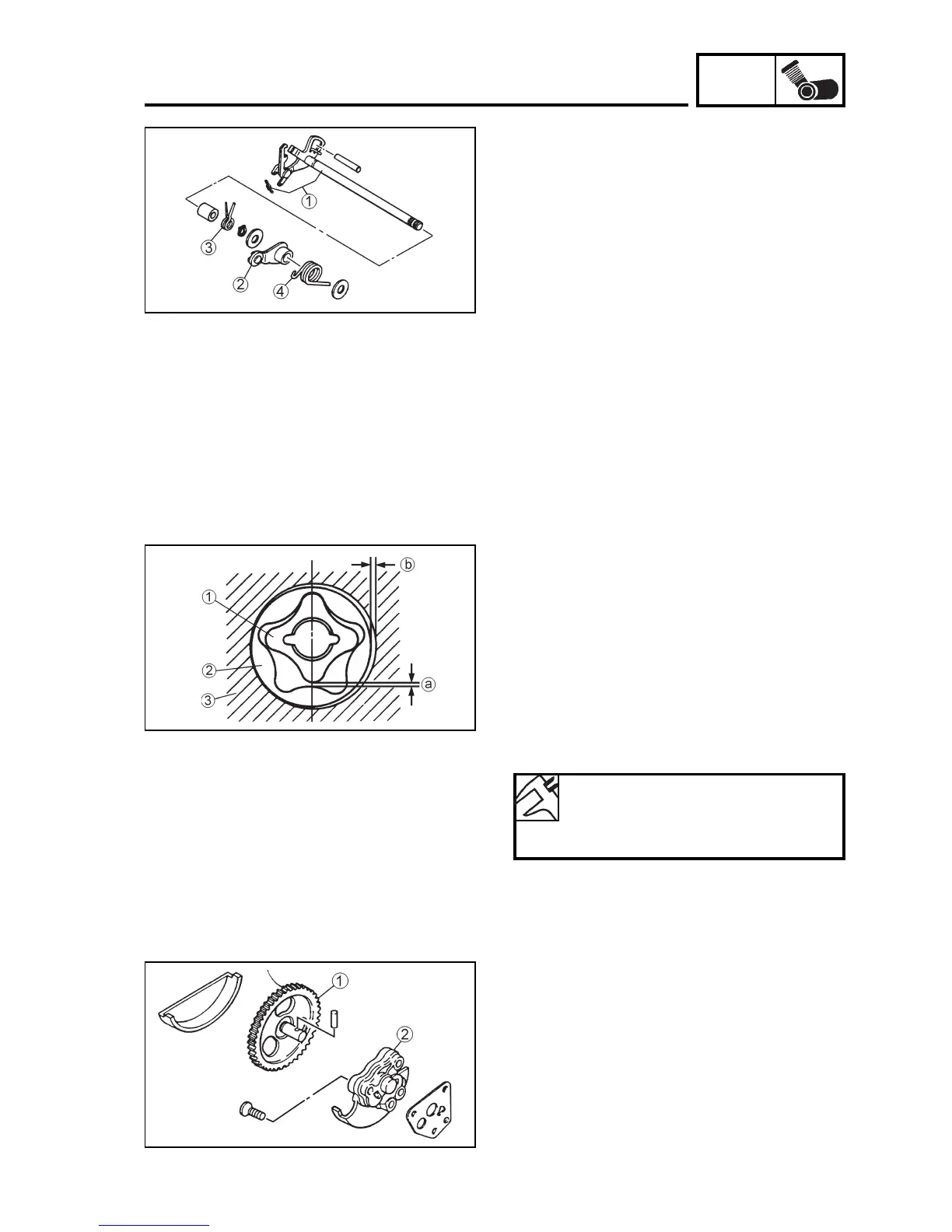

INSPECTION AND REPAIR
2. Check:
• Oil pump driving gear 1
• Oil pump 2
Wear/breakage/damages => Replace.
1. Measure:
• Clearance a
(between the internal rotor 1 and the
external rotor 2)
• Side clearance b
(between the external rotor 2 and the
pump case 3)
Out of specification => Replace oil pump.
OIL PUMP AND FILTER STRAINER
7. Check:
• Shift shaft 1
• Stop stem 2
Damages/warping/wear => Replace.
• Torsion spring 3
• Return spring 4
Breakage/damages => Replace.
Clearance a
0.15 mm
Side clearance b:
0.04 ~ 0.09 mm

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
