SPEC
1 Main harness
2 Tank breather hose
3 Accelerator cables (main and return)
4 Carburetor draining hose
5 Carburetor draining hose (right side)
6 Carburetor draining hose (left side)
7 Engine breather hose
8 Dead point switch wire

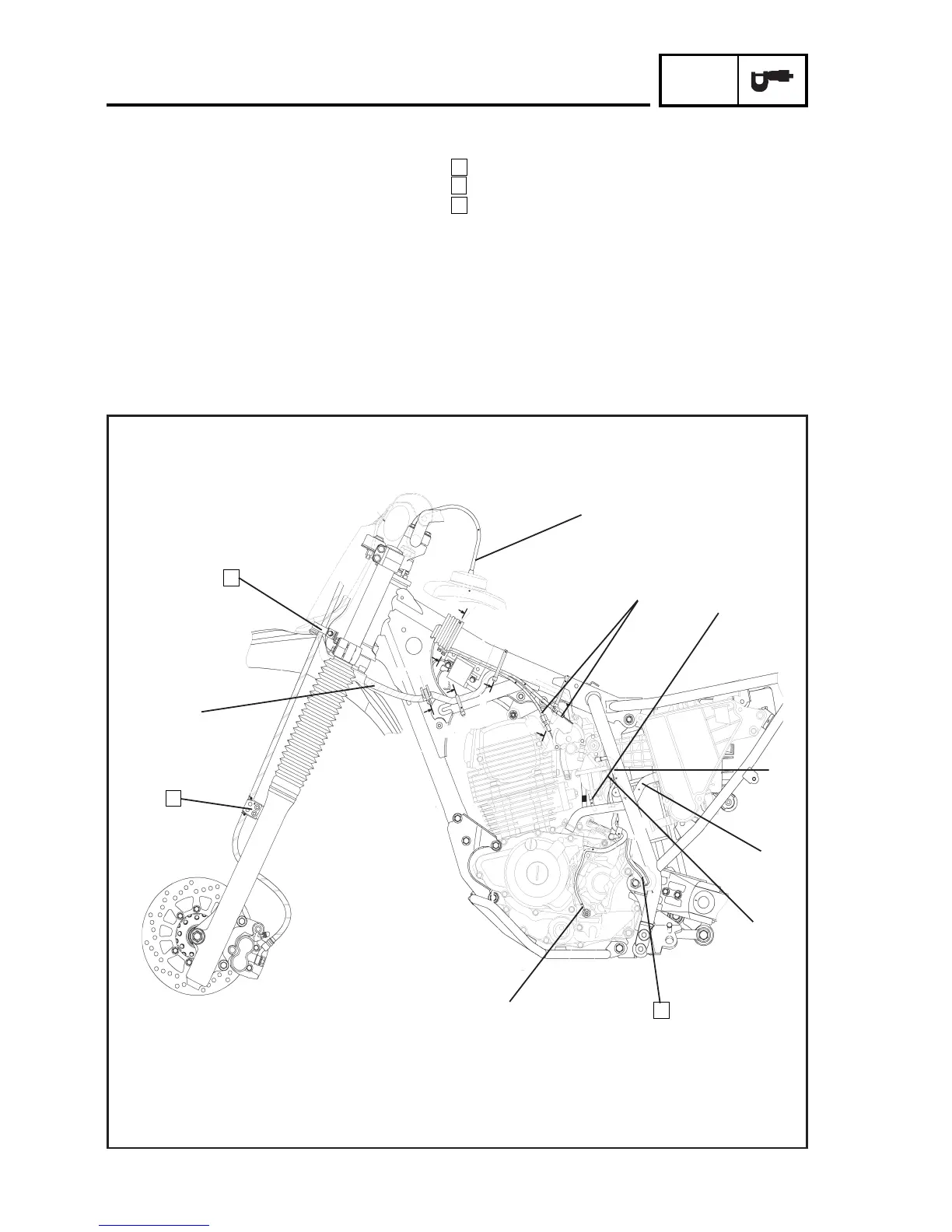

CABLE ROUTING
MOTORCYCLE (LEFT SIDE)
A Route the brake hose through the guide.
B Fasten the brake hose as per the figure.
C The final draining hose cutting shall face the motorcycle
rear side.
4
1
C
B
A
3
2
8
6
7
5
2-25

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
