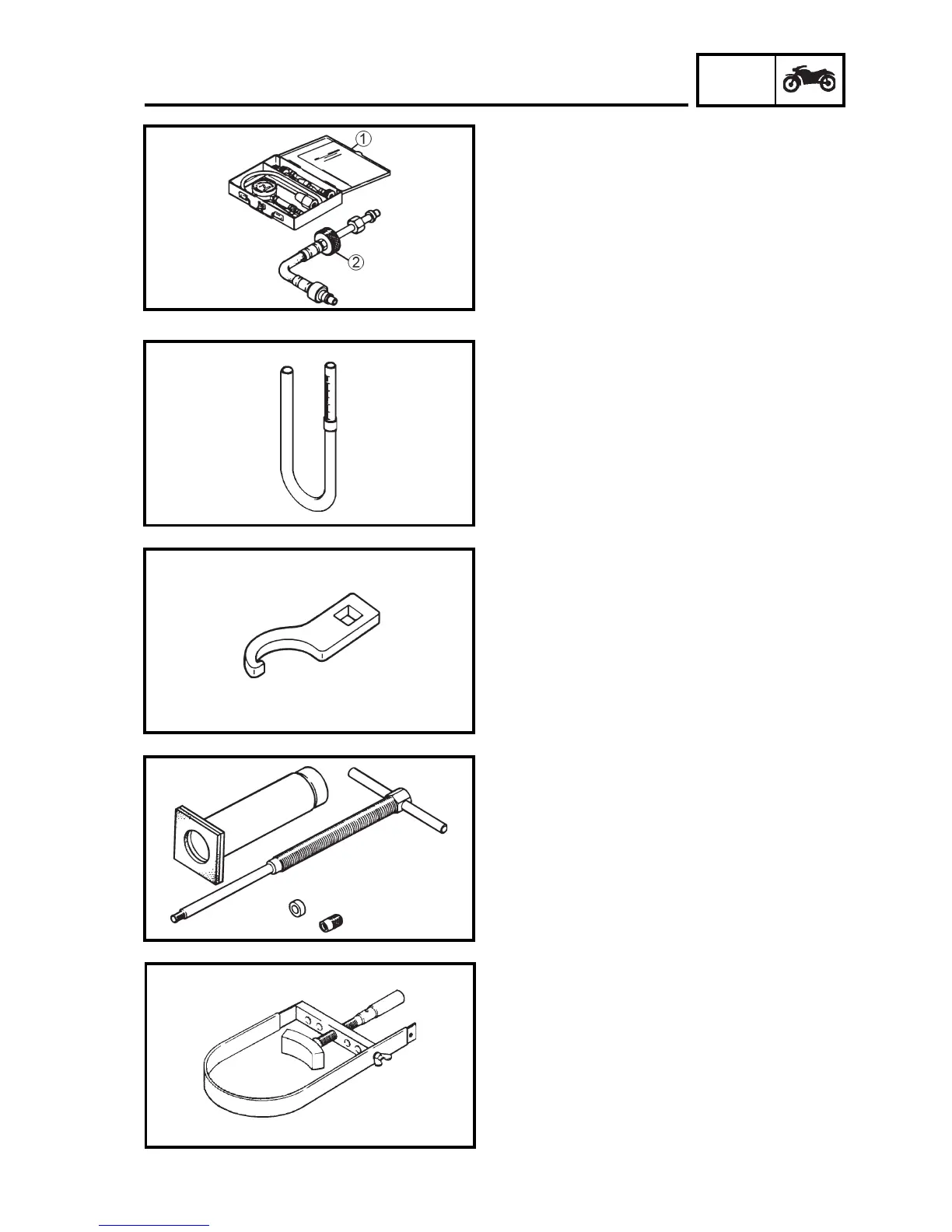

SPECIAL TOOLS

1-5

1. Piston pin puller

90890-01304

This tool is used for removing the piston

pin.

FOR ENGINE SERVICES

6. Castellated nut wrench

90890-01403

This tool is used for removing the handle

bar nut.

5. Fuel level meter

90890-01312

This meter is used to measure the fuel

level in the carburetor bowl.

4. Compression meter

90890-03081 - 1

Adapter:

90890-04082 - 2

This meter is used for measuring the

engine compression.

2. Rotor fastener

90890-01701

This tool is used to fasten the rotor when

removing or installing the rotor fastening

nut.

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
