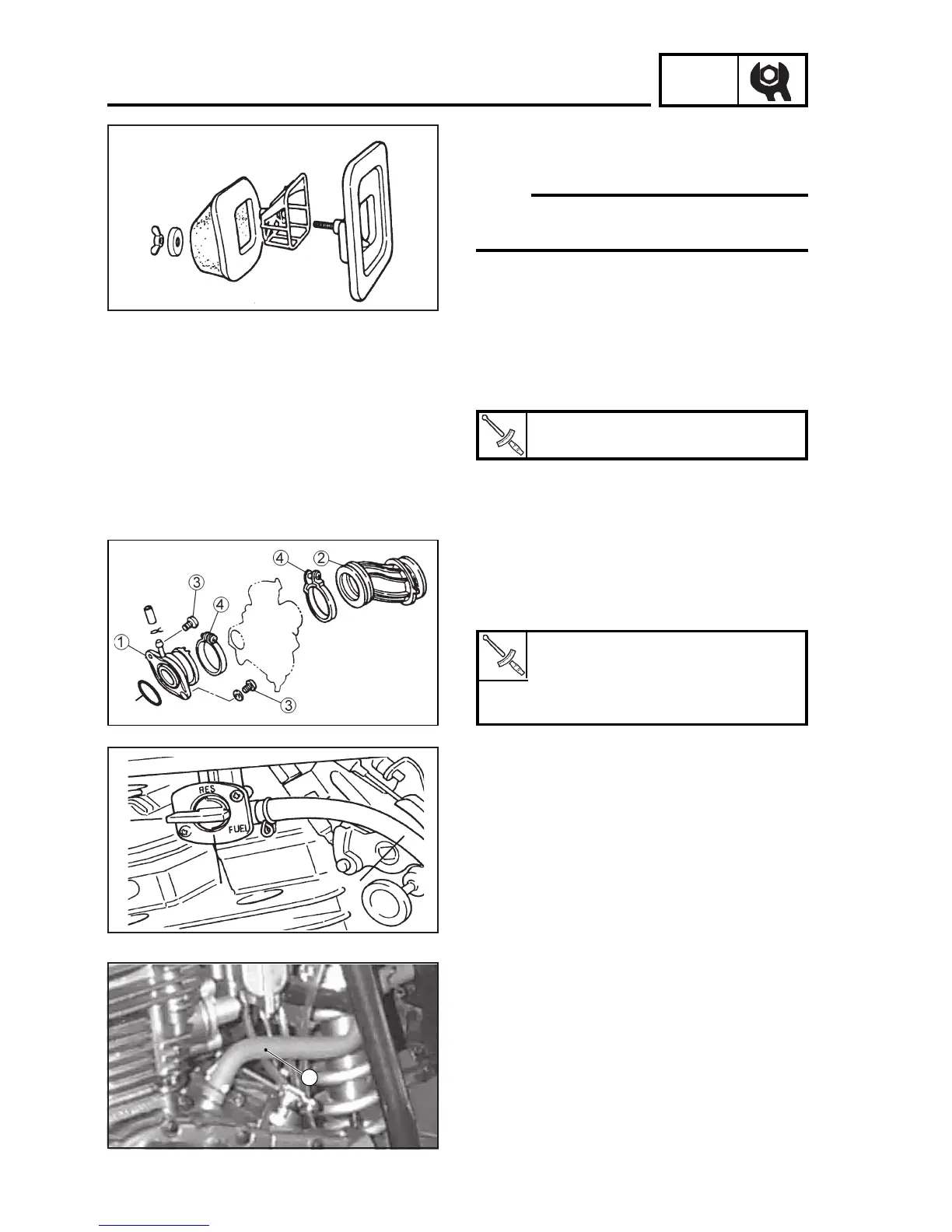

INSP
ADJUS
FUEL HOSE
CHECK
CARBURETOR CONNECTION CHECK /FUEL HOSE /
BREATHER HOSE
BREATHER HOSE CHECK
1. Check:
• Engine breather hose 1
Cracks/damage => Replace.
1. Check:
•Fuel hose 1
Cracks/damage => Replace.
6. Install:
•Air filter element, reverse the
procedures in “Remove.”
1. Check:
• Carburetor connection 1, 2
• O-Ring 5
Damage/cuts => Replace.
CARBURETOR CONNECTION CHECK
7. Install:
•Air filter box cover
See Section “SEAT, FUEL TANK AND
COVERS.”
3-26
Bolt (side cover):
7N.m (0.7 Kg.m ; 5.1 ft.lb)
Bolt 3:
10N.m (1.0 Kg.m ; 7.2 ft.lb)
Tie wrap bolt 4 :
2N.m (0.2 Kg.m ; 1.4 ft.lb)
NOTE:
• When installing the element in the
filter box, fasten it firmly in the seat.
5
1
1

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
