Yamaha ttr230 User Manual

INSP
ADJUS

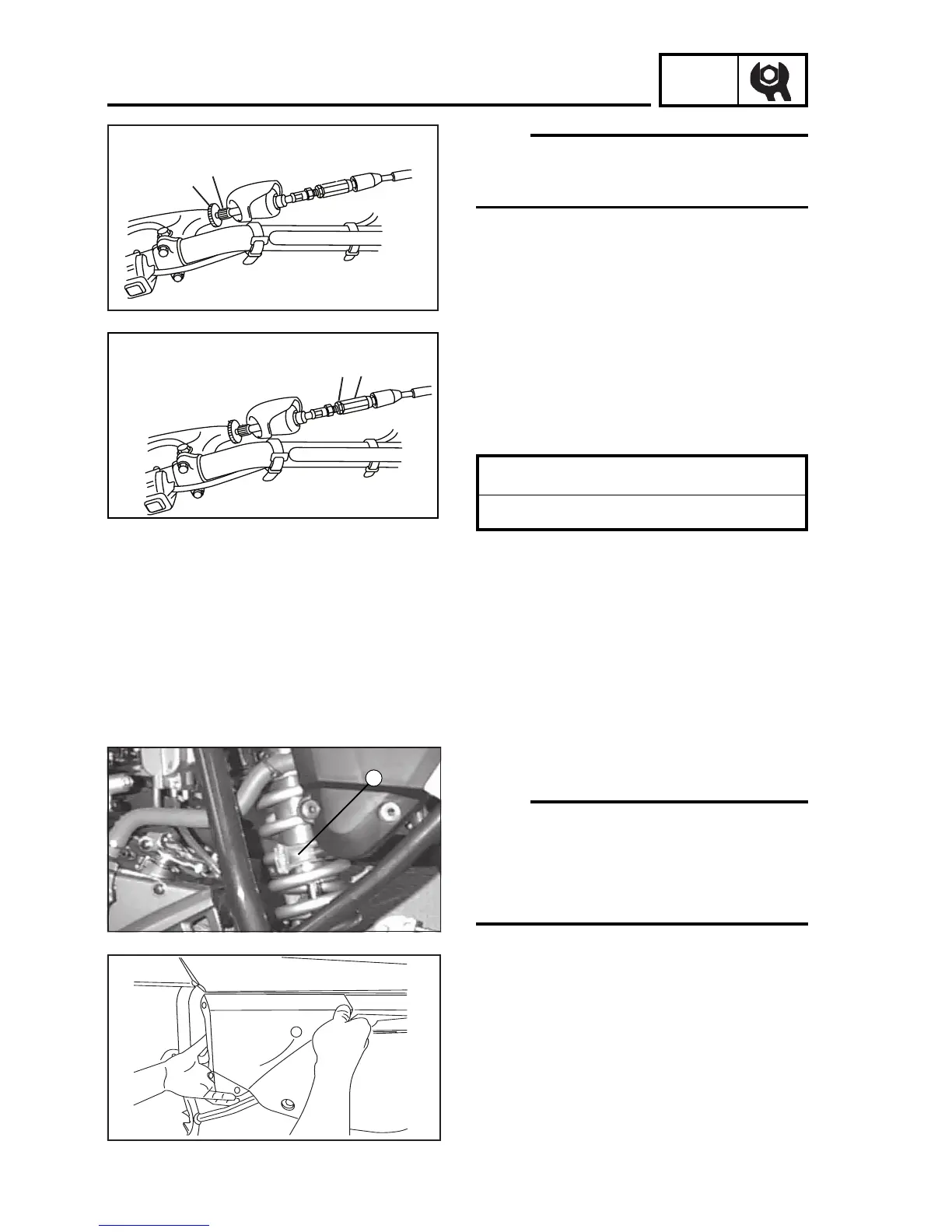

AIR FILTER CLEANING
3-24
2. Adjust:
• Clutch cable free play
1. Remove:
• Air filter box cover.
AIR FILTER CLEANING
• Tighten the lock-nut 1.
Main lever adjuster:
• Loosen the lock-nut 1
• Turn the adjuster 2 inward or outward
until establish the specified free play.
************************************
To turn inward => Increases the free play.
To turn outward => Reduces the free play.
************************************
Secondary lever adjuster:
• Loosen the lock-nut 3
• Turn the adjuster 4 inward or outward
until establish the specified free play.
• Tighten the lock-nut 3.
NOTE:
If the clutch cable free play is incorrect,
adjust it using the adjuster (close to the
clutch lever).
NOTE:
In addition to the maintenance specified in
the periodic revision table, check the checking
hose 1 under the air filter box. If dust
and/or water settle in the hose, clean the
air filter element and box.
3
4
1
2
1
3
4
1
2

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
