FRAME
6-41

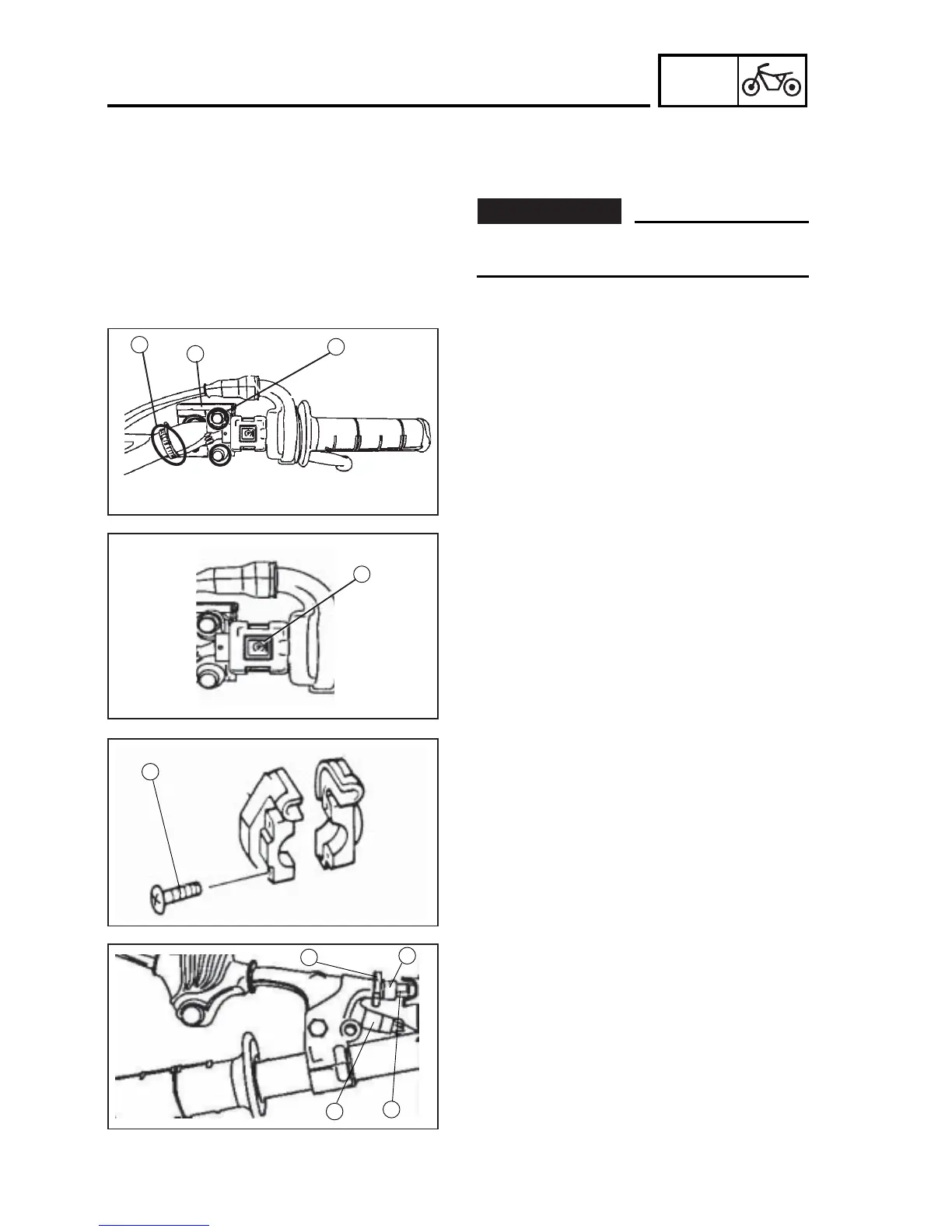

STEERING COLUMN AND HANDLE-BARS
REMOVAL
HANDLE-BARS
5. Loosen:
• Screws 1 and throttle grip
2. Remove::
• Plastic belt 1
3. Remove:
• Master cylinder screws 2
• Master cylinder 3
Support the motorcycle firmly preventing
it from falling.
VV
VV
V
WARNING
1. Place the motorcycle on a flat area.
4. Remove:
• Starting switch 4 (LD)
6. Remove:
• Plastic belt
7. Loosen:
• Lock-nut 1 (clutch cable)
• Adjuster 2 (clutch cable)
8. Remove:
• Clutch cable 3
• Clutch switch 4
2
1
3
1
4
1
2
3
4

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
