SPEC

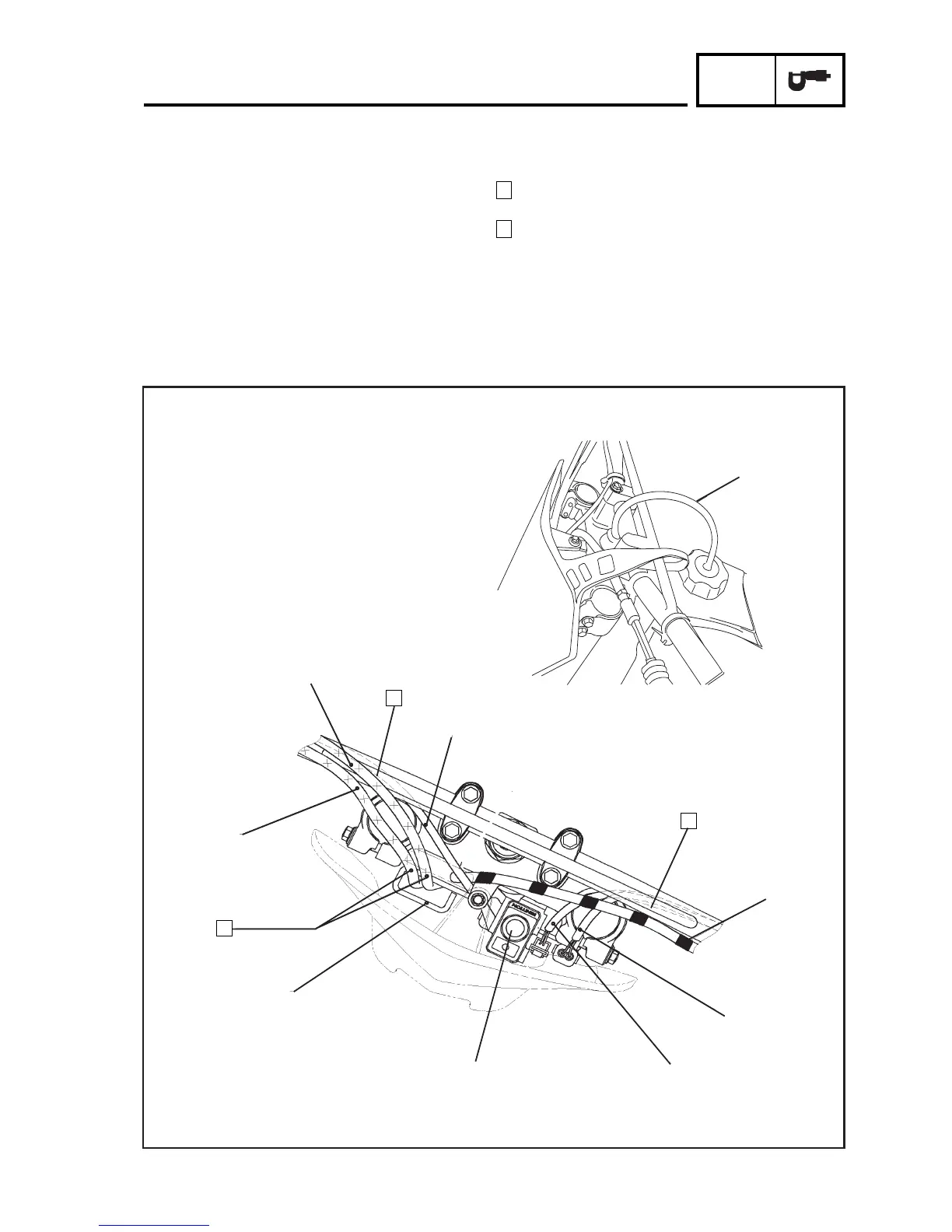

HANDLE BAR

CABLE ROUTING

1 Accelerator cable - Main

2 Accelerator cable - Return

3 Starting switch harness

4 Cable routing slot

5 Clutch cable

6 Engine stop harness

7 Clutch switch harness

8 Ignition switch

9 Breather hose

A Route the cables into the slot.

B Fasten the harnesses with the tie wrap.

2-22

Questions and Answers:

Need help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
