Yamaha ttr230 User Manual

FRAME

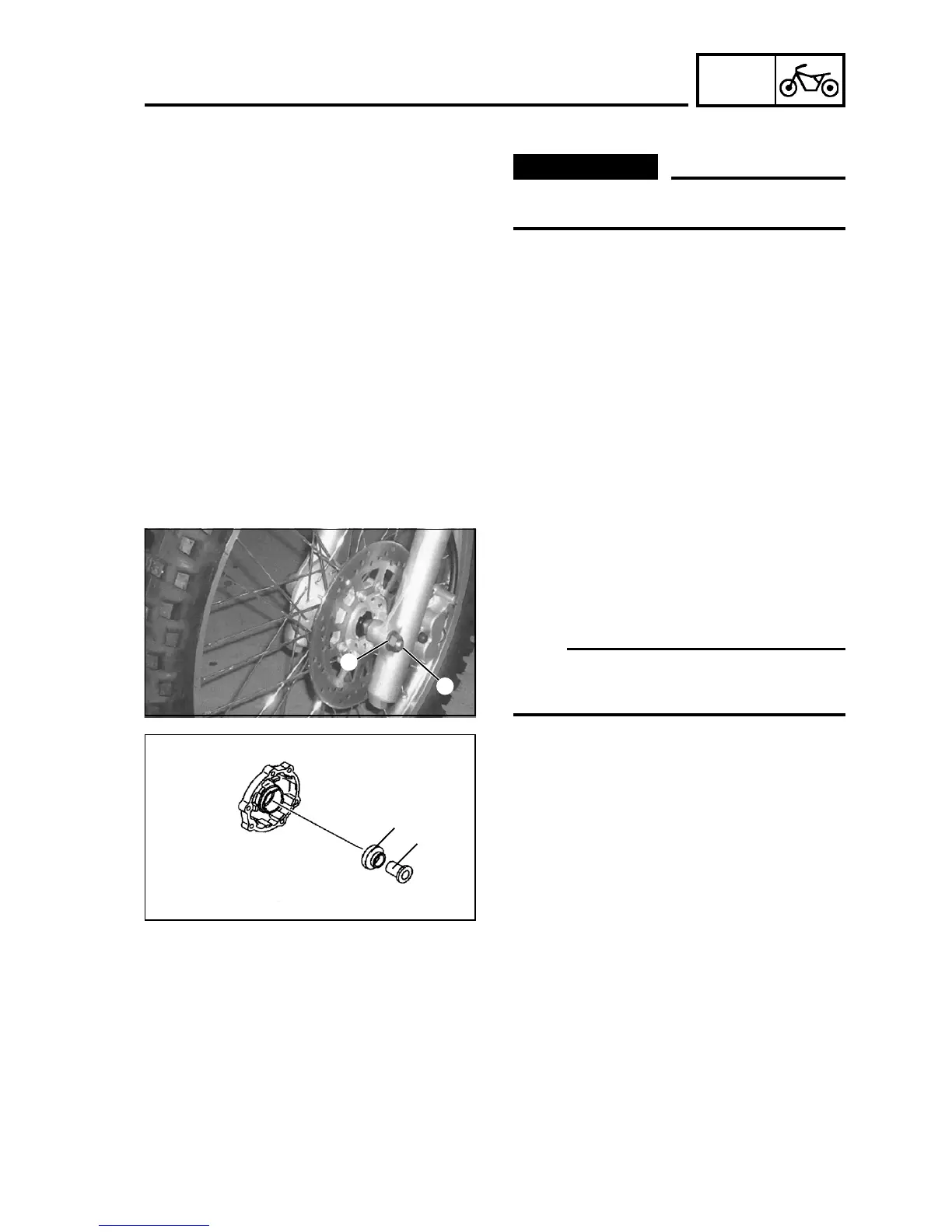

FRONT WHEEL
6-2
REMOVAL
NOTE:
Do not press the brake stem when the wheel
is out of the motorcycle. Otherwise, the
brake pads will be forced.
VV
VV
V
WARNING
Support the motorcycle firmly preventing
it from falling.
1. Place the motorcycle on a flat area
2. Lift the front wheel placing a support under
the engine.
3. Remove
• Nut 1
• Axle 2
• Front wheel
4. Romove:
• Spacer 1
• Dust protector 2
1
2
1
2

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
