Yamaha ttr230 User Manual

FRAME
FRONT BRAKE
6-17
Maximum warping:
0.3 mm
CALIPER MOUNTING
Screw (brake disc):
10 N.m (1.0 kgf.m; 7.2 ft.lb)
Use LOCTITE
®
NOTE:
Tighten the screws (brake disc) in a cross
pattern.

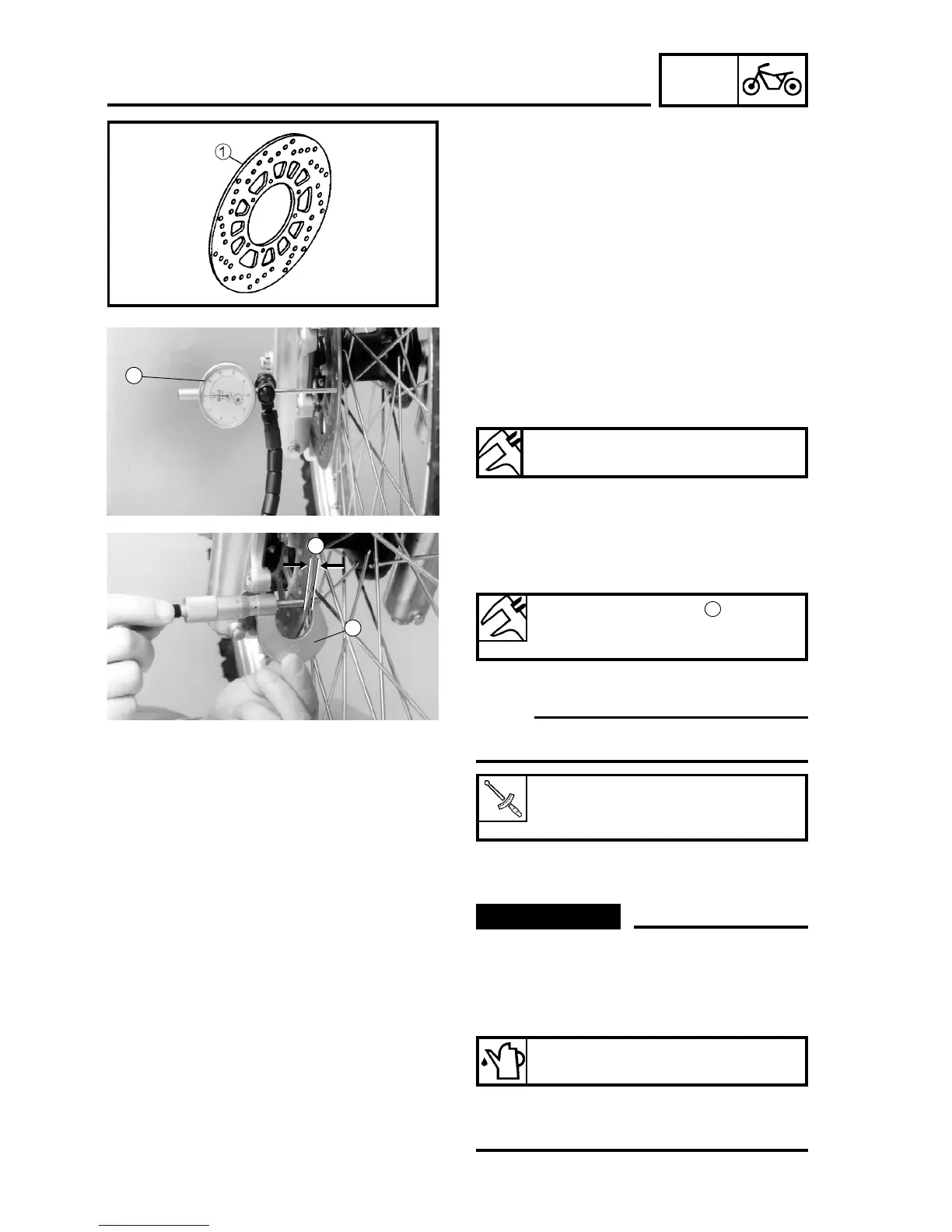

8. Check:
• Brake disc 1
Damage => Replace
9. Measure:
• Brake disc warping
Out of specification => Check for
warping
Warping = > Replace the disc.
1 Dial gage
• Brake disc thickness
Out of specification => Replace
1 Micrometer
Brake fluid:
DOT # 4
VV
VV
V
WARNING
• All internal parts should be cleaned using
new brake fluid.
• Internal parts should be lubricated with
brake fluid before being reinstalled.
• When dismounting the caliper, replace
the piston retainer and the dust protector.
1
1
a
Brake disc thickness a :
3.5 mm
<Wear limit: 3.0 mm>

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
