FRAME
STEERING COLUMN AND HANDLE-BARS
6-45
2. Check:
• Bearing 1
Wear/protuberances/damage = > Replace
the assembly.
NOTE:
Remove the excess of glue, using a clean cloth.
Replacement steps:
• Remove the grips from the handle-bars.
• Apply a thin layer of rubber glue to the
left end of the new handle-bars.
• Install the grips.
Do not try to straighten out a bent handle-
bars, since it may be impaired, resulting in
a hazardous condition.
INSPECTION
1. Check:

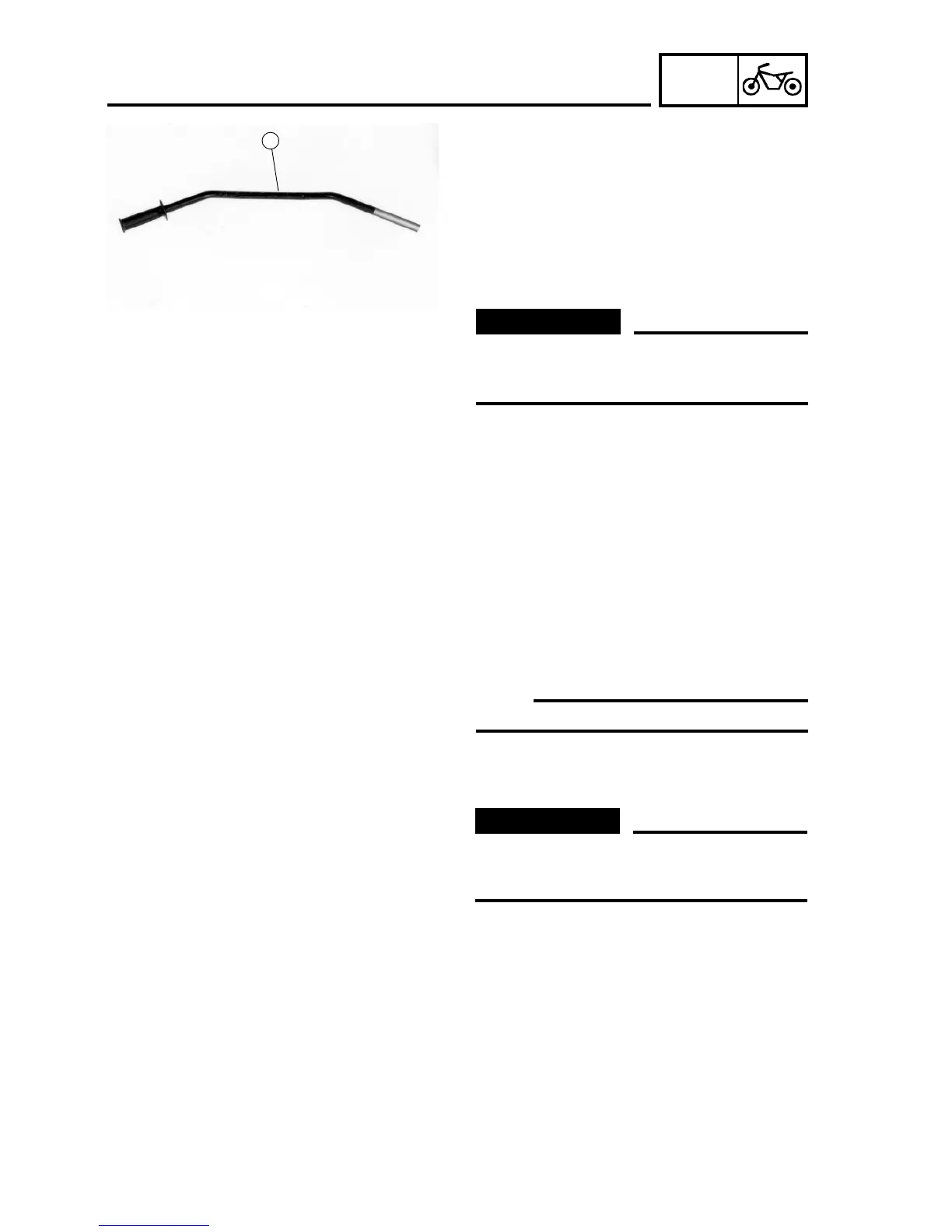

• Handle-bars 1
Warping/cracks/damage = > Replace.
VV
VV
V
WARNING
*************************************
1
Do not touch the handle-bars until the glue
is sufficiently cured in order to ensure that
the grip is firmly in place.
VV
VV
V
WARNING

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
