Yamaha ttr230 User Manual

INSP
ADJUS
NOTE:
Hold the cable end and apply some
lubricant drops.
WHEEL INSPECTION/ WHEEL SPOKE INSPECTION AND
TIGHTENING/ CABLE INSPECTION AND LUBRICATION

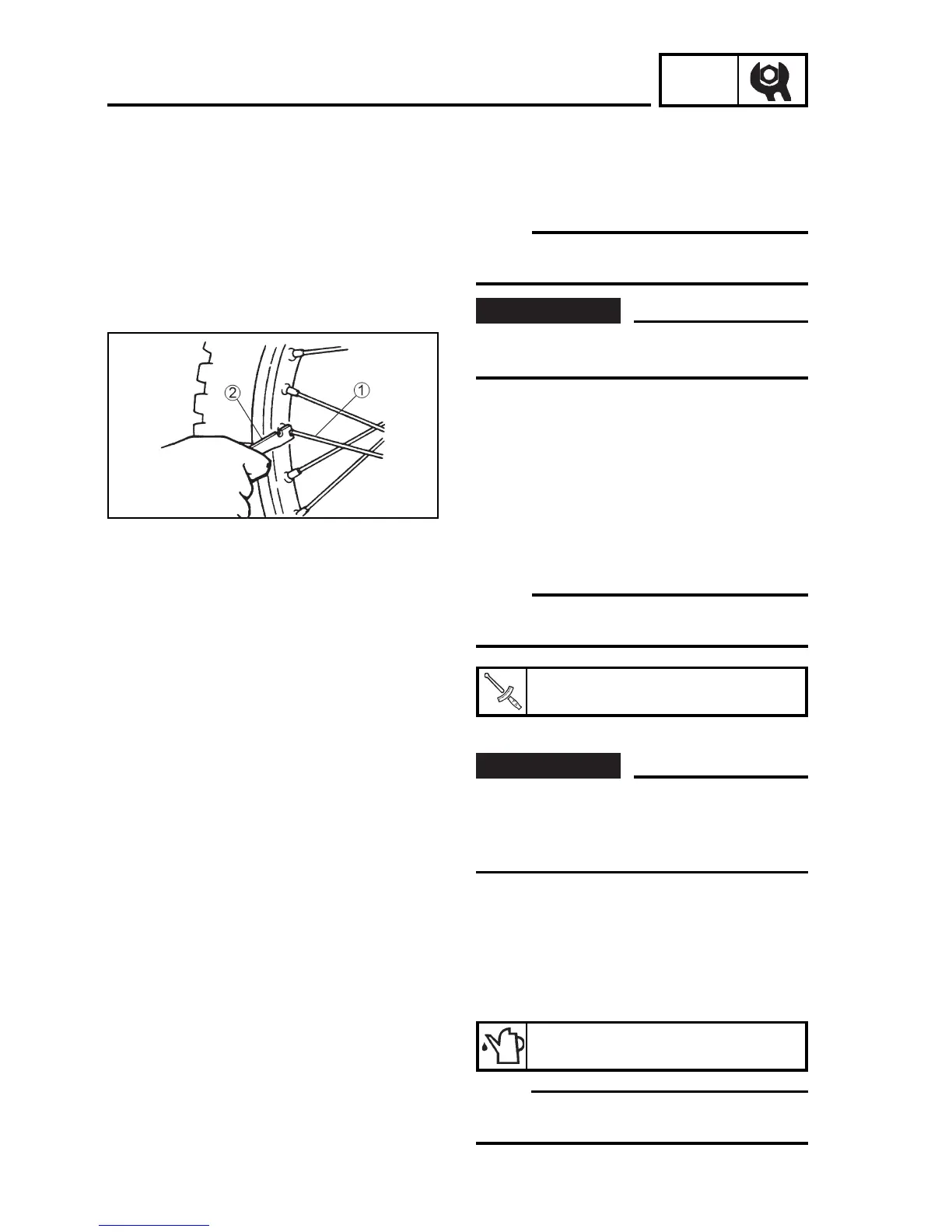

WHEEL SPOKE INSPECTION AND
TIGHTENING
1. Check:
• Spokes 1
Bent/damaged => Replace.
Loose => Tighten.
2. Tighten:
• Spokes
Spoke driver2
CABLE INSPECTION AND LUBRICATION
1. Check:
• Cable cap
Damages => Replace.
2. Check:
• Cable operation
Irregular operation => Lubricate.
3-40
WHEEL INSPECTION
1. Check:
• Wheels
Damage/warping => Replace.
Damaged cable caps may result in corrosion,
obstruction to movement of cables and,
consequently, hazardous conditions. Replace
the cables as soon as possible.
V
WARNING
Do not try to carry out repairs to the
wheels, even small repairs.
V
WARNING
Nipple:
3.25 N.m (0.32 Kg.m; 2.35 ft.Ib)
Recommended lubricant:
Engine oil SAE 10W30
NOTE:
Tighten the spokes before and after the
laying.
NOTE:
Carry out the wheel swinging after each
tire replacement.

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
