Yamaha ttr230 User Manual

FRAME
GARFO DIANTEIRO
6-30

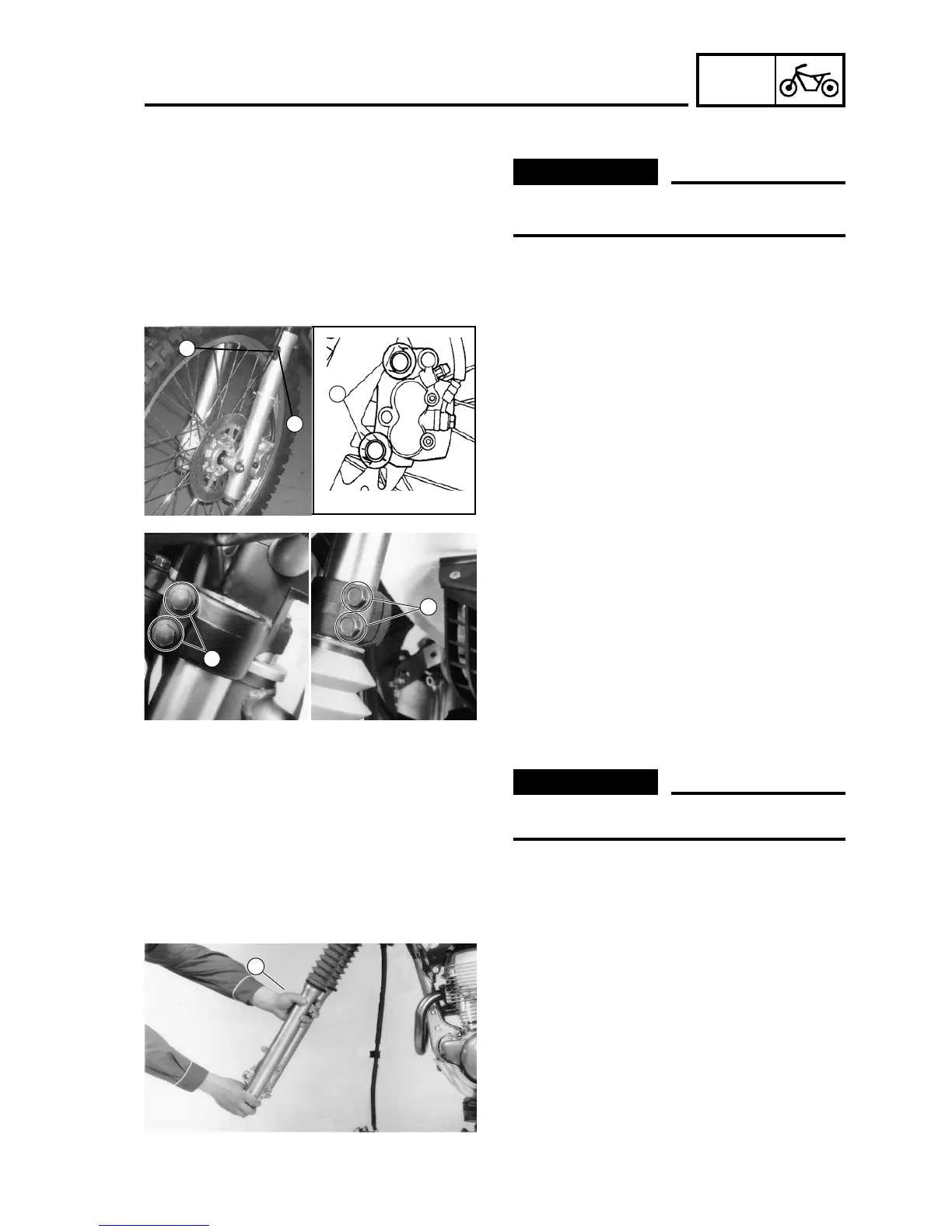

REMOVAL
VV
VV
V
WARNING
Hold the forks before loosening the board
screws.
VV
VV
V
WARNING
Support the motorcycle firmly preventing
it from falling.
1. Place the motorcycle on a flat area.
2. Lift the front wheel placing a support
under the engine.
3. Remove:
• Front wheel
See Section "REMOVAL - FRONT
WHEEL."
4. Remove:
• Screws 1 (brake hose fastener)
• Fastener 2 (brake hose)
• Screw 3 (brake caliper)
6. Remove:
• Front forks 1
5. Loosen:
• Screws 1 (upper board)
Screws 2 (lower board)
1
1
2
2
1
3

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
