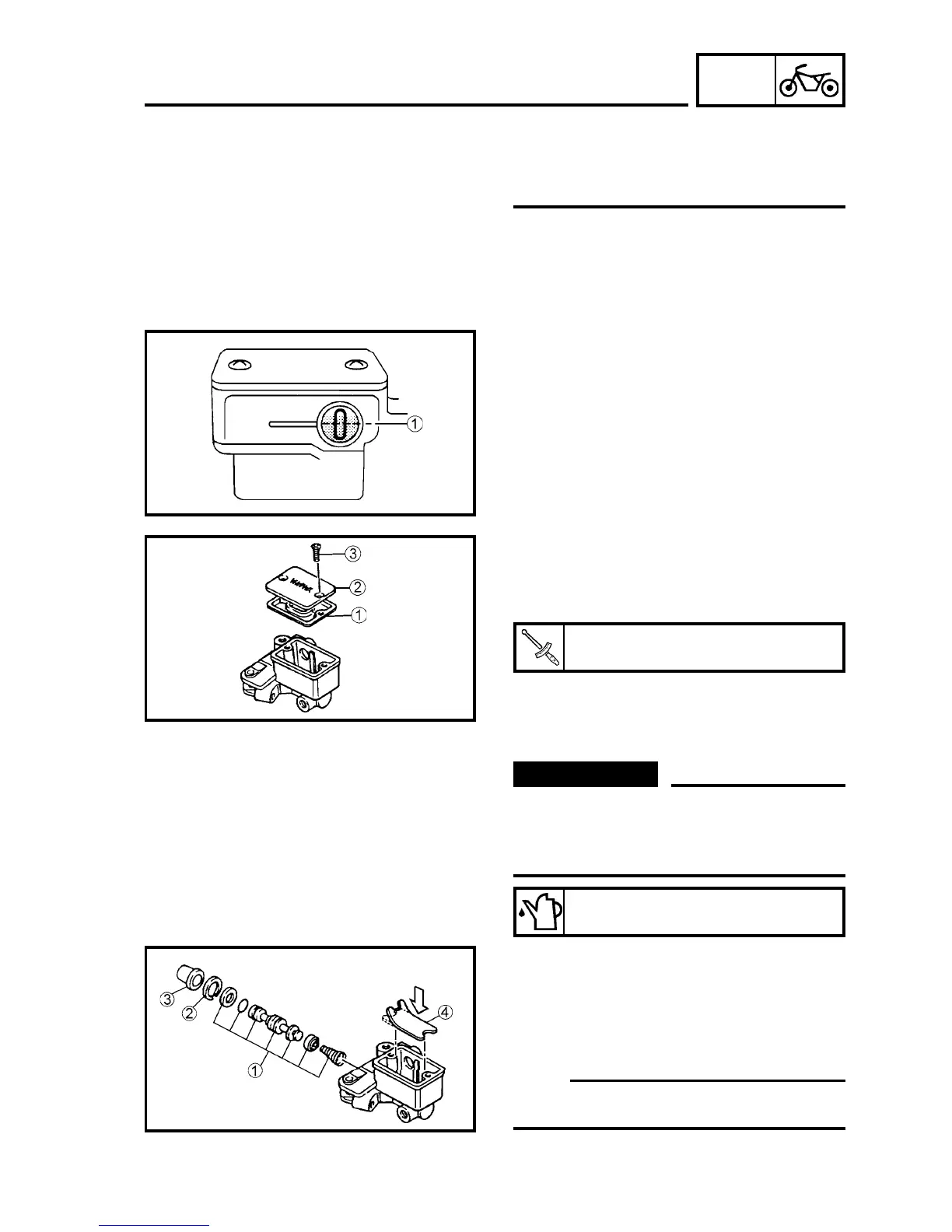

FRAME
LOWER
FRONT BRAKE
6-20
8. Air bleeding:
• Brake system
See Section "AIR BLEEDING," CHAPTER 3.
• Make sure to prevent water from entering
the master cylinder when filling it. Water
decreases the fluid boiling point and may
result in plugging.
Brake fluid:
DOT # 4
Screw (master cylinder cover):
1.5 N.m (0.15 kgf.m; 1.1 ft.lb)
MASTER CYLINDER MOUNTING
VV
VV
V
WARNING
• All internal parts should be cleaned using
new brake fluid.
• Internal parts should be lubricated with
brake fluid when installed
9. Check:
• Brake fluid level.
Brake fluid level below the "LOWER"
mark => Fill.
See Section, "BRAKE FLUID INSPECTION,"
CHAPTER 3.
1. Install
• Master cylinder kit 1
• Lock ring 2
• Dust protector 3
• Plate 4
NOTE:
When installing the plate 4 push it firmly to
the position shown in the figure.
10. Install:
• Diaphragm 1
• Master cylinder cover 2
• Screws 3

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
