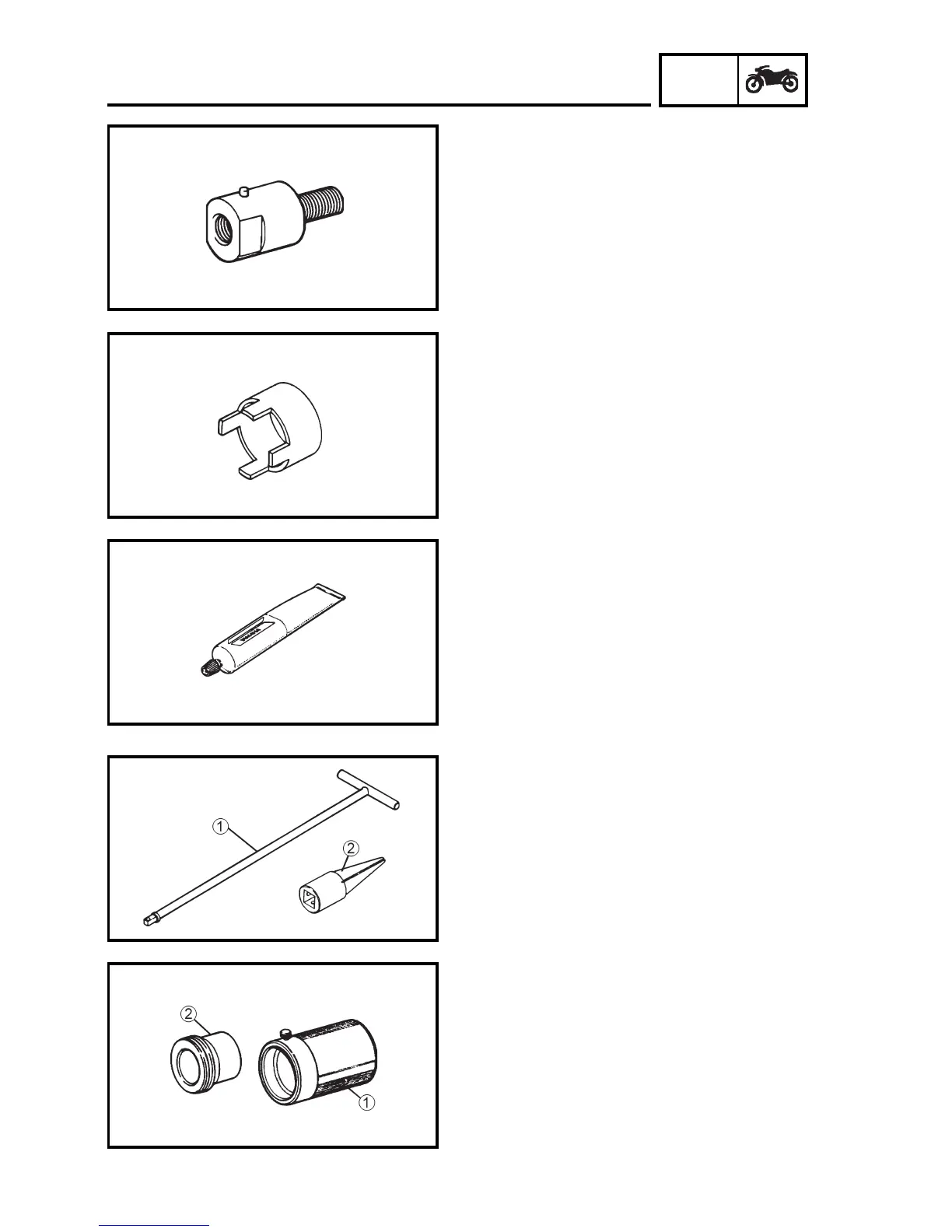

FOR FRAME SERVICES
15. Glue
Yamaha Bond nº1215
®
90890-85505
This glue is used for gluing the
crankcases.
13. Adapter
90890-01383
This tool is used for installing the
crankshaft.
SPECIAL TOOLS
1-8
14. Crankshaft spacer
90890-04081
This tool is used for installing the
crankshaft.
1. Internal tube cylinder fastener
90890-01326 - 1
Fastener
90890-01294 - 2
This tool is used for loosening and
tightening the front fork bar fastening
bolt.
2.Sliding hammer for the fork retaining
installer
90890-01367 - 1
Adapter 36mm
90890-01370 - 2
These tools are used when installing the
fork retainer.

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
