Yamaha ttr230 User Manual

SPEC

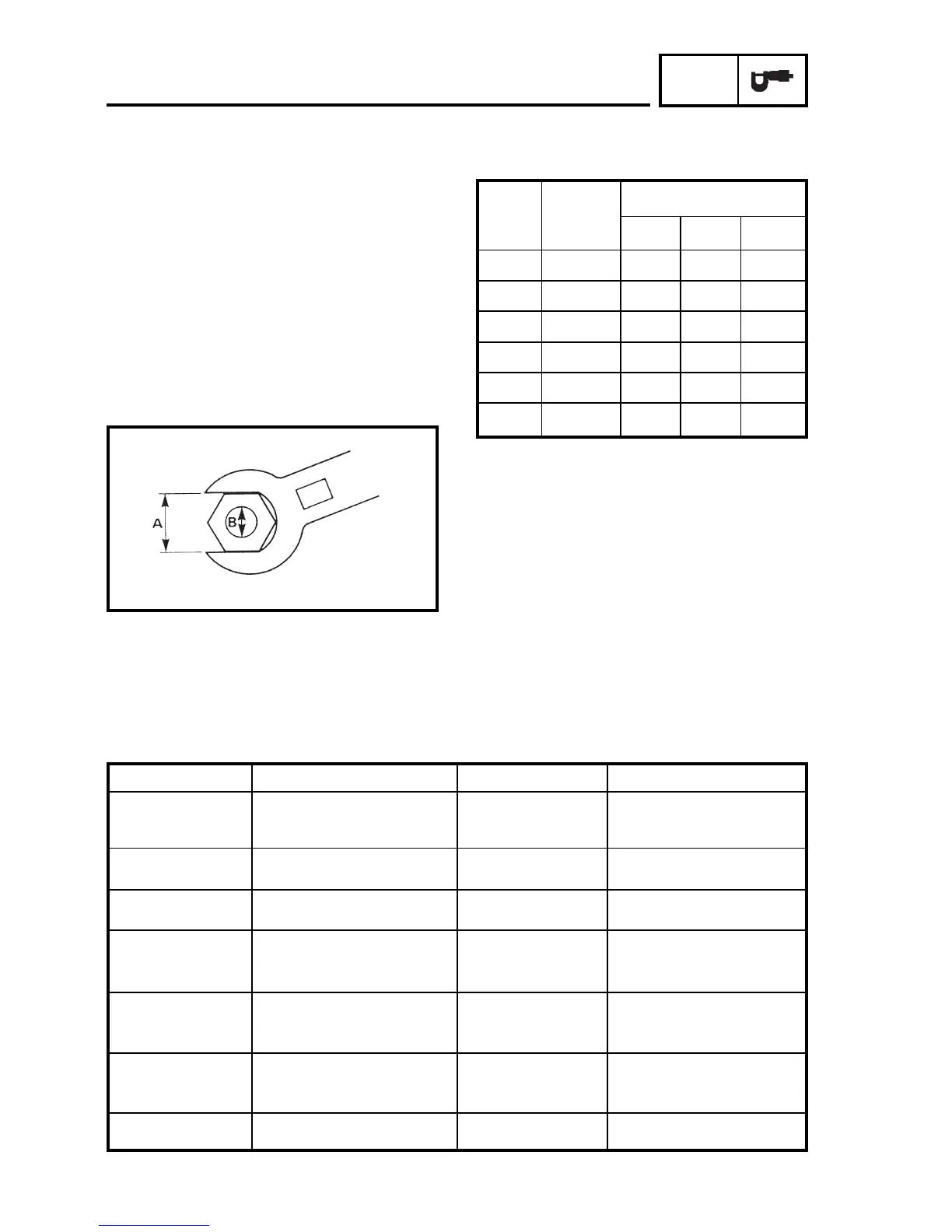

GENERAL TORQUE SPECIFICATIONS
2-17
This attachment specifies the tightening
torque for ISO Standard threads. The
torque specifications for components or
special assemblies are included in the
respective sections of this manual. To
prevent warping, tighten the assembly bo-
lts in a cross pattern and progressive sta-
ges up to the specified torque. When not
otherwise specified, the torque specifica-
tions are for clean and dry threads. The
components shall be at room temperature.
GENERAL TORQUE SPECIFICATIONS
10 mm 6 mm 6 0,6 4,3
12 mm 8 mm 15 1,5 11
14 mm 10 mm 30 3,0 22
17 mm 12 mm 55 5,5 40
19 mm 14 mm 85 8,5 61
22 mm 16 mm 130 13,0 94
N.m
General torque
specifications
A
(Nut)
B
(Bolt)
Kg.m
A: Distance between plans
B: External thread diameter
ft.lb
mm
cm
kg
N
Nm
Kgm
Pa
N/mm
L
cm
3
r.p.m.
millimeter
centimeter
Kilogram
Newton
Newton Meter
Kilogram Meter
Pascal
Newton/millimeter
Liter
cubic centimeter
Revolutions per minute
10
-3
meters
10
-
² meters
10
3
grams
Kg x m/sec ²
N x Meter
kg x m
N/m²
N/mm
—
—
—
Length
Length
Weight
Force
Torque
Torque
Pressure
Spring coefficient
Volume
or capacity
Engine speed
Units
Reading Definition Measure

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
