FRAME

STEERING COLUMN AND HANDLE-BARS

6-42

1. Place the motorcycle on a flat area

2. Lift the front wheel placing a support under

the engine.

3. Remove:

• Handle-bars

See Section "REMOVAL - HANDLE-

BARS."

4. Remove:

• Fuel tank

See Section "SEAT, FUEL TANK AND

COVERS," CHAPTER 3.

5. Remove:

• Front wheel

See Section "REMOVAL - FRONT

WHEEL."

Support the motorcycle firmly preventing

it from falling.

STEERING COLUMN

10. Remove:

• Handle-bars

• Throttle grip

WARNING

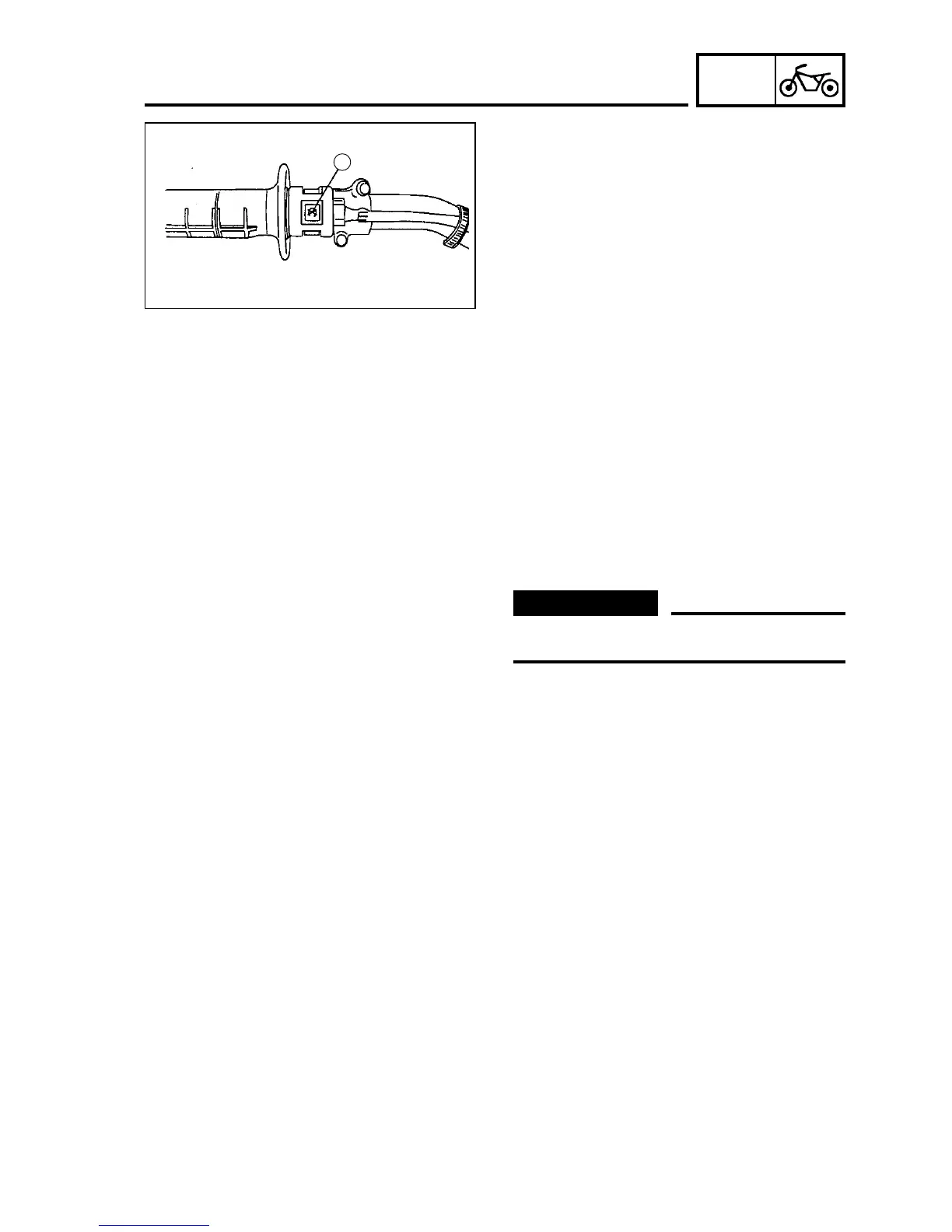

9. Remove:

• Engine stop switch 1
