SPEC

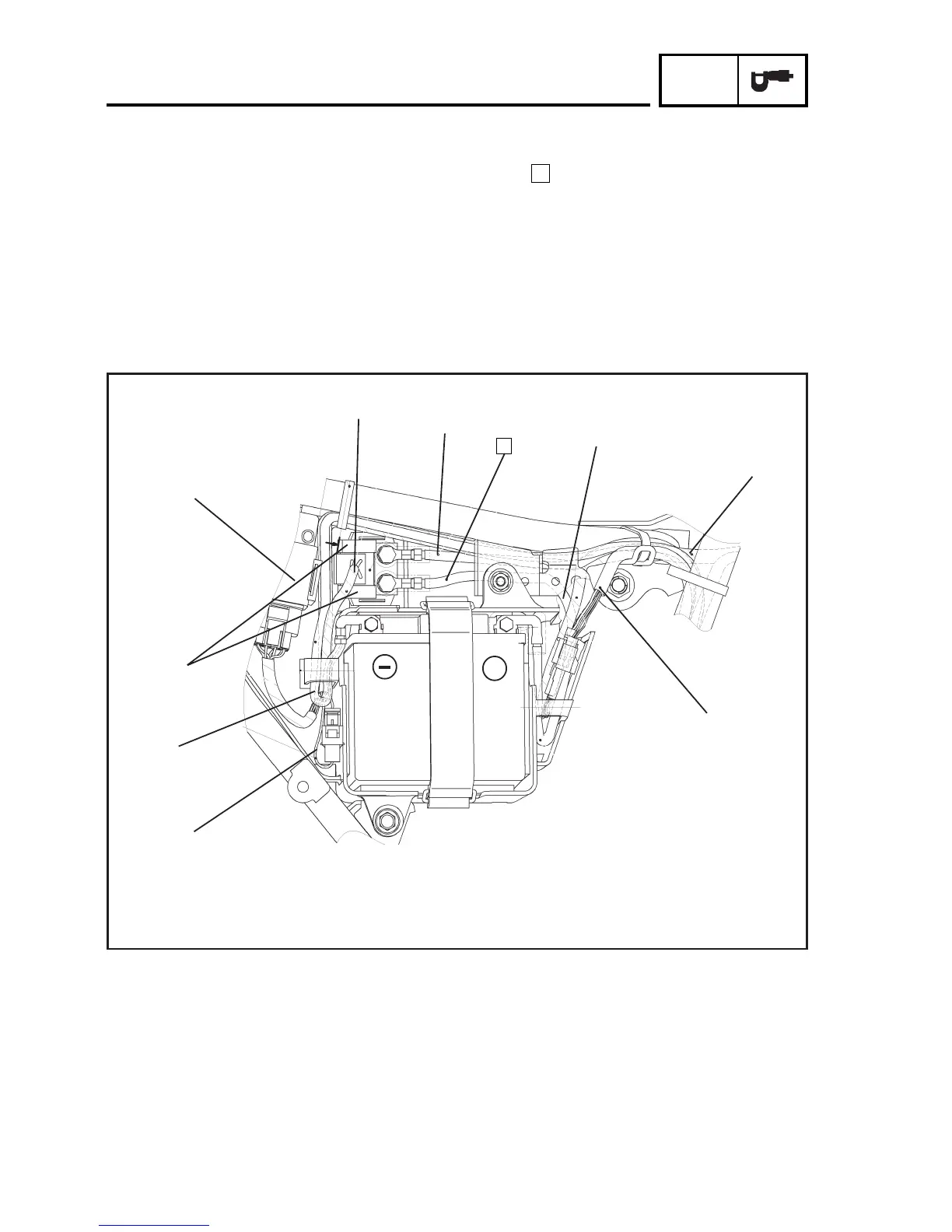

CABLE ROUTING
1 CDI Unit
2 Negative cable (ground)
3 Harness negative wire
4 Positive cable
5 AC magnet harness
6 Main harness
7 Starting motor cable
8 Starting relay harness
9 Safety fuses
BATTERY AND COMPONENTS
1
9
2
3
6
5
A
7
8
4
2-27
A Starting relay connection with the
battery positive pole.
+
