Yamaha ttr230 User Manual

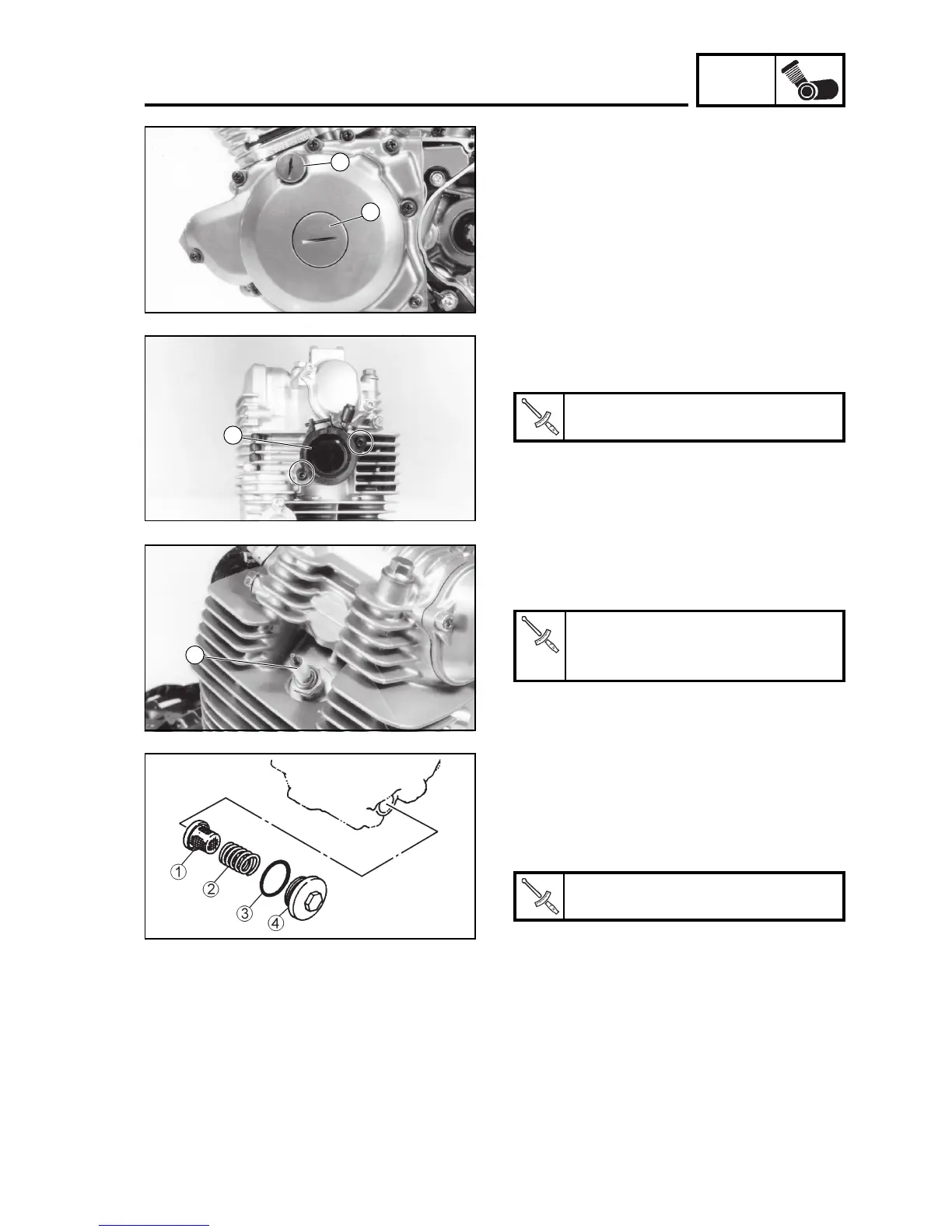

ENGINEENGINE MOUNTING AND ADJUSTMENTS
18. Install:
• Cover 1
• Cover 2
REINSTALLING THE ENGINE
Reverse the removal process. Observe the
following:
21. Install:
• Oil strainer 1
• Spring 2
• O-ring 3
• Drain plug 4
20. Install:
• Spark plug 1
19. Install:
• Intake manifold 1
4-83
2
1
1
Bolt (intake manifold)
10N.m (1.0 Kg.m; 7.2 ft.Ib)
1
Spark plug:
17,5N.m (1,75 Kg.m; 381,00
cm.Ib)
Drain plug:
43N.m (4.3 Kg.m; 31 ft.Ib)

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
