ENGINE
9 Spring
0 Magnet rotor
A Starting gear 1
B Shaft
C Spacer
D Loading coil
E Stator
F Pulse coil
1Camshaft chain
2 Belt guide (intake)
3 Key
4 Washer
5 Starting gear 2
6 One-way gear
7 Dowel pin
8 Spring cover

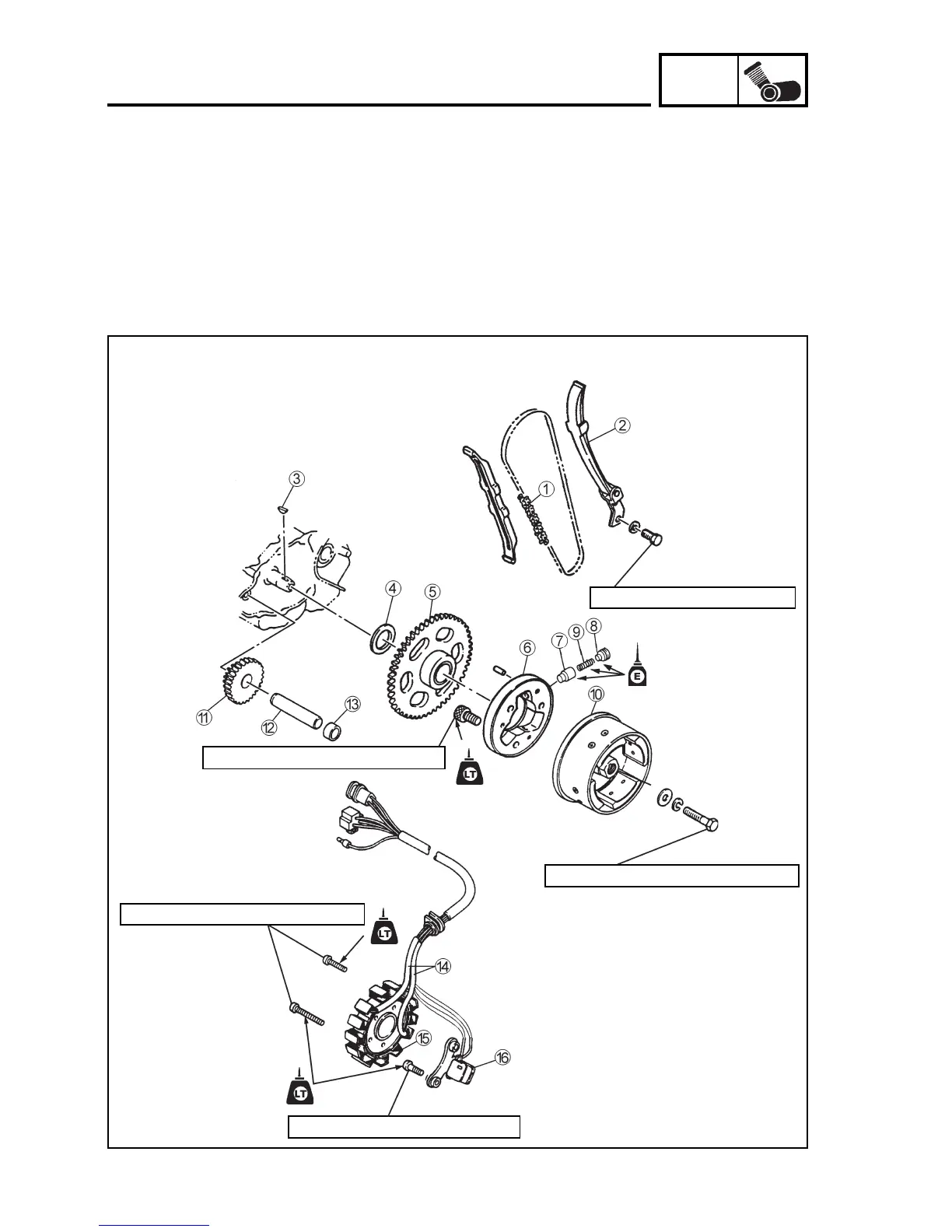

MAGNET ROTOR AND STARTING GEARS
ENGINE MOUNTING AND ADJUSTMENTS
4-72
10 N.m (1,0 Kg.m ; 219,46 cm.lb)
8 N.m (0.8 Kg.m ; 5.8 ft.lb)
30 N.m (3,0 Kg.m ; 670,56 cm.lb)
50 N.m (5,0 Kg.m ; 1.097,28 cm.lb)
10 N.m (1,0 Kg.m ; 219,46 cm.lb)

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yamaha ttr230 and is the answer not in the manual?

Yamaha ttr230 Specifications

General IconGeneral
Engine Type223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke70.0mm x 58.0mm
Compression Ratio9.5:1
IgnitionCDI
TransmissionConstant-mesh 6-speed; multiplate wet clutch
Final DriveChain
Rear SuspensionSingle shock; 8.7-in travel
Front Tire80/100-21
Rear Tire100/100-18
Length81.3 in
Width31.5 in
Seat Height34.3 in
Wheelbase54.5 in
Ground Clearance11.6 in
Front SuspensionTelescopic fork
Rear BrakeDrum
