FRAME

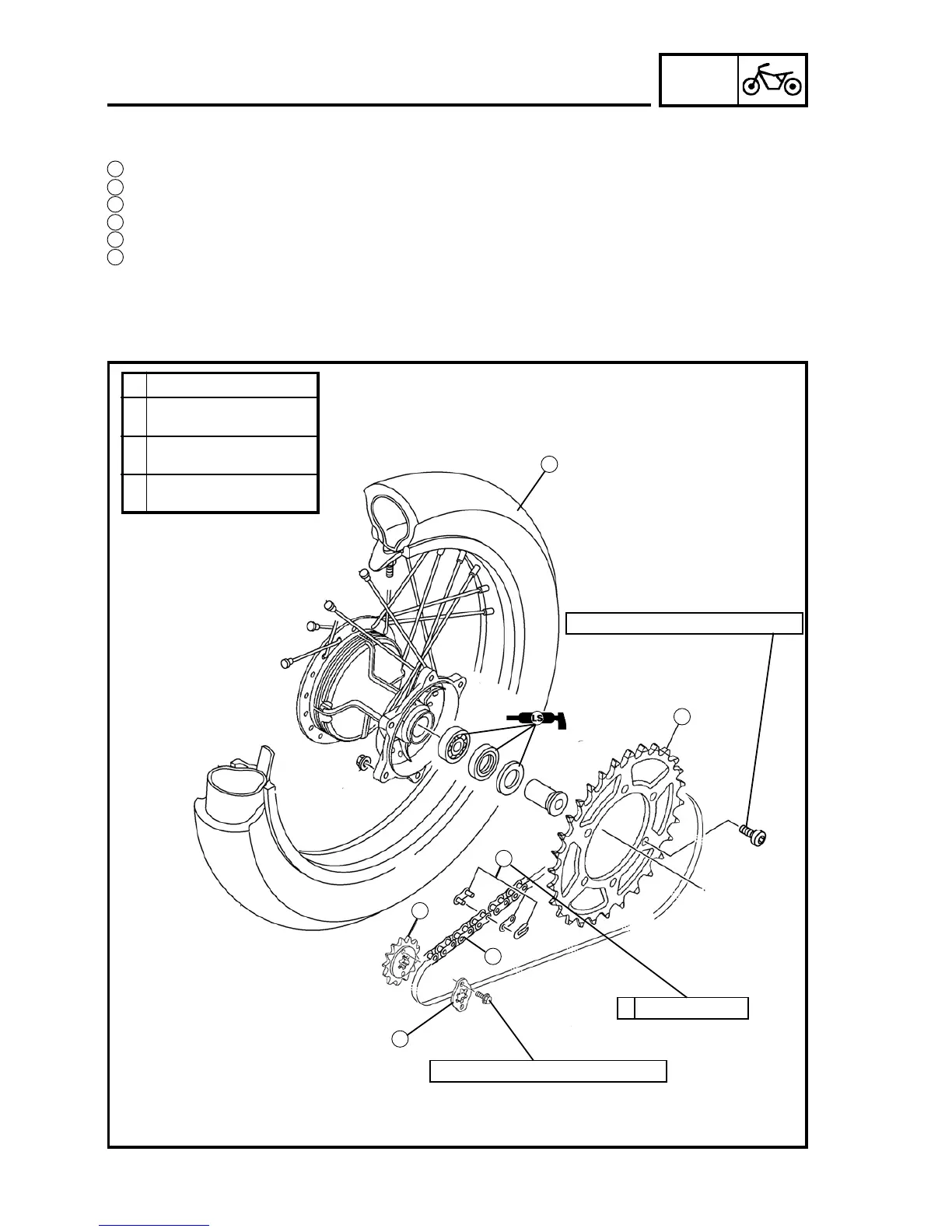

TRANSMISSION RATIO

6-63

TRANSMISSION RATIO

Rear wheel

Sprocket

Chain seam

Transmission chain

Pinion gear fastener

Pinion gear

10N.m (1.0Kgf.m ; 7.2 ft.lb)

E USE A NEW ONE

34.5 N.m (3.4Kgf.m ; 25 ft.lb)

Transmission chain

Type:

520V2

Number of links:

106

Chain free play:

45 ~ 60 mm
